3
tions described in your PC's manual regarding
static electricity discharge at all times when work-
ing with your PC.
1. Turn off the computer
2. Hold the PCMCIA Ethernet adapter with
the 68-pin female PCMCIA connector fac-
ing an available PCMCIA Type II slot (refer
to Figure 1-A or 1-B).
To
PCMCIA
Type 2.0
Slot
Female Media
Coupler connector 68-pin female
PCMCIA connector
To Hub
or

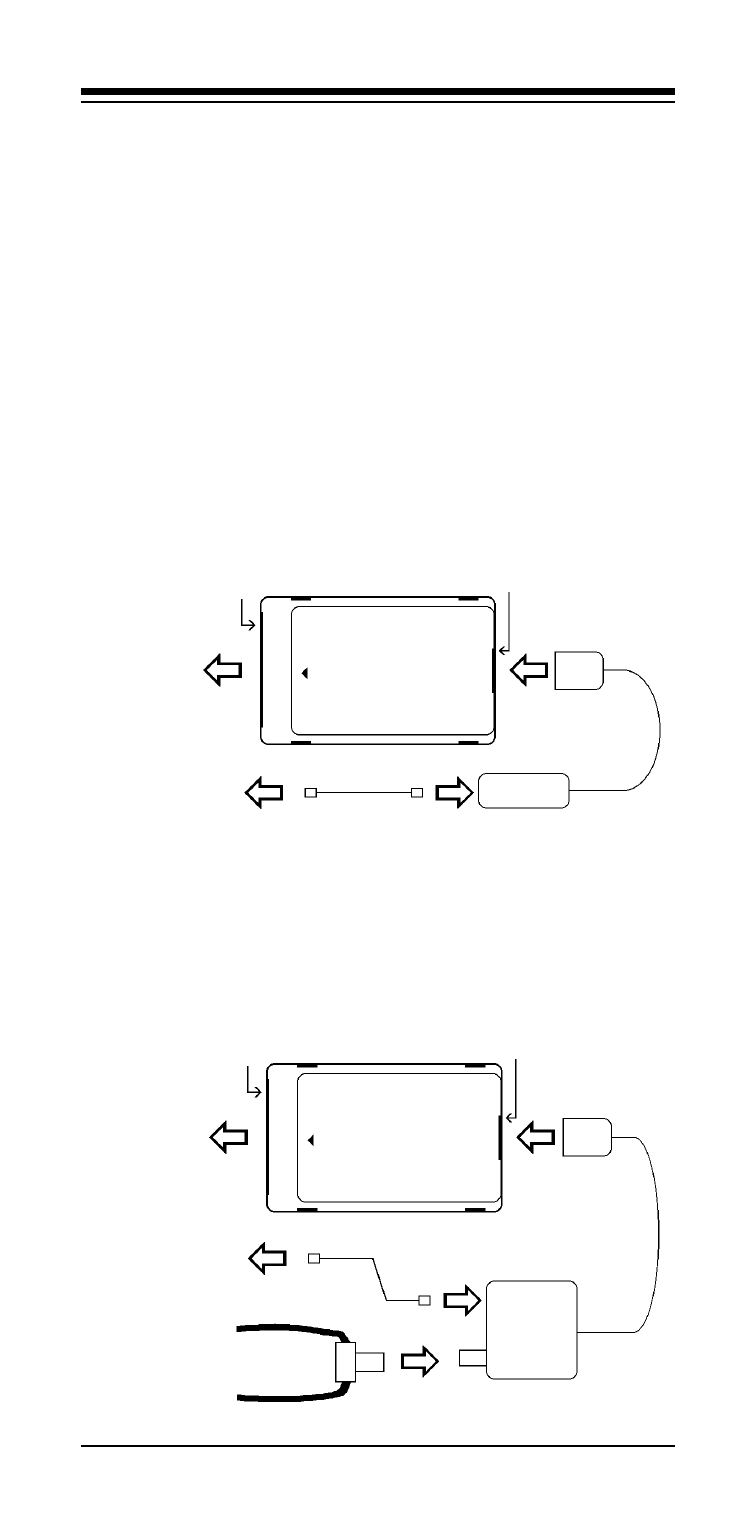

Figure 1-B Adapter with
10Base-2/10Base-T Coupler
Thin Coax Cable
10Base-2/10Base-T Media Coupler
To Hub
68-pin female
PCMCIA connector Female Media
Coupler connector
To
PCMCIA
Type 2.0
Slot
Figure 1-A Adapter with
10Base-T Coupler
10Base-T Media Coupler
