McIntosh MC1.2KW User Manual

Page 7

Caution: The Loudspeaker Negative Connections are above

chassis ground. Do not combine any connections to-

gether, ground them or connect with another MC1.2KW.

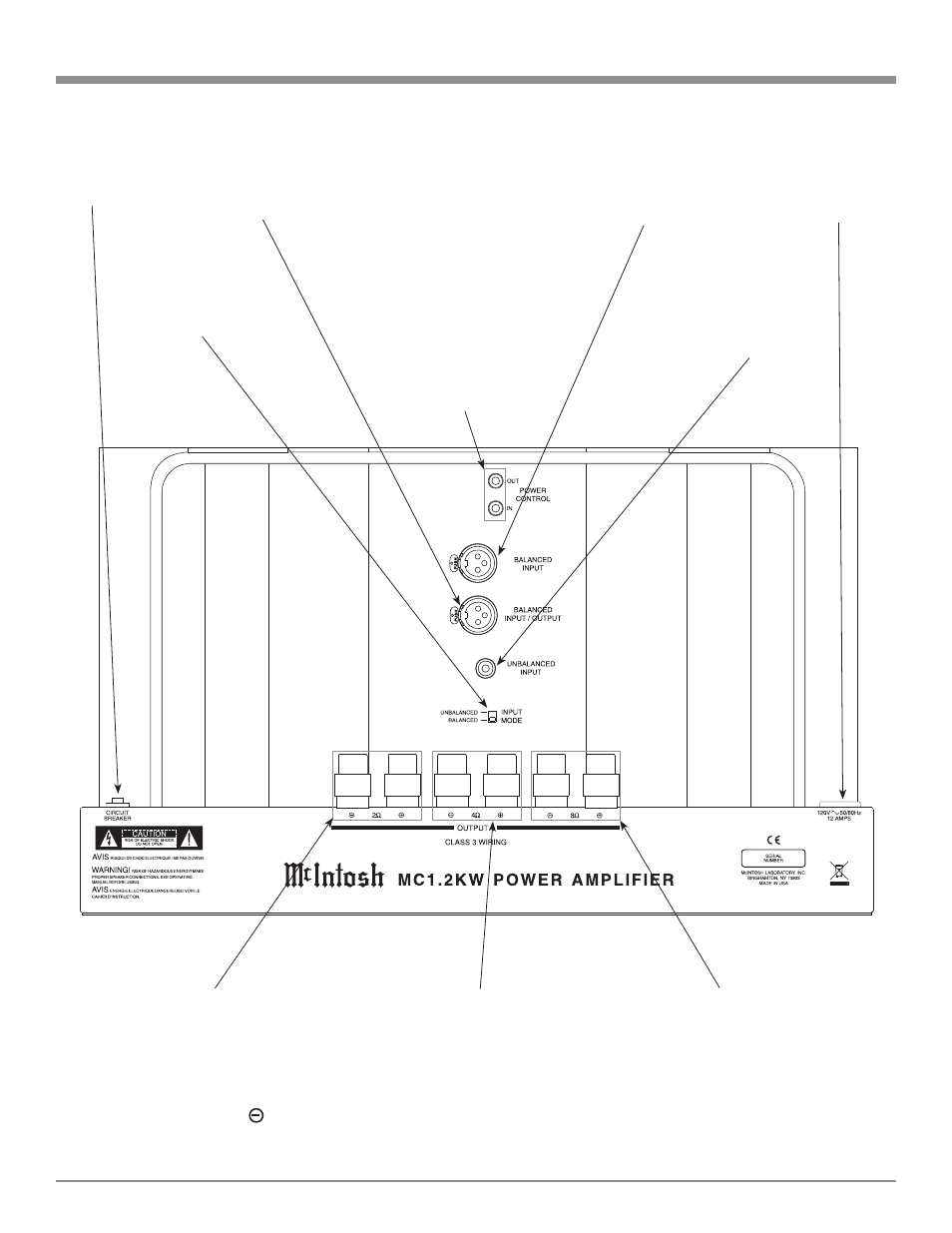

Rear Panel Connections and Switch

Connect the MC1.2KW

power cord to a live AC

outlet. Refer to the rear

panel to determine the

correct voltage

Circuit Breaker,

press to reset if

the amplifier will

not power up

POWER CONTROL IN

receives turn On/Off sig-

nal from a McIntosh com-

ponent and the POWER

CONTROL OUT sends a

turn On/Off signal to the

next McIntosh Compo-

nent

UNBALANCED INPUT

for an audio cable from a

Preamplifier or A/V Con-

trol Center audio output

INPUT MODE switch

selects between balanced

or unbalanced input

BALANCED INPUT

for an audio cable

from a Preamplifier

or A/V Control Cen-

ter audio output

BALANCED INPUT

/ OUT-

PUT for an audio cable from a

Preamplifier

output or to connect

an audio cable onto the next

Power Amplifier input

This Balanced connector may be used as an Input ONLY

when connected to a McIntosh C1000 Preamplifier. For

all other connections use only as an Output.

OUTPUT Connections

for 2 ohm Loudspeaker

OUTPUT Connections

for 4 ohm Loudspeaker

OUTPUT Connections

for 8 ohm Loudspeaker
