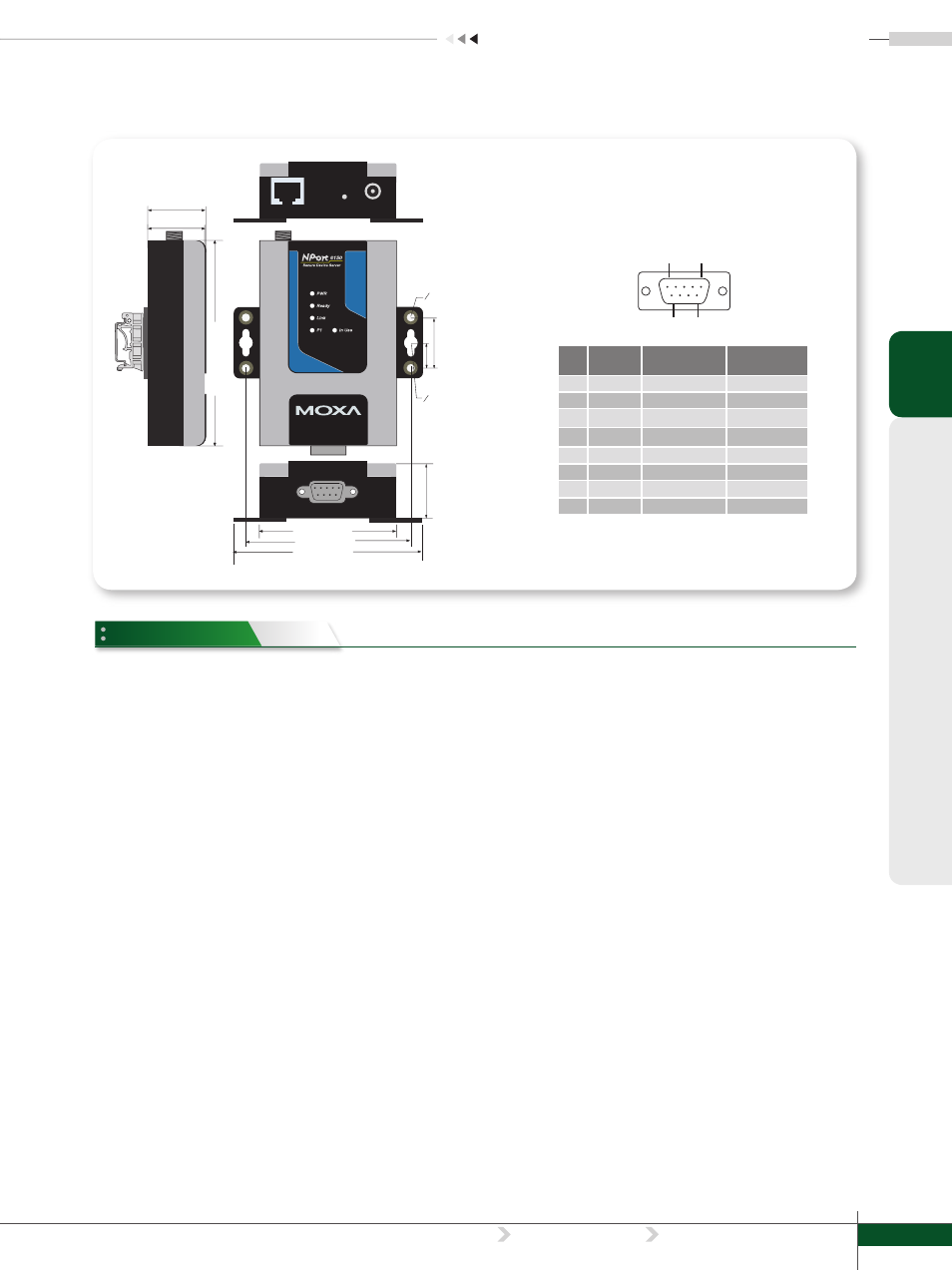

Dimensions
(unit = mm)
Specifications
LAN
Ethernet: 1 10/100 Mbps, RJ45
Protection: Built-in 1.5 KV magnetic isolation
Serial
No. of Ports: 1
Interface: RS-232/422/485, DB9 (Male)
Serial Communication Parameters
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bit(s): 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
Speed: 50 bps to 921.6 Kbps
Console Ports: RS-232 console
Software Features
Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP,
HTTP, SMTP
Utilities: NPort Search Utility for Windows 95/98/ME/NT/2000/
XP/2003/Vista
Security Protocols: DES, 3DES, AES, Radius, Local,PAP, CHAP
OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/XP x 64/
2003 x 64 COM driver, Linux Real TTY driver, Unix
Configuration: Web/serial/Telnet console
Power Requirements
Power Input: 12 to 48 VDC
Mechanical Specifications
Material: Aluminum (1 mm)
Gross Weight: 700g
Environment
Operating Temperature:
0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature:
-20 to 85°C (-4 to 185°F), 5 to 95%RH
Regulatory Approvals
EMC:
CE: EN55022 Class A/EN55024
FCC: FCC Part 15 Subpart B, Class A
Safety:
UL: UL60950-1
TÜV: EN60950-1
Warranty: 5 years
MTBF: 231709
PIN RS- RS-4/4-wire
RS-48
-wire RS-48
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR --- ---
7 RTS --- ---
8 CTS ---
1
9
100.4 mm (3.95 in)
28 mm (1.10 in)
29 mm (1.14 in)
O 3.2 mm
(0.13 in)
O 7 mm
(0.28 in)
12.45 mm
(0.49 in)
24.9 mm
(0.98 in)
90 mm (3.54 in)
79 mm (3.11 in)
67 mm (2.64 in)
27 mm (1.06 in)
DB9 (Male) RS-, RS-4,
/4-wire RS-48 port
4
