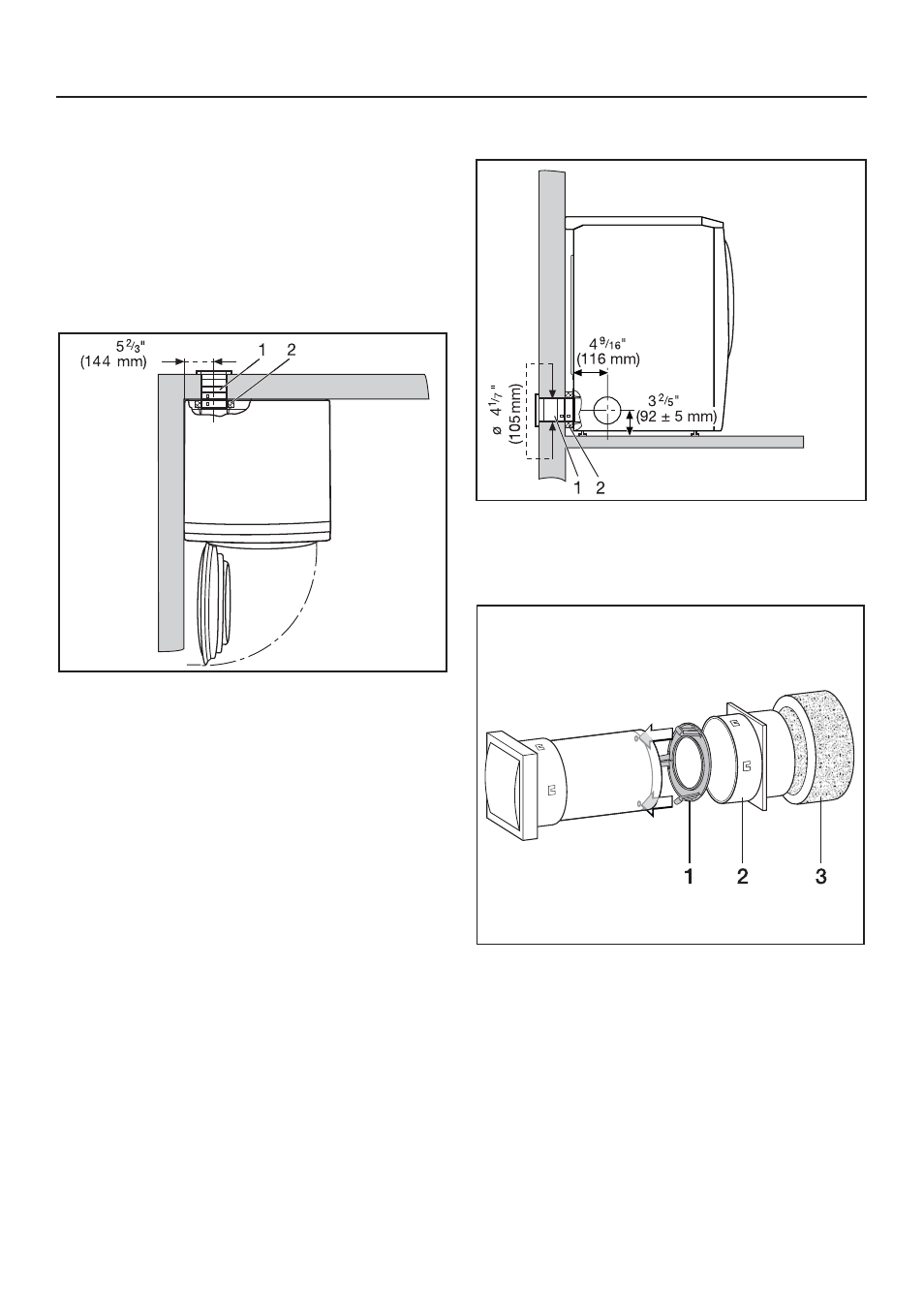

Direct wall connection
Necessary materials:
– a wall pipe
– flexible foam gasket
Dryer top view
1 Wall pipe
2 Flexible foam gasket
Dryer side view
1 Wall pipe
2 Flexible foam gasket
^ Only required with side exhaust vent
connection (left or right) : Plug the
restriction insert 1 into the wall pipe.
^ Connect the flexible foam gasket 3 to
the wall pipe connector 2.
^ Push the dryer to the wall.
Ducting
