Ducting – Miele T 9822 User Manual
Page 22

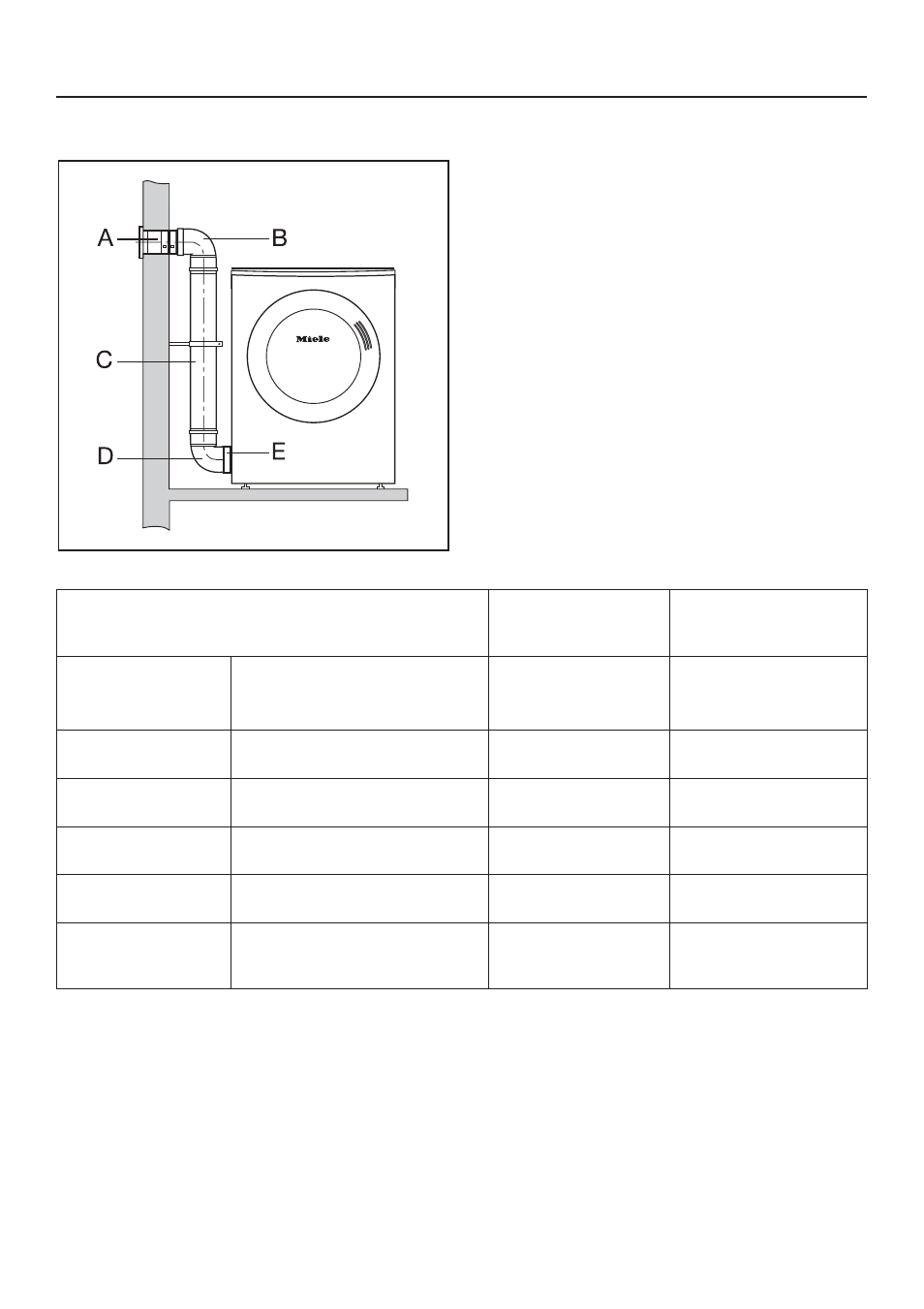

Example
Rigid pipe
Duct length
ft
Duct length
m
A
Wall duct with louvered
wall vent
12’ 5"
3.8 m
B
90° bend
2’ 4"
0.7 m
C
20" (0.5 m) rigid pipe
1’ 7"
0.5 m
D
90° bend
2’ 4"
0.7 m
E
left / right vent opening
3' 3"
1.0 m
Total duct
length
18’ 8"
5.7 m
The total duct length is less than 33 feet (10 m), so a duct diameter of 4" (100 mm)
with adapter is sufficient.
Ducting
22
