Philips Magnavox LCD TV 40MF430B - Manual (Page 7)

English
7
EN
INTR
ODUCTION
PREP
ARA
TION
W
ATCHING TV
OPTIONAL SETTING
TR
OUBLESHOO
TING
INFORMA
TION

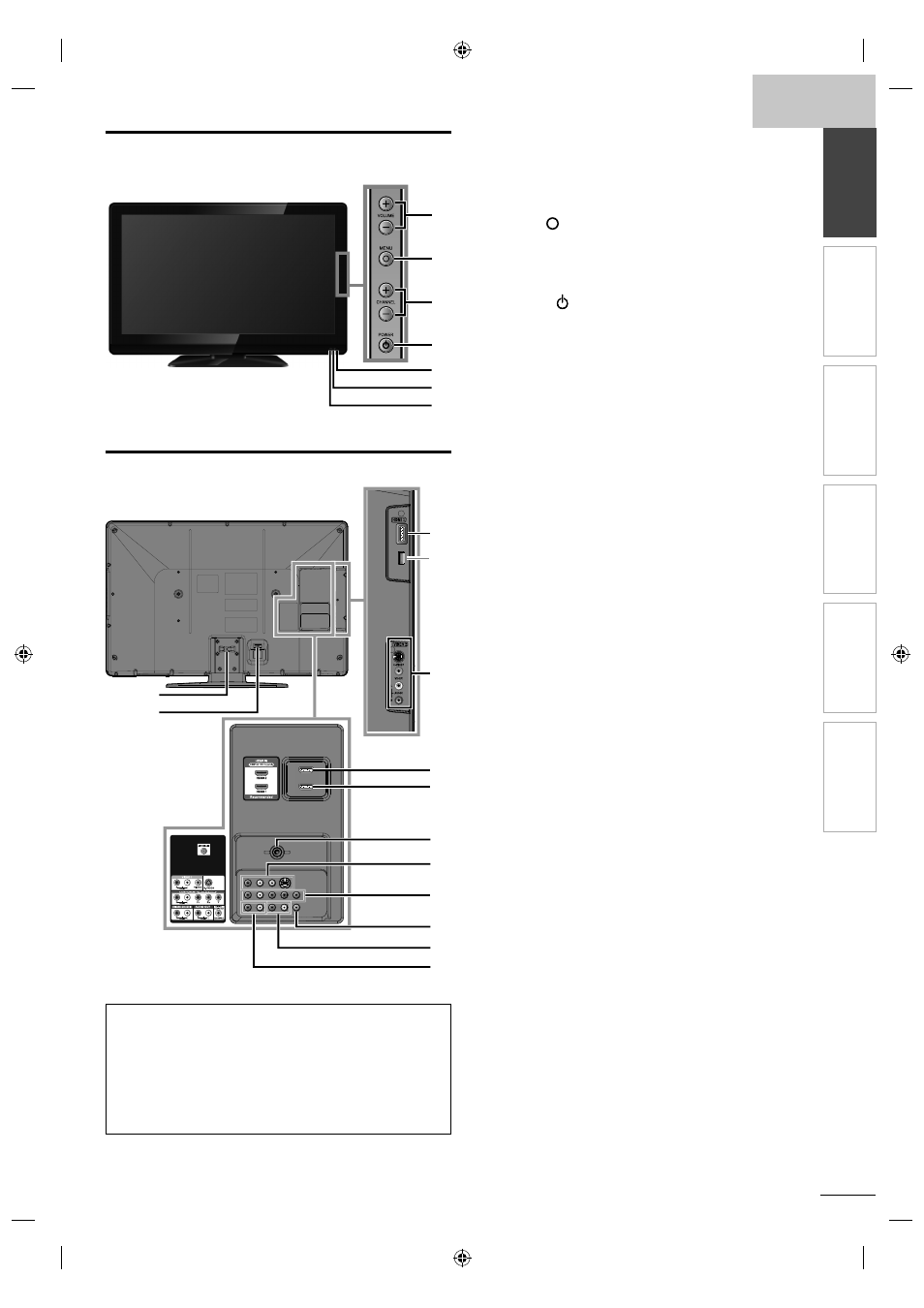

Control Panel
5
7
6
2
1
3
4
Terminals
8
9
10
11
12
15
16
17
13
14
19
18
*
Note for service terminal
* service terminal (service use only)
• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such as digital
camera, keyboard, mouse, etc. (because these will not work).
• The software update is, in most cases, handled by an authorized service
person or in some circumstances the user may be asked to do the software
update themselves.
1 VOLUME + / - ➠ p. 17
Press to adjust the volume or
move right (+) / left (–) through the main menu items.
2 MENU ➠ p. 19
3 CHANNEL + / - ➠ p. 16
Press to select channels or
move up (+) / down (–) through the main menu items.
4 POWER ➠ p. 15
5 Infrared sensor window
Receives infrared rays transmitted from the remote
control.
6 POWER indicator
Lights up green when power is on.
7 STAND BY indicator
Lights up red when power is off.
Side Panel
8 HDMI 3 Input jack ➠ p. 9, 10
9 S-Video / Composite Video / Audio (L/R)
Input jacks for VIDEO 2
➠ p. 11, 12
Rear Panel
10 Cable management
➠ p. 14
11 AC power cord r Inlet ➠ p. 14
12 HDMI 2 Input jack ➠ p. 9, 10
13 HDMI 1 Input jack ➠ p. 9, 10, 13
HDMI connection for HDMI or DVI device.
When you connect your PC that has a DVI terminal,
you can enjoy this unit as a PC monitor.
14 Antenna Input jack ➠ p. 9
15 S-Video / Composite Video / Audio (L/R)
Input jacks for VIDEO 1 ➠ p. 11, 12
16 Component Video and Audio (L/R)
Input jacks ➠ p. 9, 11
17 Digital Audio Output jack ➠ p. 12
18 Audio (L/R) Output jacks ➠ p. 12
19 Audio (L/R) Input jacks for HDMI 1
➠ p. 10, 13
Audio cable connection from a DVI device.
When you connect your PC that has a DVI terminal,
use a stereo mini plug conversion cable as well.
(For HDMI 1 Input jack only)
