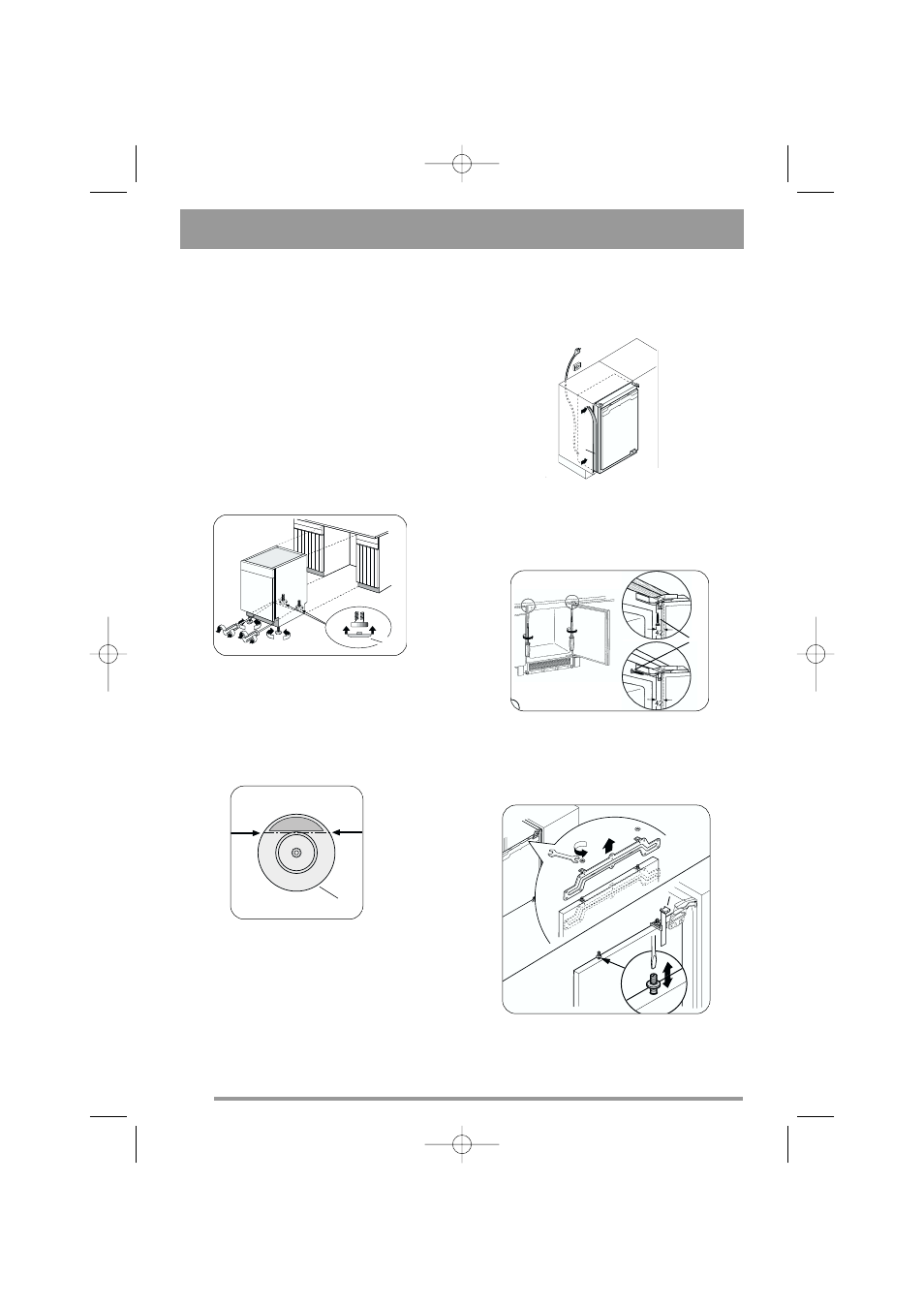

2. Push the appliance into place. The plug
socket necessary for connection of the
appliance to the electricity supply should be
positioned, so that the plug is not placed in
the recess.
3. To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the
screw in the front kick plate to the left or
right.
596
555
max
+
-
+
- E
b)
If necessary, pads (E) are supplied for the rear
feet to make sliding the appliance in and out of
the recess easier. To fit the pads, press them
onto the rear feet.
If required, the dimensions of these pads can be
reduced by breaking them where marked.
II52
E
5. Screw appliance into place and retain the
cabinet with screws (I) through the securing
brackets into the worktop or adjacent
woodwork as necessary.
4. The joint cover (B) is to be assembled after
having installed the appliance in the recess.
6. To mount the furniture door proceed as
shown in the figures:
B
4
1
5
I
a
b
10
1 2
3
4
C
