9

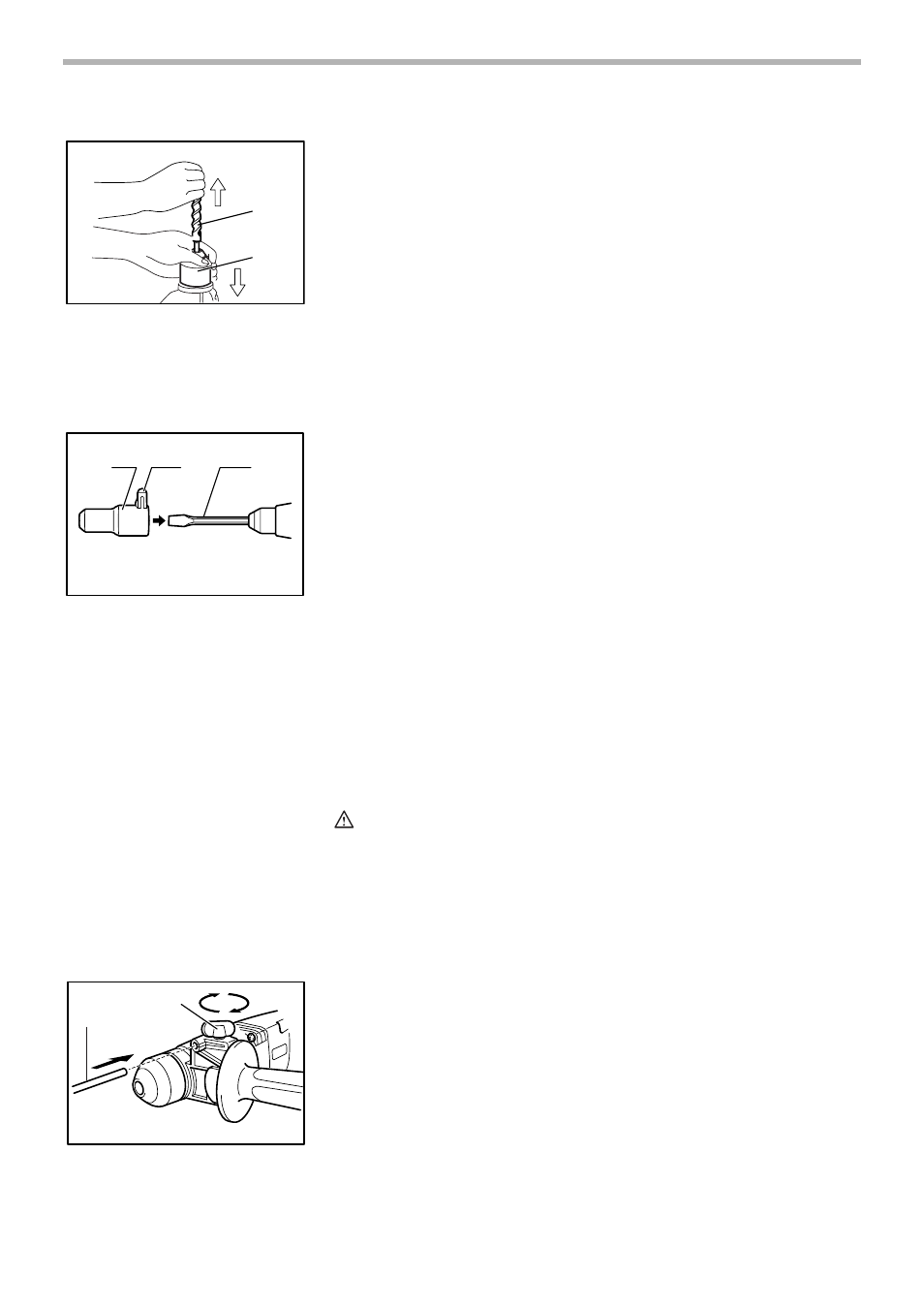

To remove the bit, pull the chuck cover down all the way and
pull the bit out.
Using cold chisel or bull point
When using optional cold chisel or bull point, proceed as fol-
lows.
1. Unplug the tool.
2. Remove the side grip from the tool.
3. Set the action mode changing knob to “rotation with
hammering” symbol.
4. Install the cold chisel or bull point and then the chisel
adapter (optional accessory) on the tool.
5. Rotate the cold chisel toward the direction suitable for
your work. Then secure the cold chisel and chisel
adapter by using the clamp screw on the chisel adapter.
6. Turn the action mode changing knob to “hammering
only” symbol. Now you can use the cold chisel or bull
point.
CAUTION:
• Always use ’’hammering only’’ action when the chisel
adapter is installed on the tool. If you use ’’rotation with
hammering’’ or ’’rotation only’’ action, a malfunction and
damage to the tool will result.
Depth gauge
The depth gauge is convenient for drilling holes of uniform
depth. Insert the depth gauge into the hole in the grip base.
Adjust the depth gauge to the desired depth and then tighten
the clamp screw to secure the depth gauge.
NOTE:
• The depth gauge cannot be used at the position where
the depth gauge strikes against the tool body.
1. Bit
2. Chuck cover
003163
1
2
1. Chisel adapter
2. Clamp screw
3. Chisel
1 2 3
003178
1. Clamp screw
2. Depth gauge
1
2
003181
