- 23 -

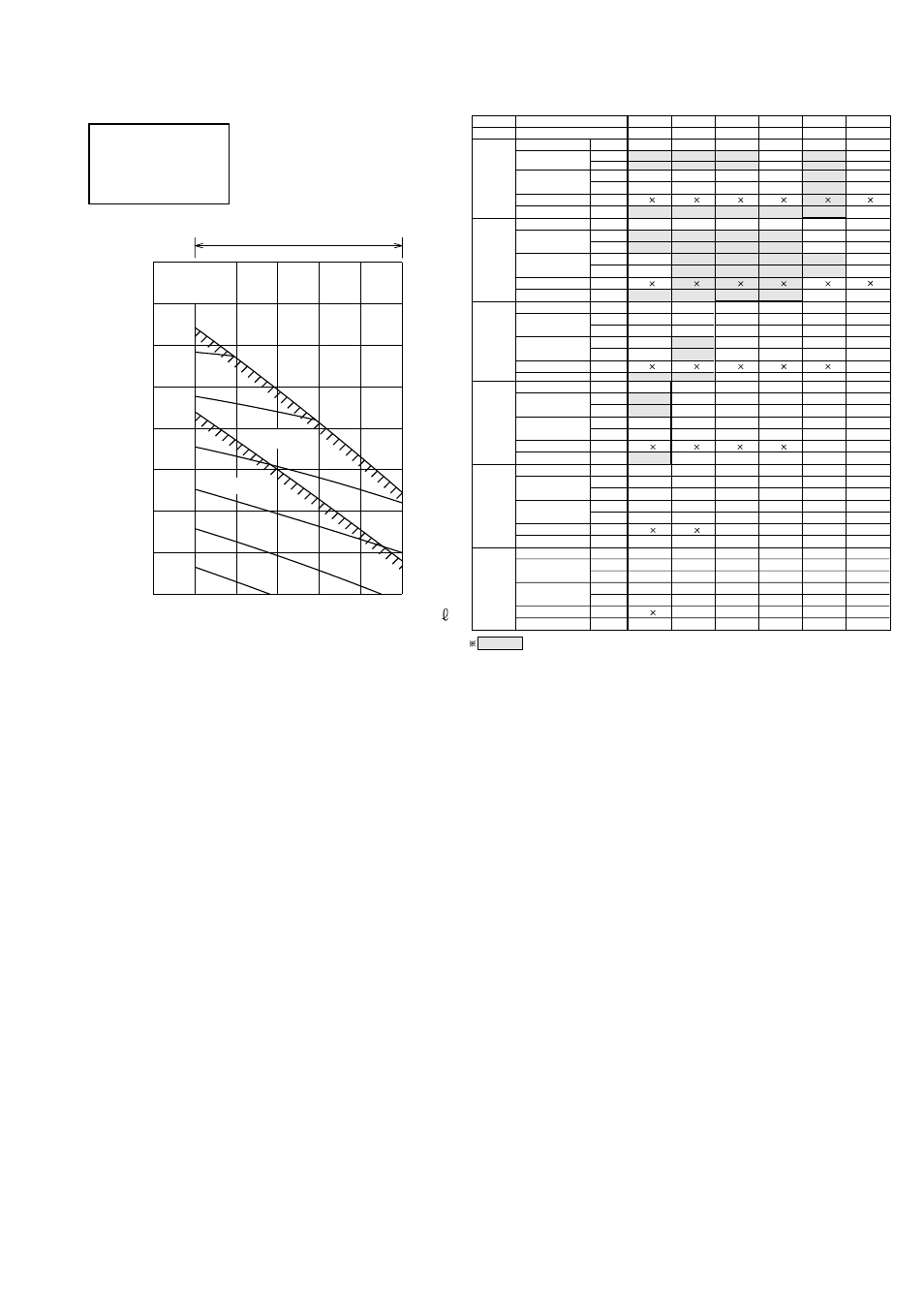

100
200
External static pressure (Pa)
(CMM)
Airflow
2830 3670 3330 3000
Operation range
400
600
300
500
700
1200
1100
1000
900
800
700
180 200 220 170
Fan speed
(rpm)
4.0kW
3.0kW
( / s)
CMM 170 180 190 200 210 220
L/S 2830 3000 3170 3330 3500 3670
100
FAN SPEED rpm 730 810 810 840 910 940
PULLEY SIZE mm 127 127 127 139.7 127 139.7
(MOTOR SIDE) inch 5.0 5.0 5.0 5.5 5.0 5.5
PULLEY SIZE mm 254 228.6 228.6 241.3 203.2 215.9
(FAN SIDE) inch 10.0 9.0 9.0 9.5 8.0 8.5
BELT SIZE inch B43 B41 B41 B42 B39 B41
MOTOR kw 3.0 3.0 3.0 3.0 3.0 4.0
200
FAN SPEED rpm 850 910 910 910 1000 970
PULLEY SIZE mm 127 127 127 127 139.7 127
(MOTOR SIDE) inch 5.0 5.0 5.0 5.0 5.5 5.0
PULLEY SIZE mm 215.9 203.2 203.2 203.2 203.2 190.5
(FAN SIDE) inch 8.5 8.0 8.0 8.0 8.0 7.5
BELT SIZE inch B40 B39 B39 B39 B40 B38
MOTOR kw 3.0 3.0 3.0 3.0 4.0 4.0
300
FAN SPEED rpm 940 1000 1040 1040 1040 -
PULLEY SIZE mm 139.7 139.7 127 127 127 -
(MOTOR SIDE) inch 5.5 5.5 5.0 5.0 5.0 -
PULLEY SIZE mm 215.9 203.2 177.8 177.8 177.8 -
(FAN SIDE) inch 8.5 8.0 7.0 7.0 7.0 -
BELT SIZE inch B41 B40 B37 B37 B37 -
MOTOR kw 3.0 3.0 4.0 4.0 4.0 -
400
FAN SPEED rpm 1040 1040 1060 1120 - -
PULLEY SIZE mm 127 127 139.7 127 - -
(MOTOR SIDE) inch 5.0 5.0 5.5 5.0 - -
PULLEY SIZE mm 177.8 177.8 190.5 165.1 - -
(FAN SIDE) inch 7.0 7 7.5 6.5 - -
BELT SIZE inch B37 B37 B39 B36 - -
MOTOR kw 3.0 4.0 4.0 4.0 - -
500
FAN SPEED rpm 1140 1120 - - - -
PULLEY SIZE mm 139.7 127 - - - -
(MOTOR SIDE) inch 5.5 5.0 - - - -
PULLEY SIZE mm 177.8 165.1 - - - -
(FAN SIDE) inch 7.0 6.5 - - - -
BELT SIZE inch B38 2 B36 2 - - - -
MOTOR kw 4 4 - - - -
600
FAN SPEED rpm 1230 - - - - -
PULLEY SIZE mm 139.7 - - - - -
(MOTOR SIDE) inch 5.5 - - - - -
PULLEY SIZE mm 165.1 - - - - -
(FAN SIDE) inch 6.5 - - - - -
BELT SIZE inch B37 - - - - -
MOTOR kw 4.0 - - - - -
2 2 2 2
2 2 2 2 2
2 2 2 2 2
2 2 2
2
2 2 2
2
Airflow
External
static
pressure
(Pa)
Std.
PR-20YC
PRH-20YA
PRH-20YA-L
