Monte Carlo Fan Company 5CO52 - Manual (Page 3)

For Canadian installation in both flush and down-
rod mode the safety cable must be installed into
the house structure beams using the 3” lag screws
provided. Make sure that when the safety cable is
fully extended the leadwires are longer than the
cable and no stress is placed on the leadwires.

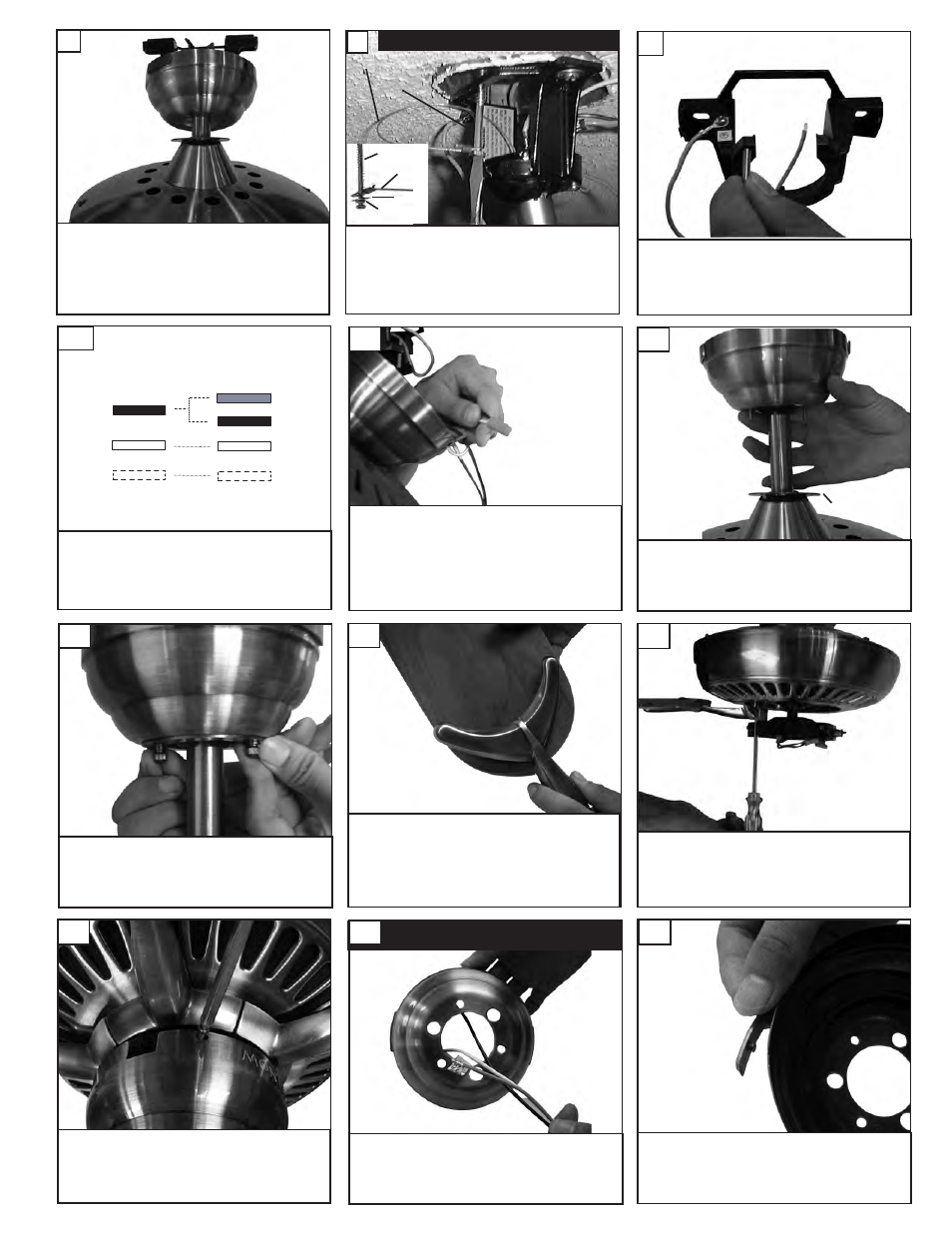

Hang assembled fan from the mounting bracket
installed to ceiling in previous step. Make sure the
fan is hanging straight. Rotate fan until the tab on
the Mounting bracket engages the slot on the
Downrod Ball. This must be done to prevent the fan
body from rotating when the blades are in motion.
7 8
Make wire connections to power source using wire nuts
provided. Make sure that no filiments are outside of
the wirenut. After making the wire connections, the
wires should be spread apart with the grounded con-
ductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on
the other side of the outlet box.
CCaannaaddiiaann m moouunnttiinngg oonnllyy
Safety Cable
Lag Screw
11
Make sure the studs protruding from
the bottom of the Mounting bracket
are installed with threads all the way
through the bracket.
9
Pass leadwires and safety cable
through the canopy.
Remove side covers from canopy
exposing 4 holes. 2 closed holes
and 2 open “L” shape holes.
18 FFlluusshh M Moouunntt IInnssttaallllaattiioonn 17
Lift canopy allowing the 2 studs
to protrude through the canopy.
12
Next lift the canopy disk and install
knurled nuts as shown. Tighten the
knurled nuts securely. The canopy should
adjust for any irregularity in the ceiling or
Outlet box.
13
Connect black and blue wire from fan to Black or (Hot)
wire from house. Connect White wire from Fan to
White (Neutral) wire from house. Connect Ground
leads from mounting bracket and downrod to Ground
lead from house. Refer to Safety Tips section of
manual.
10
Canopy disk
House Fan
Blue
Black
White
Green
Black
White
Ground
Lag Screw
Washer
Lock Washer
Safety Cable
Place blade holders onto blades aligning holes
in blade holder with holes in blade. Make sure
that the side of the blade you select is facing
downward. Install 3 screws and fiber wash-
ers to back side of blade as shown. Tighten
screws securely. Repeat this process 4 more
times until all blades are assembled.
Install blades to motor using the 10
motor screws provided. Tighten
screws securely.
14 15
Install switch cap to fan using the 3
screws provided. Tighten securely.
16
