Monte Carlo Fan Company 5LNR52XXD Series User Manual

Page 5

background image

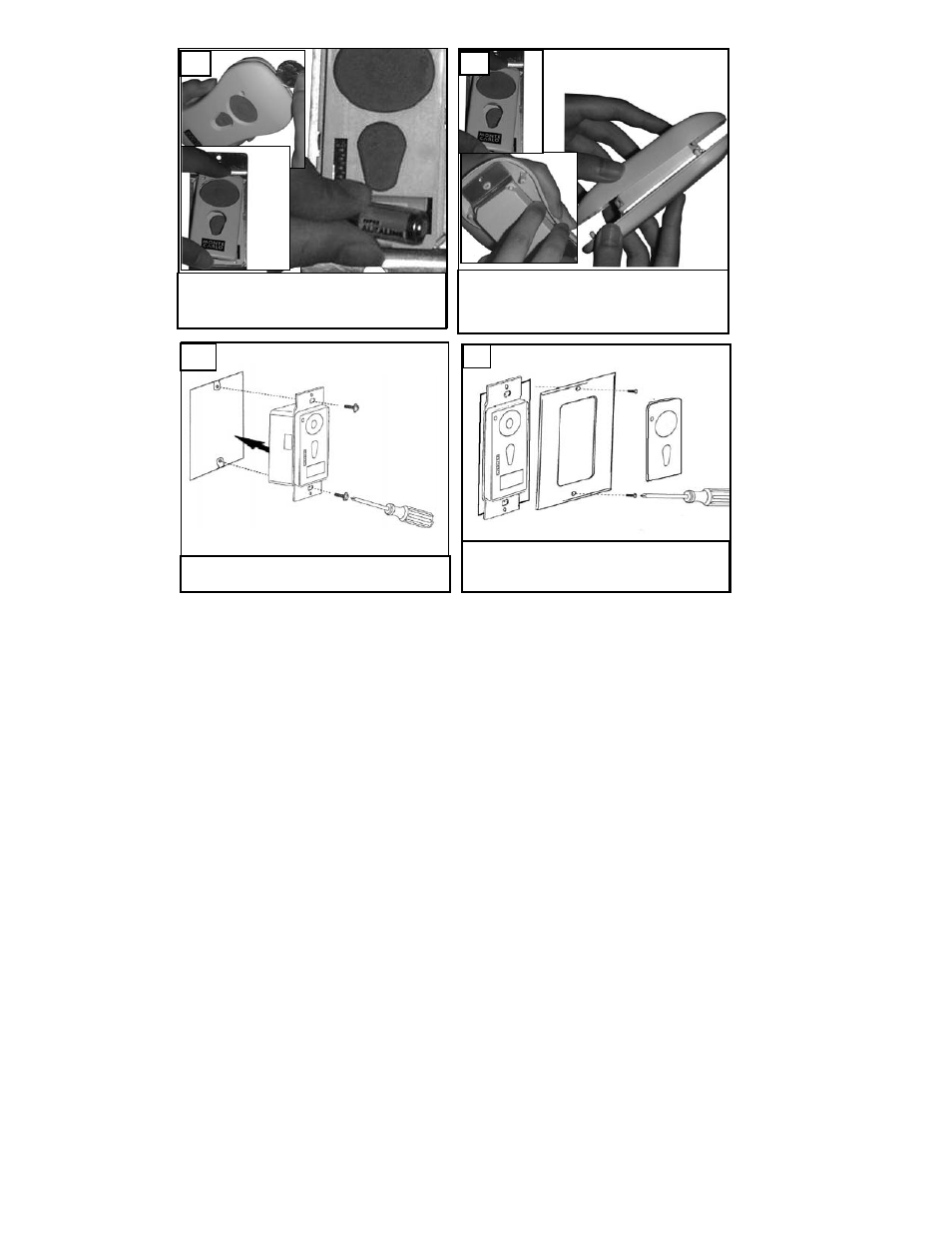

Install wall control unit to outlet box

using machine screws provided.

33

Attach front cover to wall control

with screws provided. Snap battery

cover in place.

34

Remove cover by snaping off from top or bot-

tom. Remove battery cover. Install 12V battery

into wall remote. Duracell MN21 / Eveready A23

/ GP 23A all 12V.

Place face plate over battery compartment and

buttons. Place remote over 2 pins on front

cover. Attach cover of remote by placing over 4

pins and snaping into place.

32

31

HAND HELD INSTALL

WALL MOUNT INSTALL
