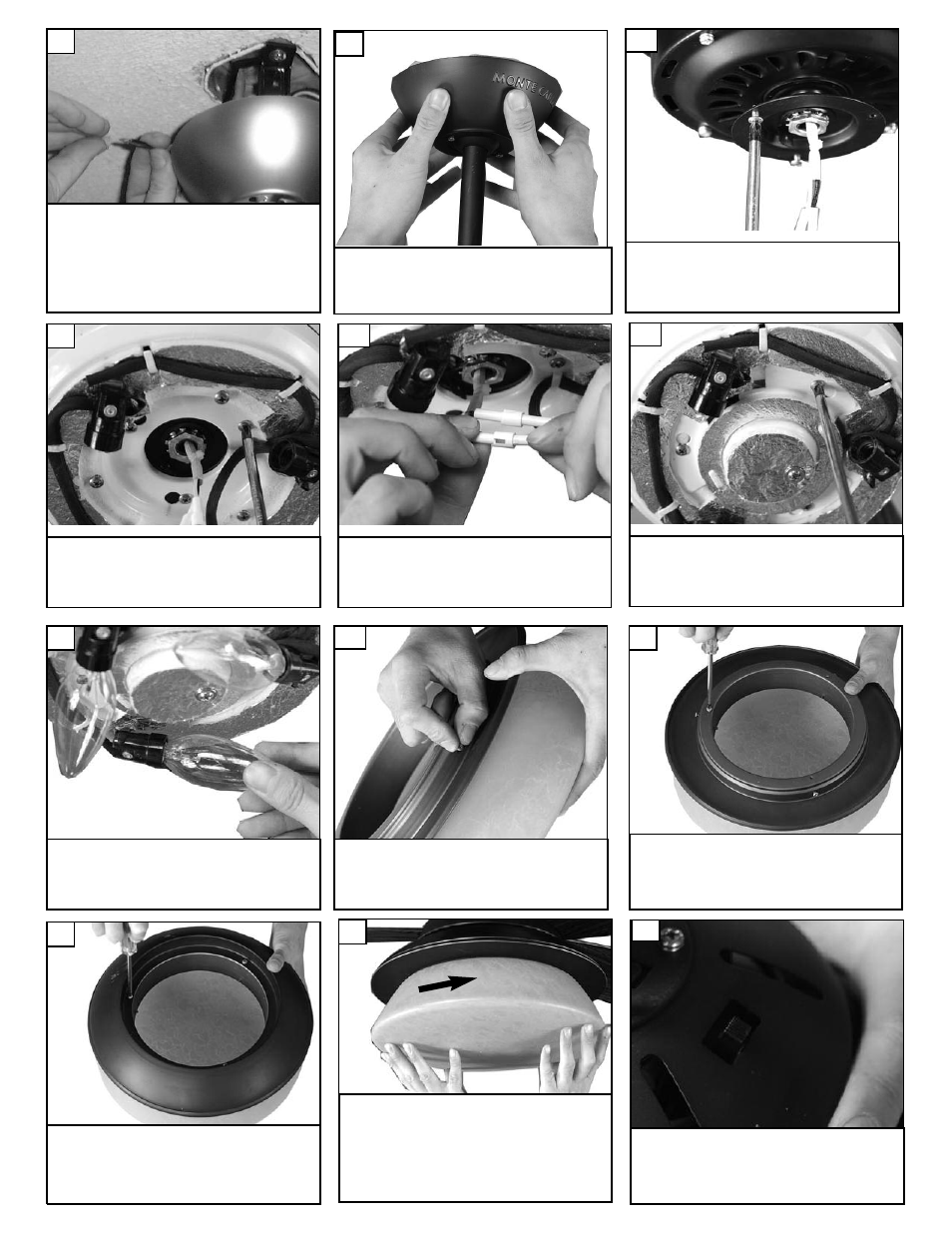

Raise glass with the frame up to the
light kit socket assembly aligning 3
pertruding nipples. Twist counter
clockwise to lock into place. Be sure
that the glass and frame goes all the
way up to the motor.
29
Reverse function for this fan is a
switch on top housing of the fan
body. Turn fan off and flip switch,
this will reverse the direction of the
blades.
30
Remove 3 screws from the frame with the
glass. Save these screws.
27
Place light kit cover over frame with
the glass aligning the 3 holes. Install
and secure the 3 screws.
28
Raise canopy to the mounting bracket
and twist to lock into place. Tighten 2
screws securely.
20
Loosen 2 screws and remove 1
screw. Save screw removed.
21
Place light kit over screws and twist
into place. Then tighten all 3 screws
securely.
22
Plug white wire from fan to white
wire from light kit. Then plug black
wire from fan to black wire from light
kit.
23
Place heat shield over screws and
twist into place. Then tighten all 3
screws securely.
24
Install the 3 x 40 watt incandescent
candelabra bulbs.
25
Loosen 3 set screws. Place glass into
frame and tighten 3 set screws
securely.
26
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
19
