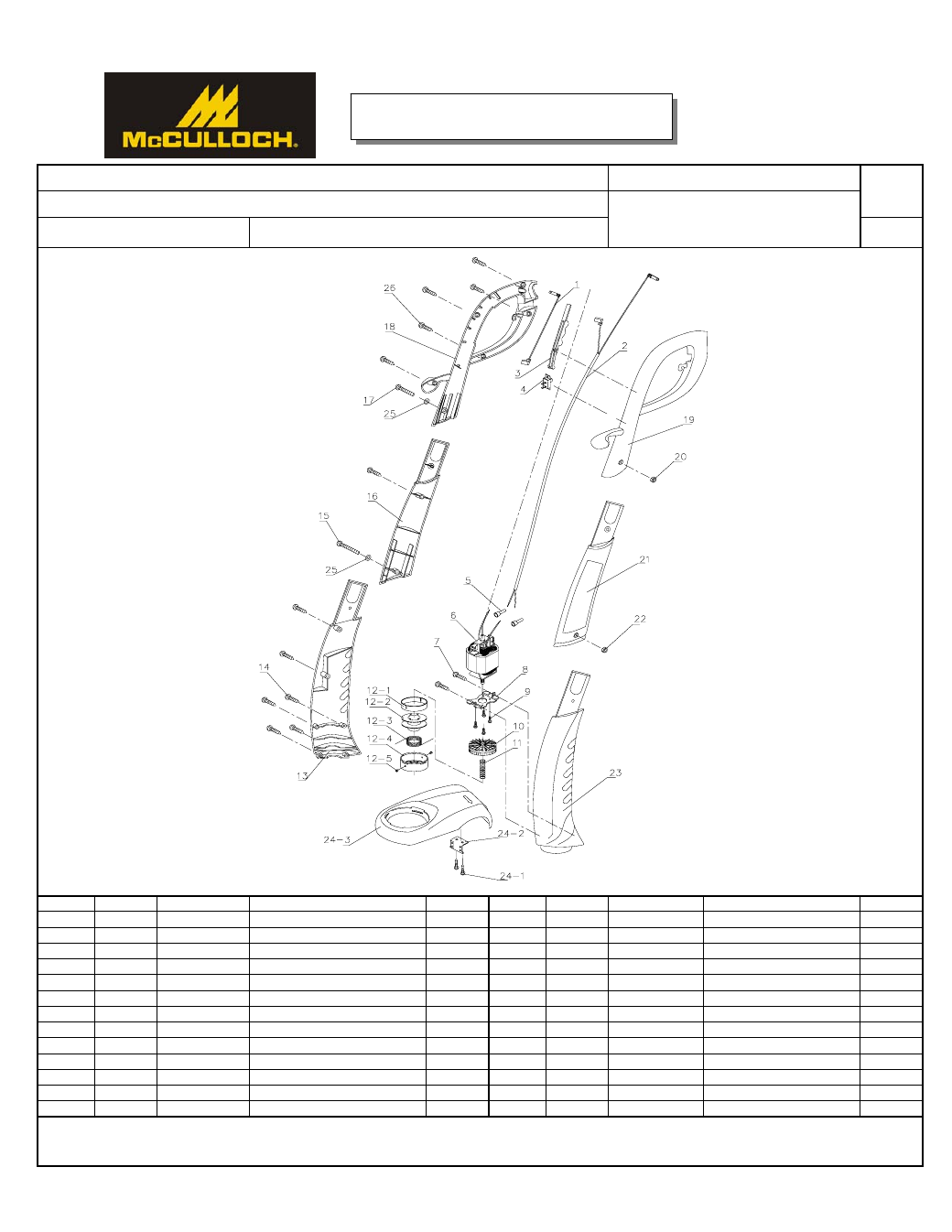

Page 21: 9" string trimmer, Model no, Service spare parts list, Specify model no. when ordering parts date
SPECIFY MODEL NO. WHEN ORDERING PARTS
DATE
REVISED
DATE
9" String Trimmer
2/14/2007
MODEL NO.
MCT2024
N/A
No.
STK CODE
Parts No.
Description
Q
No.
STK CODE
Parts No.
Description
Q
1
6010-202502
LEAD WIRE
1
14
6SDABB04-18
SCREW
10
2
6010-202501
WIRE
1
15
6SDAB-06-46
SCREW
1
3
6028-202501
SWITCH BUTTON
1
16
6207-202501
SHAFT HOUSING (R)
1
4
6022-230001
SWITCH
1
17
6SDAB-06-28
SCREW
1
5
6154-840001
TRIMINAL BLOCK
2
18
6068-202501
HANDLE HOUSING (R)
1
6
6099-202502
MOTOR
1
19
6068-202502
HANDLE HOUSING (L)
1
7
6SDABB04-14
SCREW
2
20
6NAB-06
NUT
1
8
6072-202501
MOTOR PLATE
1
21
6207-202502
SHAFT HOUSING (L)
1
9
6SDAZJ03-08
SCREW
4
22
6NAB-06
NUT
1
10
6270-202502
STRING HEAD CARRIER
1
23
6038-202502
HOUSING (L)
1
11
6024-202604
SPRING
1
*24
6228-202401
DEBRIS SHIELD ASS'Y
1
12
6228-202004A
SPOOL CARRIER ASS'Y
1
25
6WFB-06
FLAT WASHER
2
13
6038-202501
HOUSING (R)
1
26
6SDABB04-14
SCREW
2
Stocking Codes are:
A - Dealer stocked
B - Distributor stocked
C - Factory stocked
SERVICE SPARE PARTS LIST
