MTD E762F - Manual (Page 28)

28

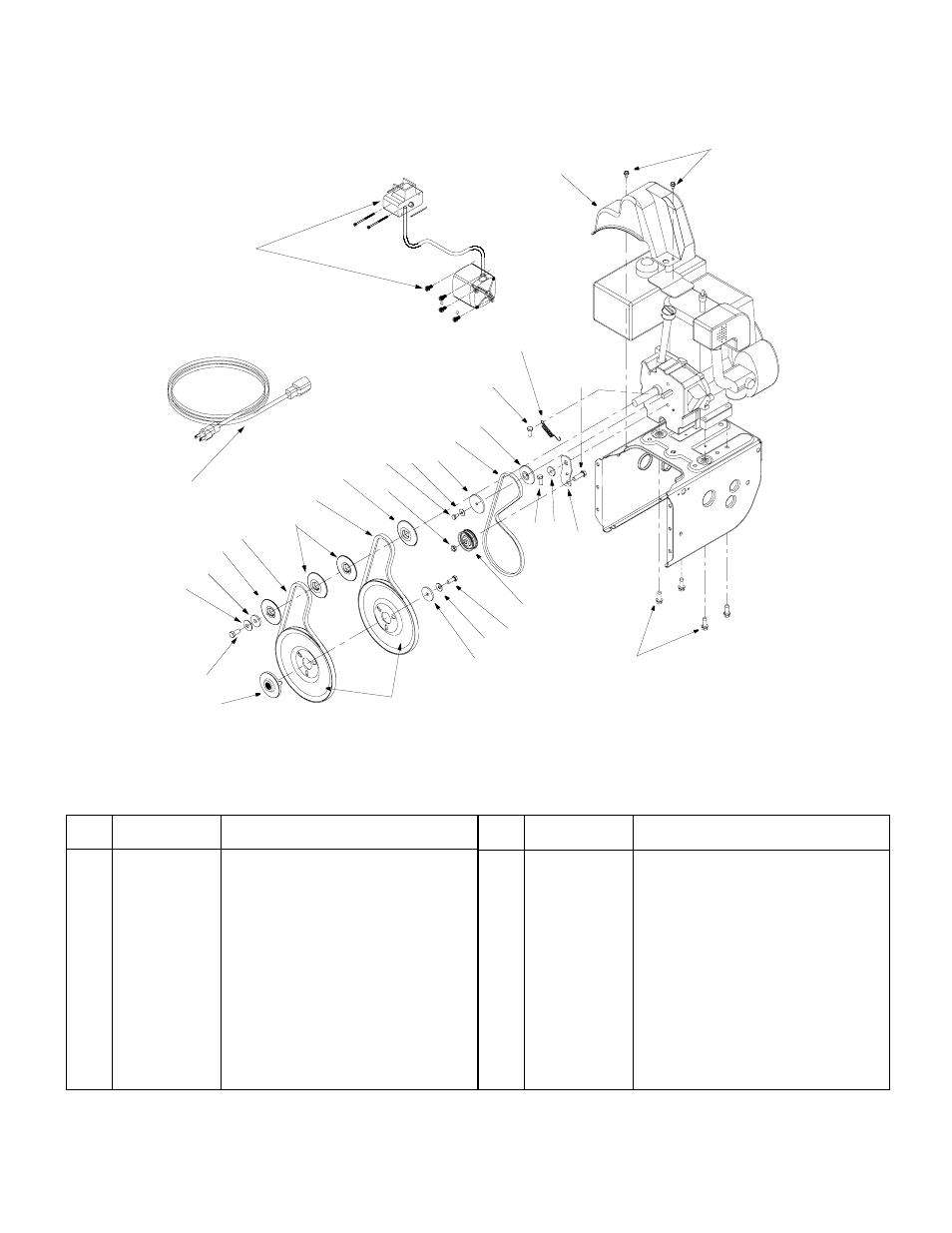

Model E762F Engine and V-Belts
1
2
3
4 5
6
7 4
8
9
10 11 12
13
15
14
16
17
18
19
19
16
16
20
21
22
23
24
25
26
27
15 712-0181 Lock Jam Nut 3/8-16
16 756-0569 Pulley Half
17 736-0242 Bell Washer
18 736-0505 Flat Washer
19 754-0430A Belt
20 756-0967 Auger Pulley
21 736-0247 Flat Washer 3/8 x 1.25 OD
22 736-0331 Bell Washer
23 710-0696 Hex Cap Screw 3/8-24
24 748-0360 Adapter Pulley
25 710-0654A Hex Tap Screw, 3/8-16 x 1
26 629-0071 Extension Cord
27 OEM-390-987 Electric Start Kit
REF.
NO.
PART
NO. DESCRIPTION
REF.
NO.
PART
NO. DESCRIPTION
1 710-1652 Hex Washer Screw 1/4-20 x .50
2 731-1324 Belt Cover
3 732-0710 Extension Spring
4 710-0627 Hex Screw 5/16-24 x .75
5 710-3005 Hex Cap Screw 3/8-16 x 1.25
6 05896A Drive Clutch Idler Bracket
7 748-0234 Shoulder Spacer
8 756-0987 Pulley Half
9 754-0346 V-Belt
10 756-0986 Pulley Half
11 736-0270 Bell Washer
12 710-0230 Hex Cap Screw 1/4-28 x .50
13 756-0313 Flat Idler
14 710-1245 Lock Hex Cap Screw 5/16-24
