MTD E762F - Manual (Page 19)

19
1
18 12
18
17
17
4
6
7
10
9
14
11
8
16
2
3
15
5
13
3
19
SECTION 13: PARTS LIST

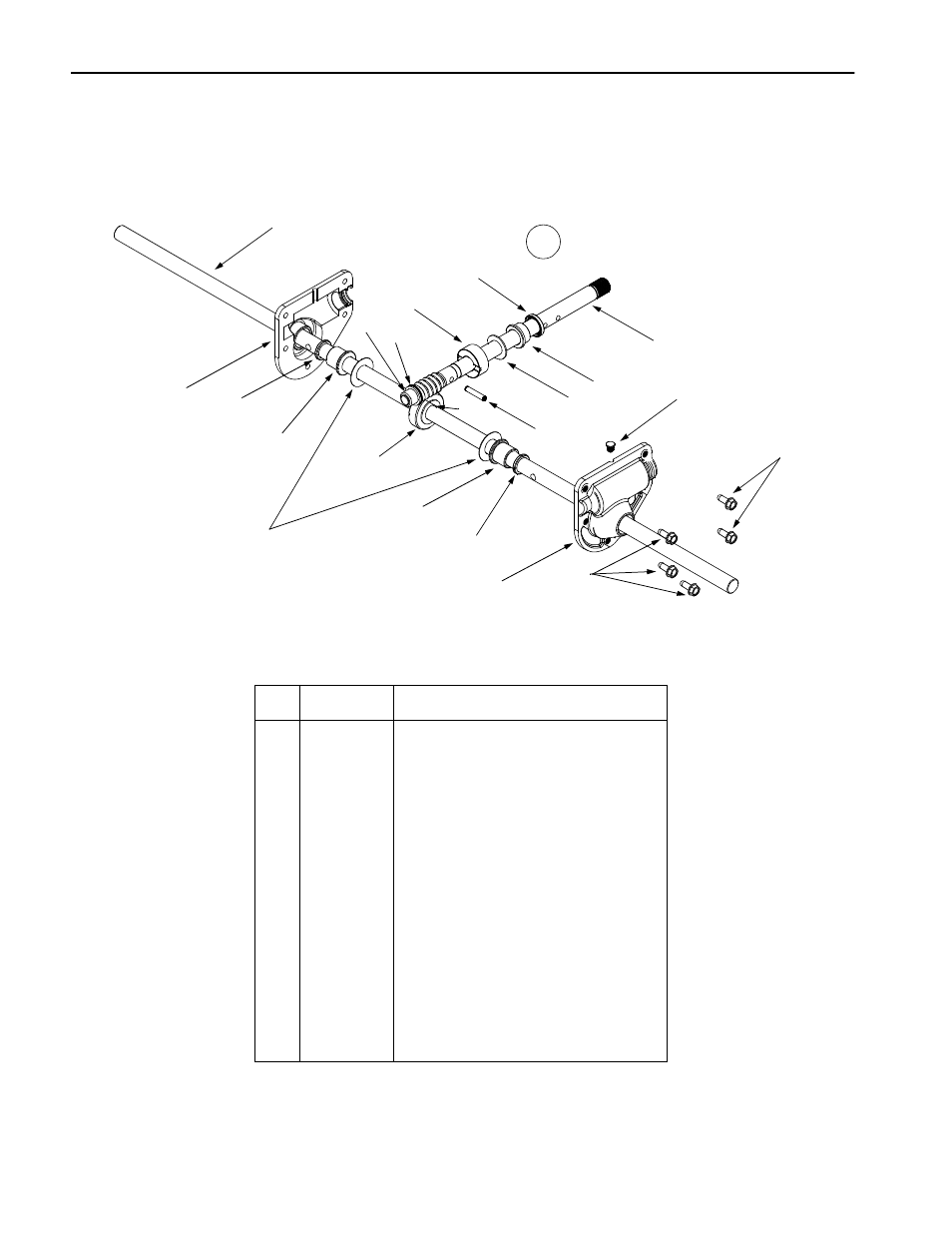

Model E762F Gearbox Assembly
REF.
NO.
PART
NO. DESCRIPTION
1 618-0123 RH Reducer Housing (Incl. Ref. 17, 18)
2 618-0124 LH Reducer Housing (Incl. Ref. 17, 18)
3 710-0642 Self Tapping Screw, 1/4-20 x .75
4 711-0909 Spiral Axle, 26”
5 714-0161 Hi-Pro Key, 3/16 x 5/8
6 715-0143 Spring Spirol Pin, .25 x 1.25
7 717-0528 Worm Gear, 20-tooth
8 717-0526 Worm Shaft
9 718-0186 Thrust Collar
10 721-0325 Grease Plug
11 721-0327 Grease Seal
12 736-0351 Flat Washer, .76 x 1.5 x .030
13 736-0369 Flat Washer, .508 x 1.0 x .020
14 736-0445 Flat Washer, .76 x 1.5 x .060
15 741-0662 Flange Bearing, .75 x 1.0 x .59
16 748-0663 Flange Bearing, .75 x 1.0 x .925
17 741-0661 Flange Bearing, .754 x 1.0 x .925
18 721-0179 Grease Seal
19 618-0121 Gear Assembly Complete
— 737-0168 Grease (Two Ounces)
