12
ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.

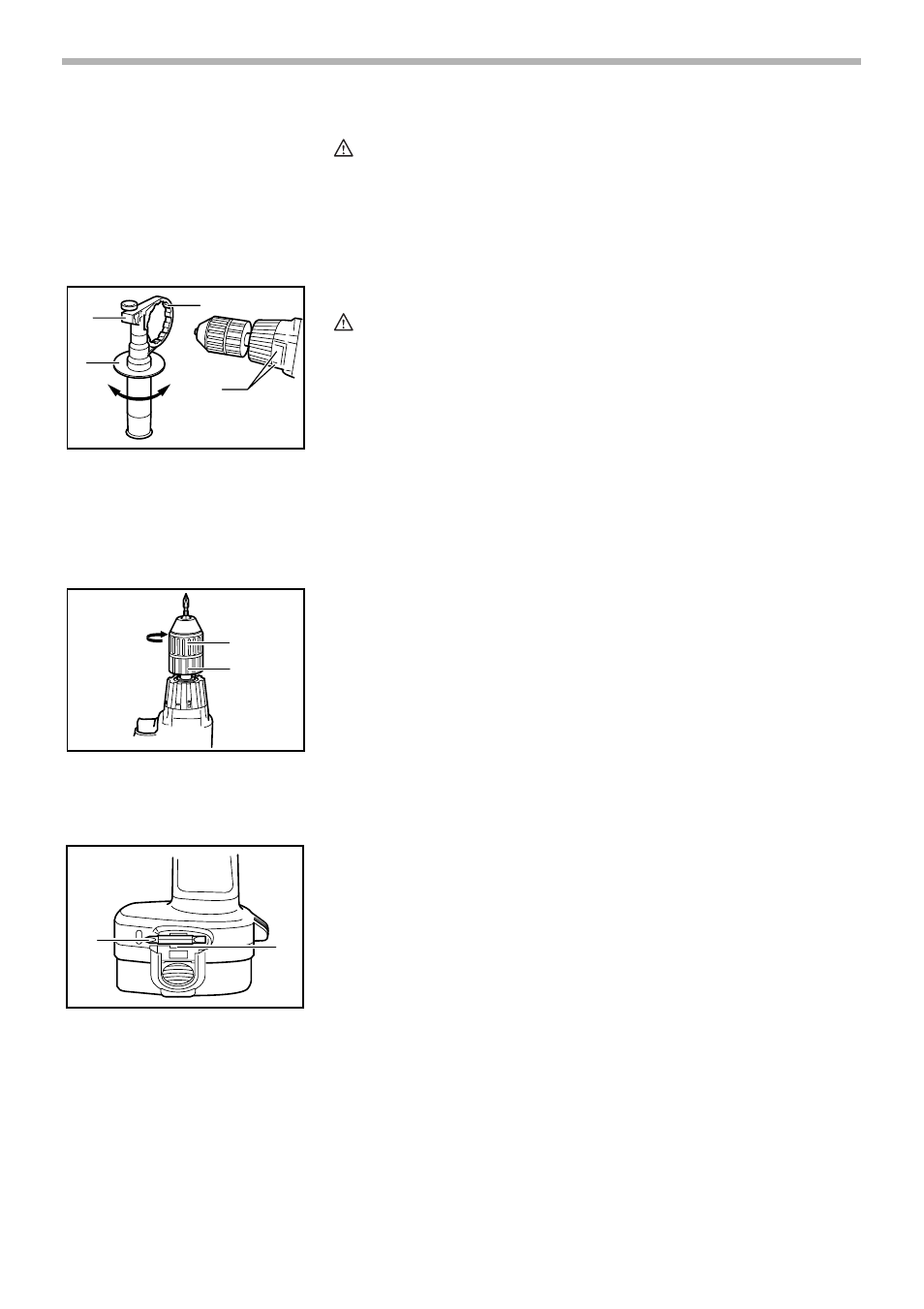

Installing side grip (auxiliary handle)
CAUTION:
•
Always be sure that the side grip is installed securely
before operation.
Always use the side grip to ensure operating safety. Install
the side grip so that the teeth on the grip fit in between the
protrusions on the tool barrel.
Then tighten the grip by turning clockwise at the desired
position. It may be swung 360° so as to be secured at any
position.
Installing or removing driver bit or drill bit
Hold the ring and turn the sleeve counterclockwise to open
the chuck jaws. Place the bit in the chuck as far as it will go.
Hold the ring firmly and turn the sleeve clockwise to tighten
the chuck.
To remove the bit, hold the ring and turn the sleeve counter-
clockwise.
When not using the driver bit, keep it in the bit holders. Bits
45 mm (1-3/4”) long can be kept there.
1. Grip base
2. Side grip
3. Teeth
4. Protrusions
1
2
3
4
002108
1. Tighten
2. Sleeve
3. Ring
1
2
3
002115
1. Bit
2. Bit holder
1
2
002119
