RISER AND STEEL BAR GRATE INSTALLATION
OPTIONAL RISER INSTALLATION
An optional riser is available. Place the riser in your firebox or fireplace in the desired location. Place burner on
riser. Attach burner to riser with two screws provided. see Figures 27 and 28.

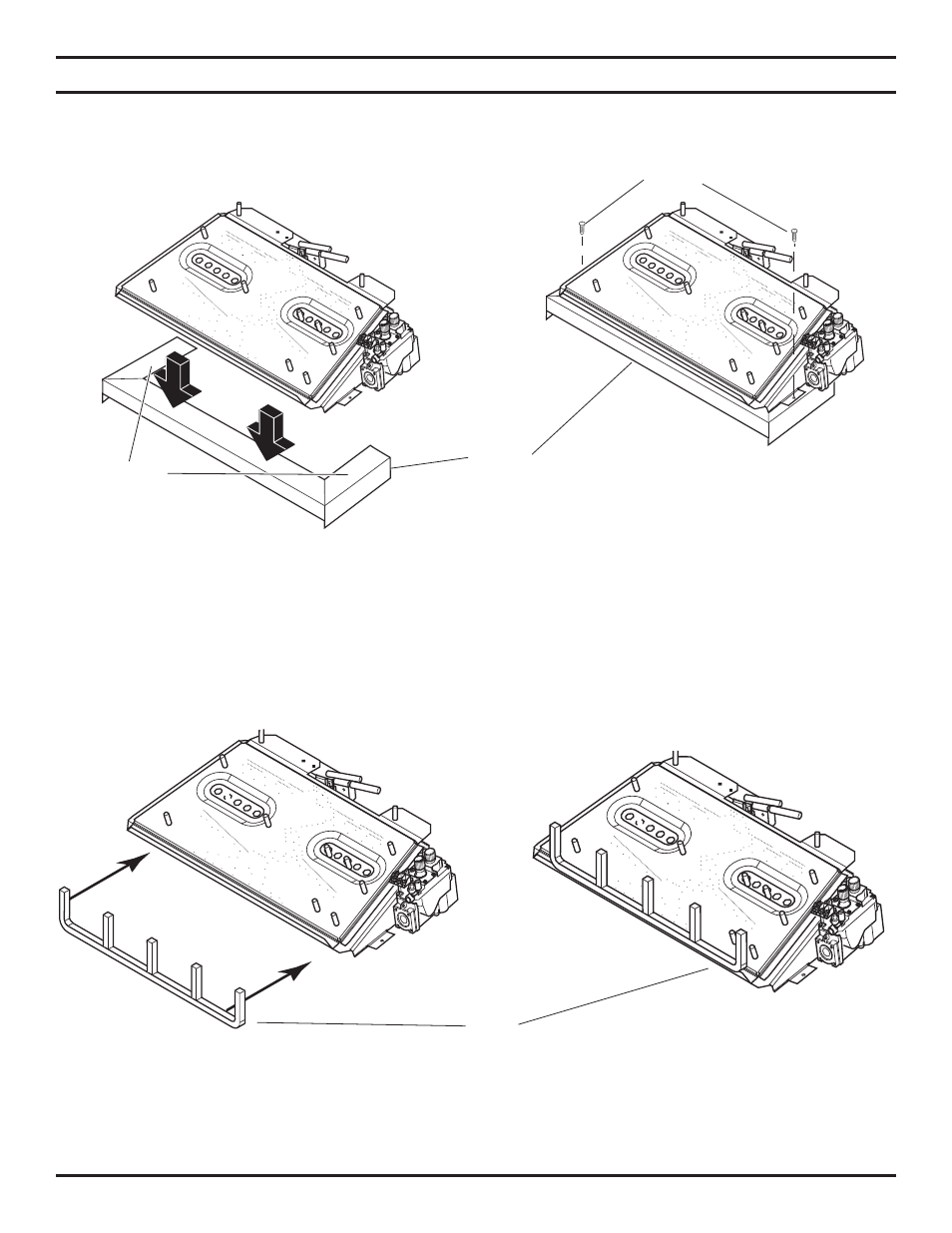

Figure 27 - Placing Burner on Riser Figure 28 - Burner Installed on Riser
IMPORTANT! When installing riser kit, the minimum recommended height for the firebox opening
will be increased by 2" (the riser height).
STEEL BAR GRATE INSTALLATION
Install the steel bar grate by sliding the bottom of the grate under the burner. The weight of the burner will hold
the grate in place. see Figures 29 and 30.
Figure 29 - Installing Steel Bar Grate Figure 30 - Steel Bar Grate Installed Under Burner
Riser
Steel Bar
Grate
Screws
Screw Holes
