70D0004 15
Heater in
Fireplace or
Firebox
Heat
Resistant
Material
10" or less
12" min. 28"
2 1 /
2
"
8"
6"
7"
14 1 /
2
"
4"

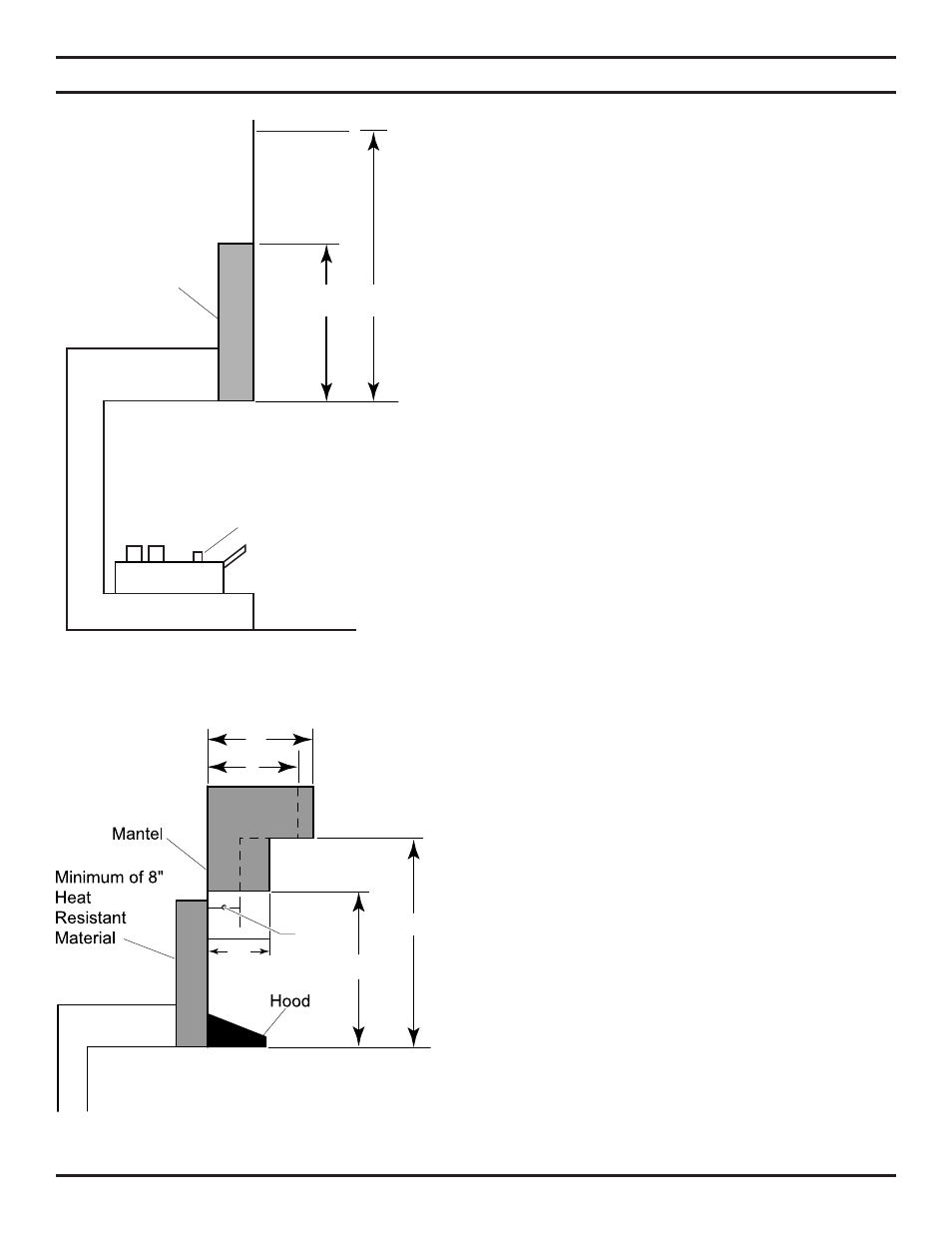

Figure 10 - Minimum Mantel Clearance with Hood - TPB24/30
(Example of Unsafe Installation)
Figure 9 - Minimum Mantel Clearance with No Hood — TPB24/30
Example: The bottom of the mantel may project from the wall
a maximum of 10" at a minimum of 28" above the
opening.
CLEARANCES
and
HEIGHT REQUIREMENTS
Figure 10 is an example of an unsafe mantel instal-
lation. This mantel projects 4" at 8" above the opening,
exceeding the maximum acceptable distance of 2
1 /
2
"
The mantel also projects 7" at 14 1 /
2
" above the opening,
exceeding the maximum acceptable distance of 6".
If your mantel profile is unsafe, you may either:
• Raise the mantel to an acceptable height
OR
• Remove the mantel
