62D4036 5
BBV, SBV Series Natural Vent Gas Fireplaces PRODUCT FEATURES
PRODUCT SPECIFICATIONS
•
This appliance has been certified for use with either
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
• The appliance must be installed in accordance with
local codes if any. If none exist use the current instal-
lation code, ANSI Z223.1/NFPA 54 in the US and
CSA B149 in Canada.
• The appliance must be properly connected to a vent-
ing system.
• The appliance is not approved for closet or recessed
installations.
FP1920
BBV SBV parts
9/08
Gas Control
(not shown)
1/2”
Nailing
Flange
5/8”
Nailing
Flanges
1/2”
Nailing
Flange

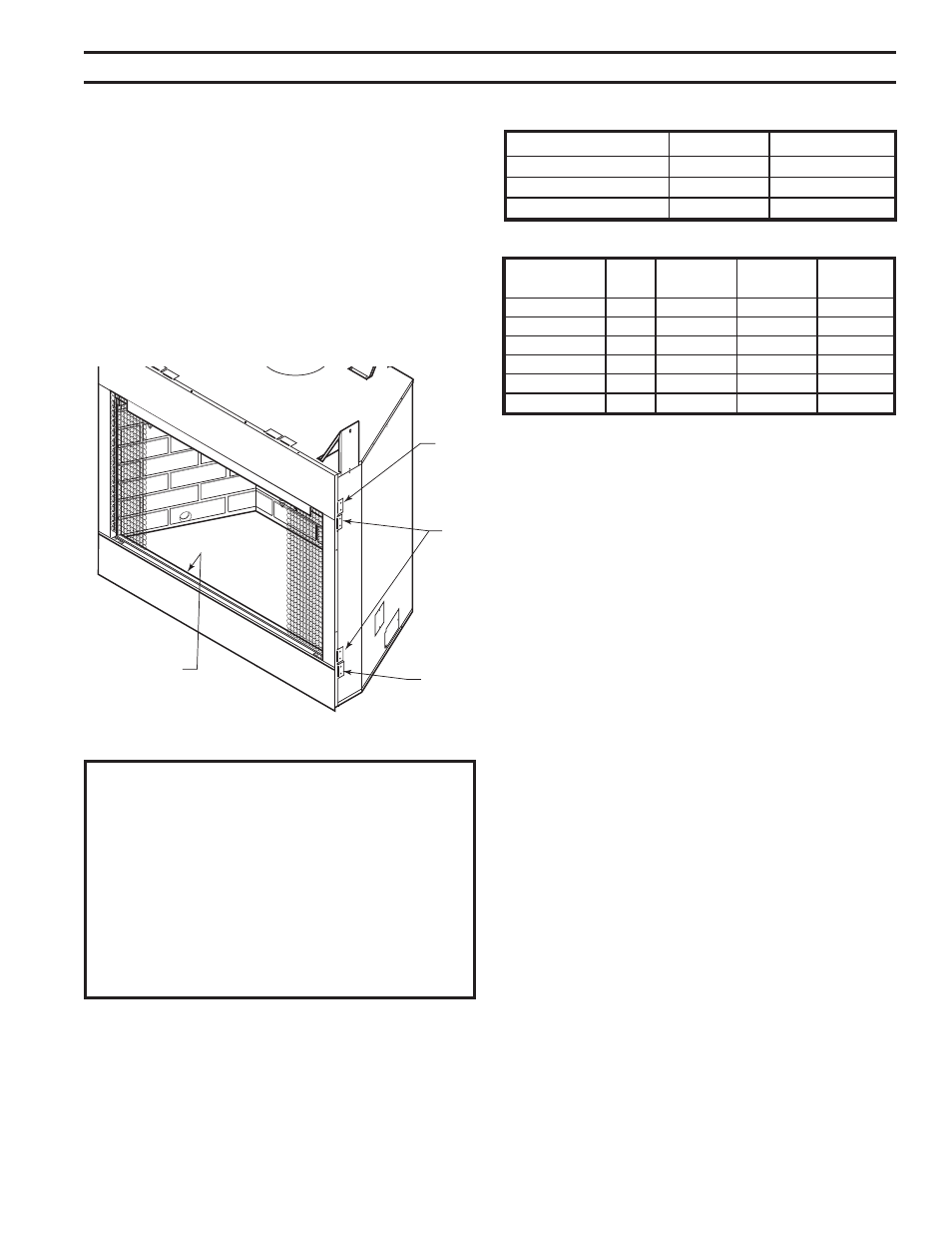

Figure 1 -
BBV/SBV Fireplace
FP1920
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are cer-
tified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA, in-
stallation must be in accordance with the current ANSI
Z223.1/NFPA 54 and/or local codes having jurisdic-
tion.
In Canada, please consult provincial and/or local au-
thorities having jurisdiciton for installation at elevations
above 4,500 feet (1,370 m).
GAS PRESSURES
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
GAS SPECIFICATIONS & ORIFICE SIZE
Max.Input Min. Input Orifice
Model Fuel BTU/h BTU/h Size
BBV400NV Nat. 22,000 16,000 #43
BBV400PV LP 22,000 14,500 #55
SBV400NV Nat. 29,000 16,500 #41
SBV400PV LP 29,000 16,300 #53
SBV500NV Nat. 31,500 19,000 #37
SBV500PV LP 31,500 20,000 #52
BEFORE YOU START
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any dam-
age is found. Do not install any unit with damaged, incom-
plete, or substitute parts. Check your packing list to verify
that all listed parts have been received. You should have
the following:
• Fireplace (Firebox and Burner System)
• Log Set • Volcanic Rock
• Rock Wool • White Toggle Switch
• Switch Cover Plate • Plastic Bag (1)
• Ziplock Bag 2” x 3” x 3”
ITEMS REQUIRED FOR INSTALLATION
•
Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Electric Drill and Bits • Tee Joint
• Pliers • Measuring Tape
• Square • Pipe Wrench
• Caulking Material (Noncombustible)
• Fireplace Surround Material (Noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to Sulfur Compounds)
