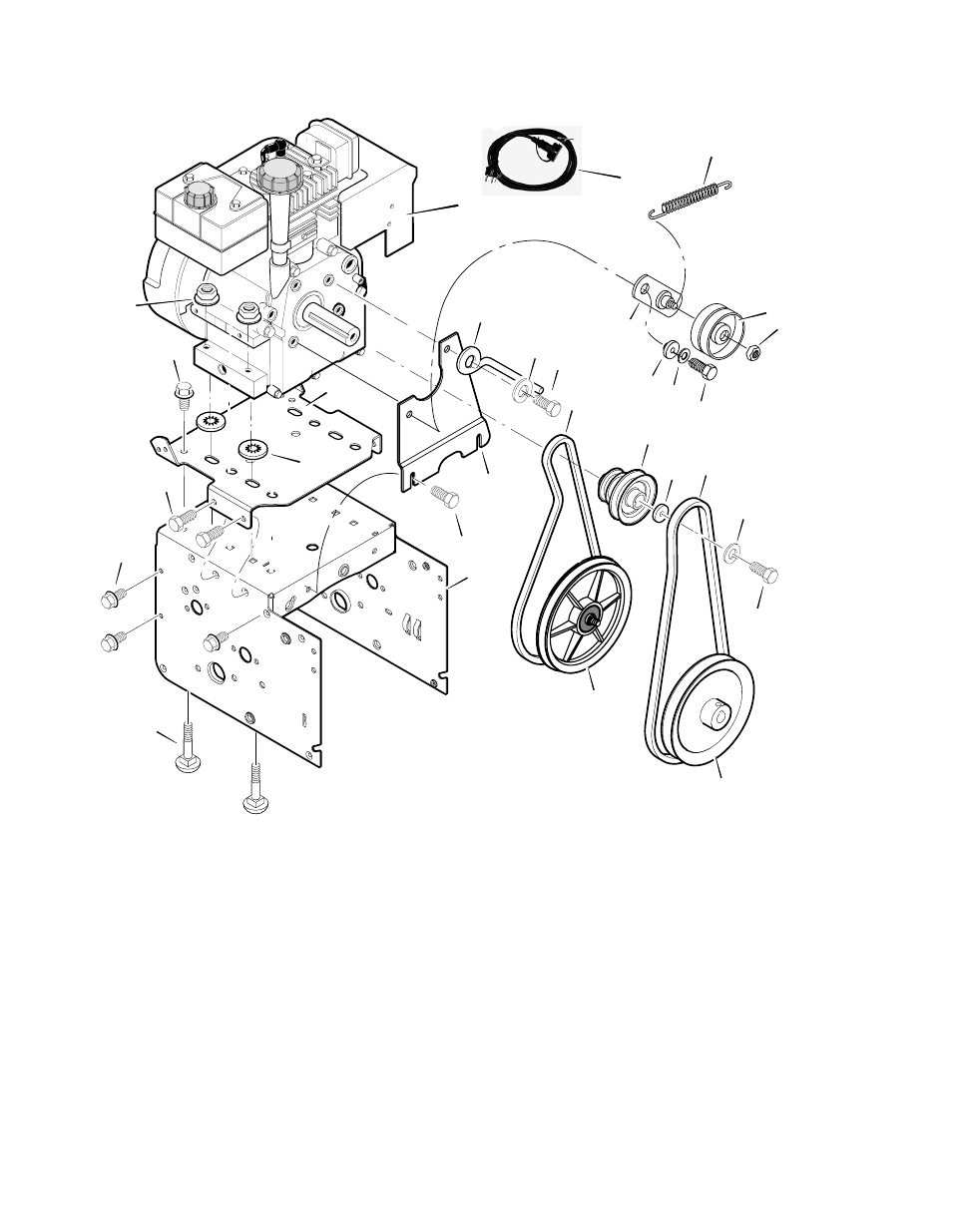

MODEL 629108x84B
REPAIR PARTS
32
F-041030L
ENGINE
Б
ББ
25-1
2
3
25-4
25-2
25-3
5
4
11
6
7
8
10
Ref. Drive Page
Ref. Auger Housing Page
9
25-2
20
22
24
23
26
16
17
18
14
13
15
12
1
Key No. Part No.
Description
Key No. Part No.
Description
1
6219
CORD, STARTER
2
*
ENGINE *
3
002x97
BOLT, CARRIAGE 5/16-18
4
028x76
RETAINER, PUSH
5
710026
NUT, HEX 5/16-18
6
1501109
PULLEY, ENGINE
7
710247
WASHER
8
71063
WASHER .38ID
9
71015
SCREW, 3/8-24X1.00
10
579932
BELT, DRIVE V 3L
11
585416
BELT, AUGER V 4L
12
1501112 YZ
BRACKET ASSEMBLY, IDLER
13
1501065
BUSHING, IDLER BRACKET
14
71060
WASHER, SPLIT
15
910828
SCREW 5/16-24 X 1.00
16
165x164
SPRING, IDLER TRACTION DRIVE
17
50793
PULLEY, IDLER
18
590
NUT, JAM 3/8-16
20
1501201
GUIDE, BELT
22
71060
WASHER, SPTLK .31X.58X.08
23
1501482
PLATE, ANTI VIBRATION
24
910828
SCREW, 5/16-24X 1.00
25
- - - - - -
FRAME ASSEMBLY
25-1
1501062E700
PLATE, ENGINE MOUNT
25-2
310169
SCREW, TAP 1/4-20 X .63
25-3
25x020
SCREW, TAP 5/16-18 X .50
25-4
1501049E700
FRAME, MOTOR BOX
26
26x263
SCREW
--
F-041030L
OWNER’S MANUAL
*
For information on Replacement Parts for this engine contact the manufacturer.
