8
FO 0763 FO 0764
Dimensions are
given in mm.

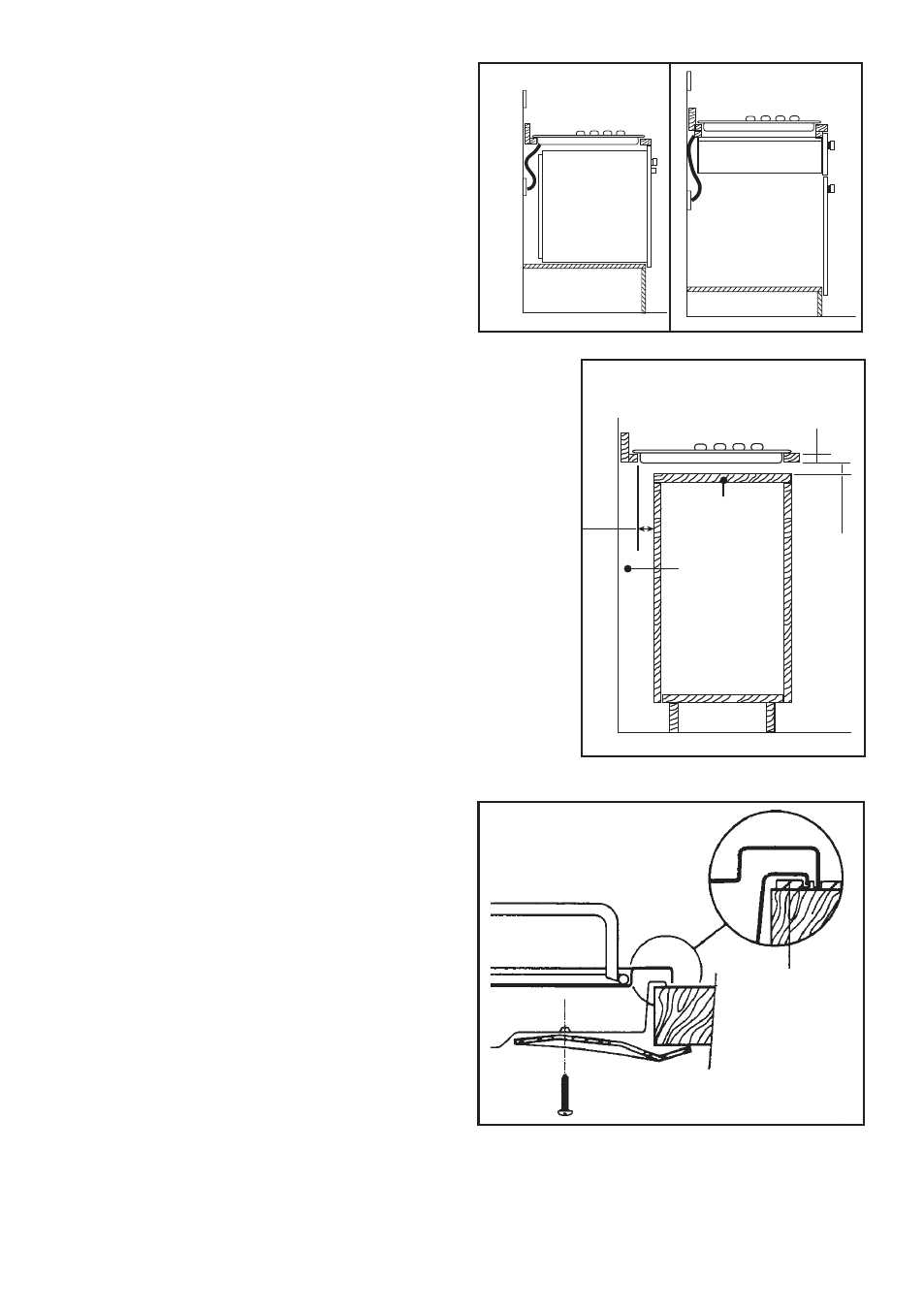

Building In
Building over a cupboard or
drawer
If the hob is to be installed above a cupboard
or drawer it will be necessary to fit a heat
resistant board below the base of the hob on
the underside of the work surface.
It is also recommended to carry out the
electrical connection to the hob as shown in
diagrams 1 and 2.
Building over a kitchen unit
with door
Proper arrangements must be taken in
designing the furniture unit, in order to avoid any
contact with the bottom of the hob which can
be heated when it is operated. The
recommended solution is shown in diagram 3.
The panel fitted under the hob ("a") should
be easily removable to allow easy access if
technical assistance is needed. The space
behind the kitchen unit ("b") can be used for
connections.
30
20 min 60
a
b
FO 1013
3
FO 0199
Fitting the Hob into the
worktop
Carry out the building in of the hob as
follows:
1. put the seals supplied with the hob,
on the edges of the cut out, taking
care that the seals meet without
overlapping;
2. place the hob in the cut out, taking
care that it is centred;
3. fix the hob with the relevant fixing
clamps and screws, as shown in
the diagram. When the screws
have been tightened, the excess
seal can be removed.
The edge of the hob forms a double seal which
prevents the ingress of liquids.
Sealing
gasket
)
ON/OFF SWITCH
FLEX
OUTLET
ON/OFF SWITCH
FLEX
OUTLET
1 2
