Overall dimensions Cut out dimensions
Width: 580 mm. Width: 550 mm.
Depth: 500 mm. Depth: 470 mm.
Engineers technical data
Instructions
for the Installer
Heating elements Ratings
Normal front left hotplate Ø 180 mm
1500 W
Normal back left hotplate
Ø 145 mm
1000 W
Rapid front right hotplate
Ø 145 mm
1500 W
Rapid back right hotplate
Ø 180 mm
2000 W
Total rating
6000 W
Supply connections
Electric:
230V 50Hz AC electrical supply.
This hob must be installed by
qualified personnel to the relevant
British Standards. - The manufacturer will
not accept liability, should the following
instructions or any of the other safety
instructions incorporated in this book be
ignored.

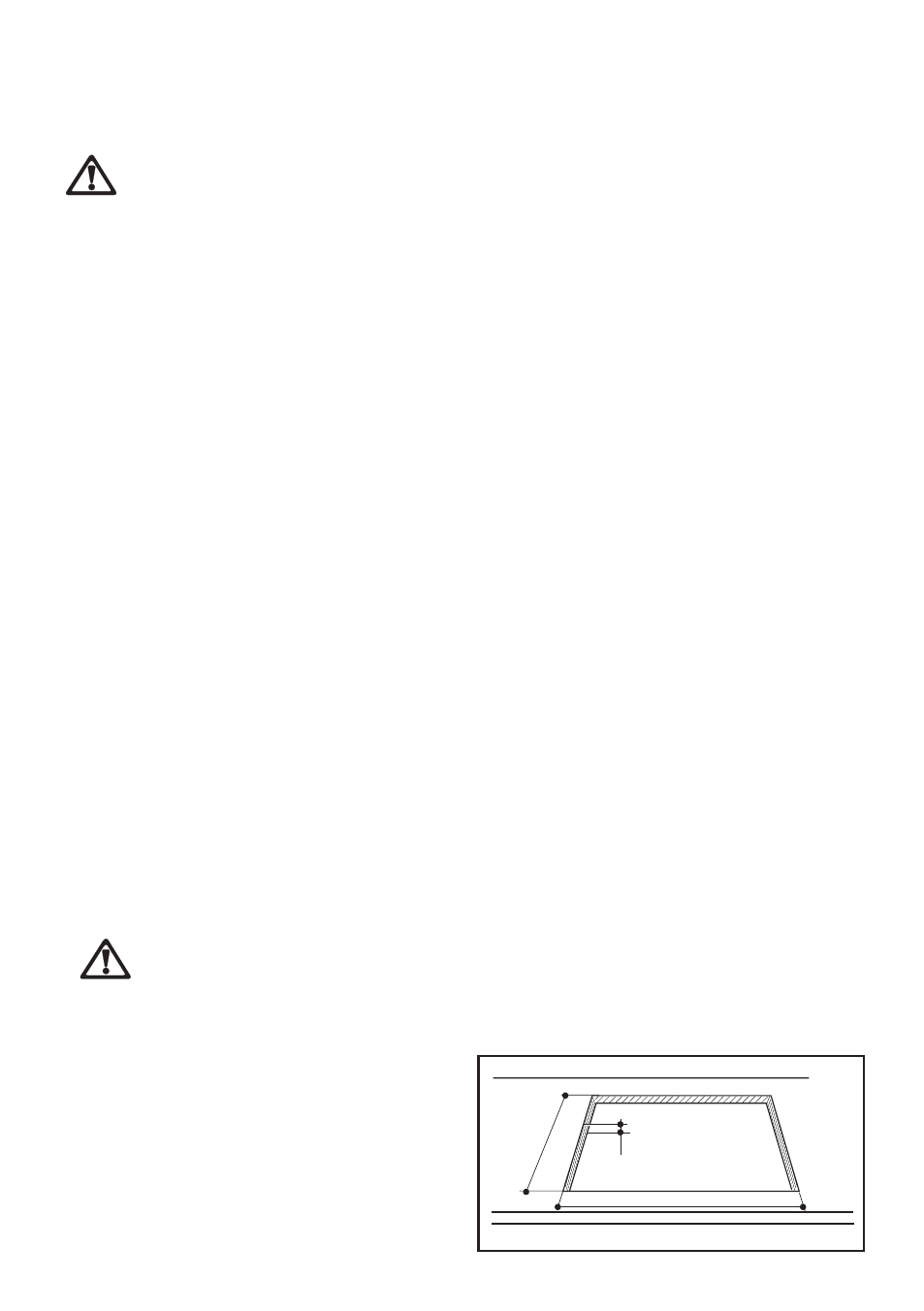

Cut Out Size
When the hob is first installed
Once the hob has been installed, it
is important to remove any
protective materials, which were put on in
the factory.
Dimensions are given in mm.
550
47
0
30
