Page 11

background image

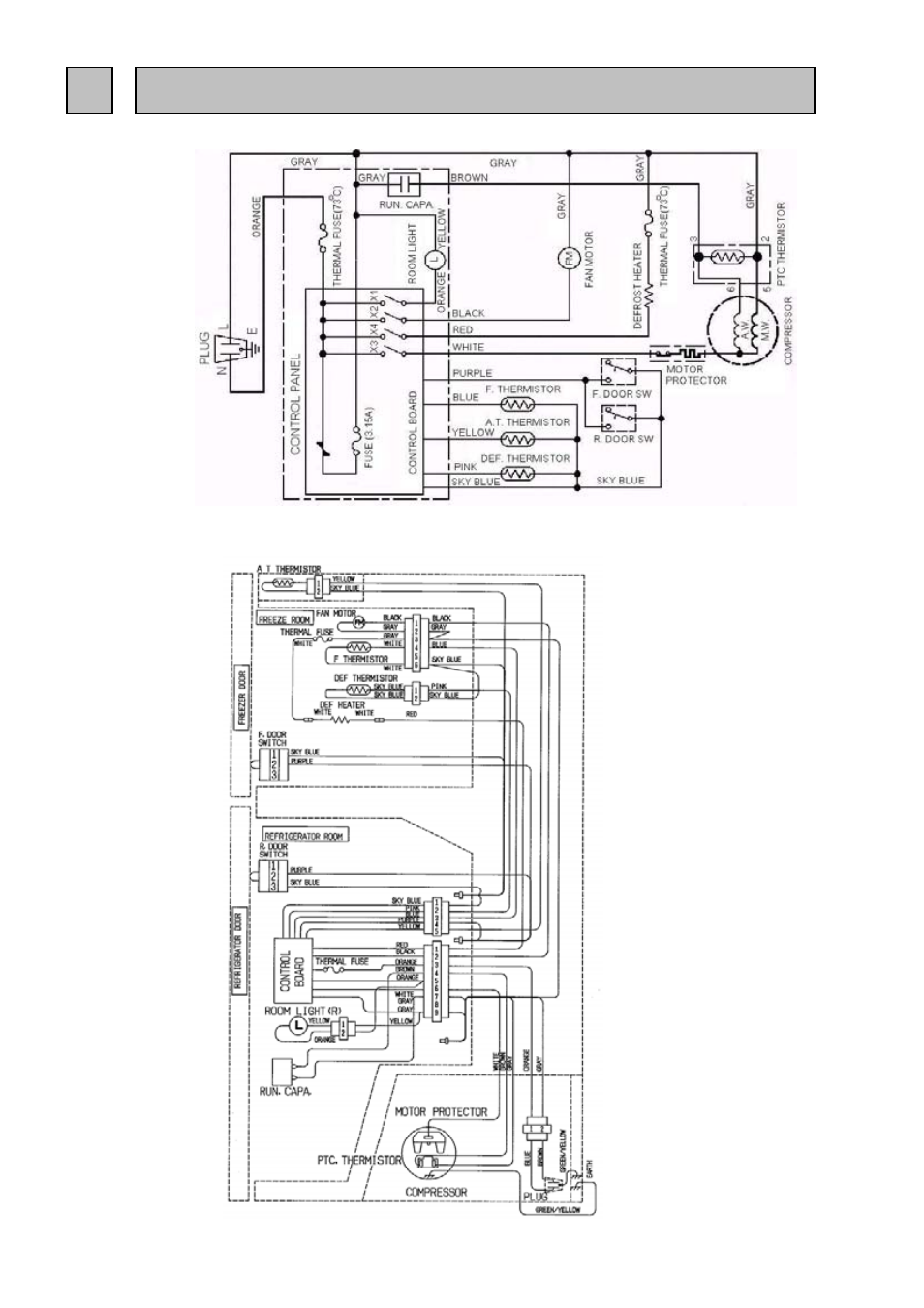

(SKELETON WIRING DIAGRAM)

MR-385R-A

MR-385R-A(NZ)

MR-420R-A

MR-420R-A(NZ)

MR-455R-A

MR-455R-A(NZ)

(ACTUAL WIRING DIAGRAM)

3

WIRING DIAGRAM

- 10 -

This manual is related to the following products:

MR-420R-ST-A(NZ) MR-420R-ST-A
