COMPONENT DIAGRAMS – Model 1500HT
FIREBRICK
Part/Catalog #
Quantity
Dimensions
Part/Catalog #
Quantity
Dimensions
FB-1
6
9 x 4 1/2”
FB11
1
4 1/2” x 4 3/8”
FB2
10
9 x 4 1/2” w/notch
10545
5
* 9 x 4 1/2” w/notch
01115 1 Grate
FB-5
1
9 x 2 1/2” w/hole
* Baffle brick are a special denser brick. Do not substi-
tute
Note: All brick are 1 ¼” thick.
PAGE 22

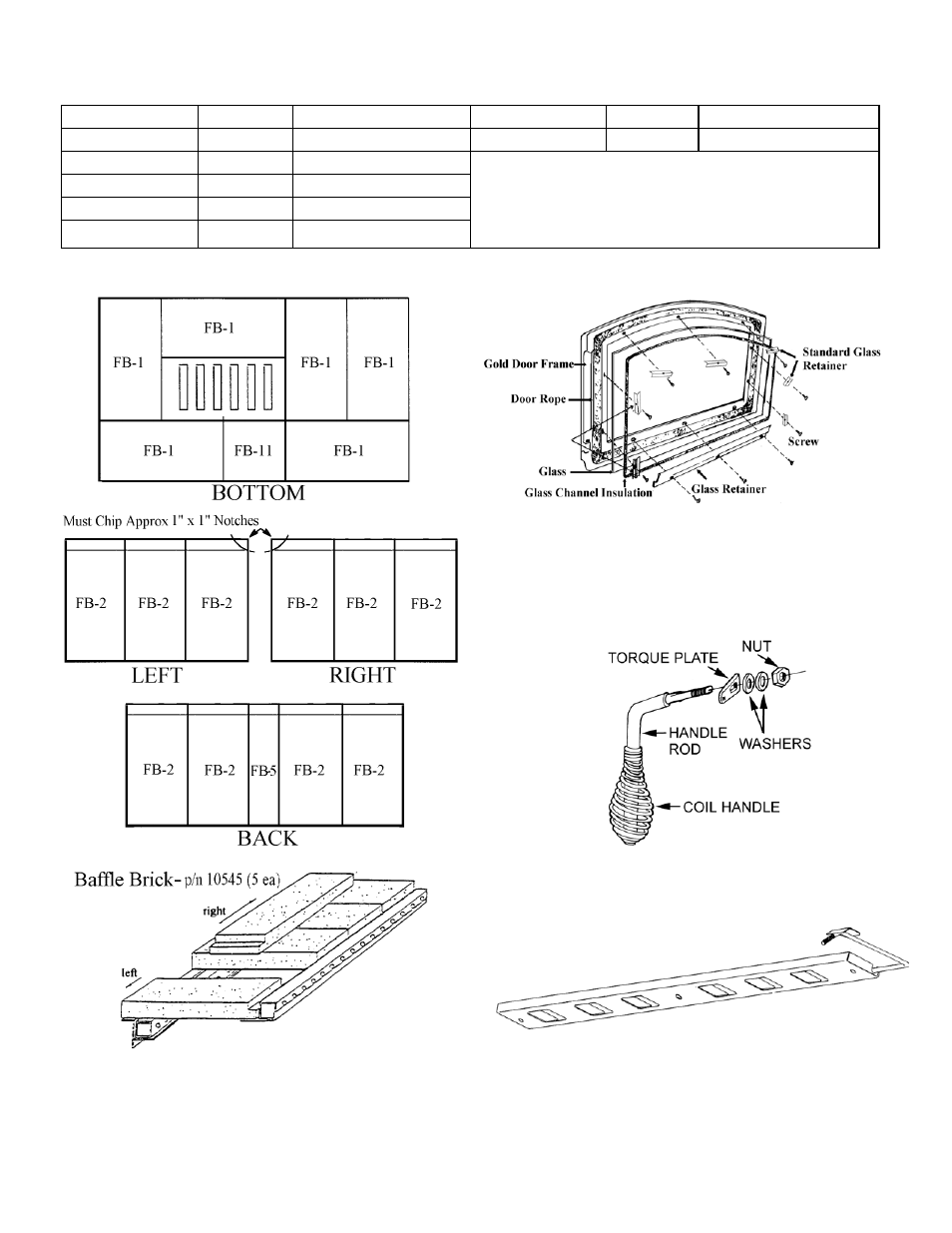

BRICK DIAGRAM
HANDLE ASSEMBLY
PRIMARY AIR DRAFT MODULE
DOOR ASSEMBLY
