38
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC16H38ST (96011013201), PRODUCT NO. 960 11 01-32

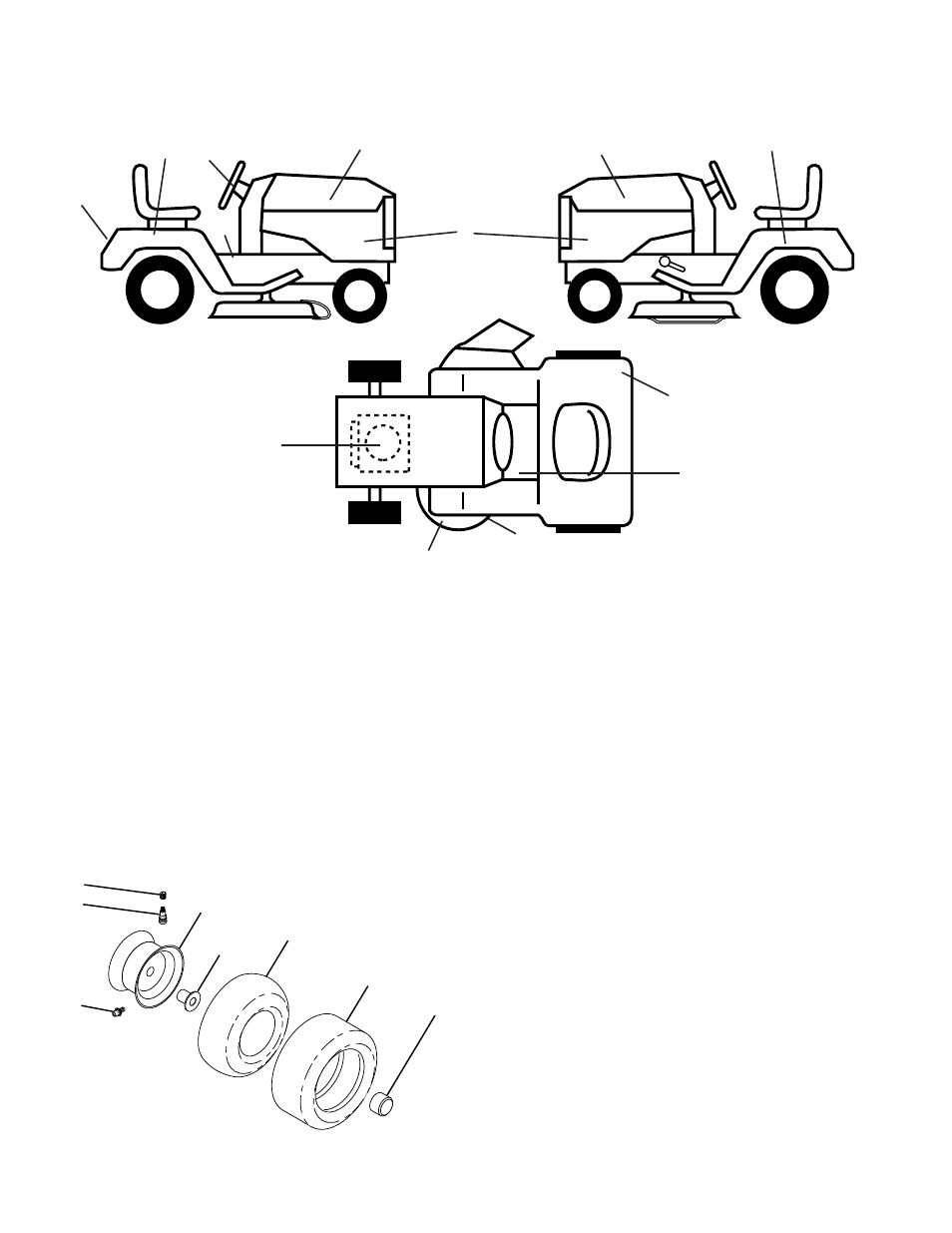

DECALS
WHEELS & TIRES
8
13
3
12
3
2
KEY PART
NO. NO. DESCRIPTION
1 532 40 03-31 Decal Side Panel
2 532 14 50-05 Decal Bat Dan/Poi P/L Symbols
3 532 40 20-32 Decal Hood
4 532 19 43-02 Decal Schematic
5 532 18 96-83 Decal Engine
6 532 18 12-49 Decal Clutch Brake
7 532 15 70-02 Decal Fender Danger 8 532 40 25-06 Decal Fender
9 532 40 29-87 Decal Automatic
12 532 16 88-69 Decal Tick Mark
13 532 18 58-81 Decal Strg Wheel Cap
15 532 19 33-07 Decal Operator's
- - 532 13 83-11 Decal Lift Handle (Lift Handle)
- - 532 16 69-60 Decal Bypass
- - 532 40 28-08 Manual Owner's
KEY PART
NO. NO. DESCRIPTION
5
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 12 41-57 Tire F Ts 15 x 6.0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 12 51-21 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 12 51-22 Rim Asm 8" rear Service
9 532 12 39-69 Tire R Ts 18 x 8.5-8 C. Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Tire, Sealant (10oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
15
7
4
6
1
9
