5

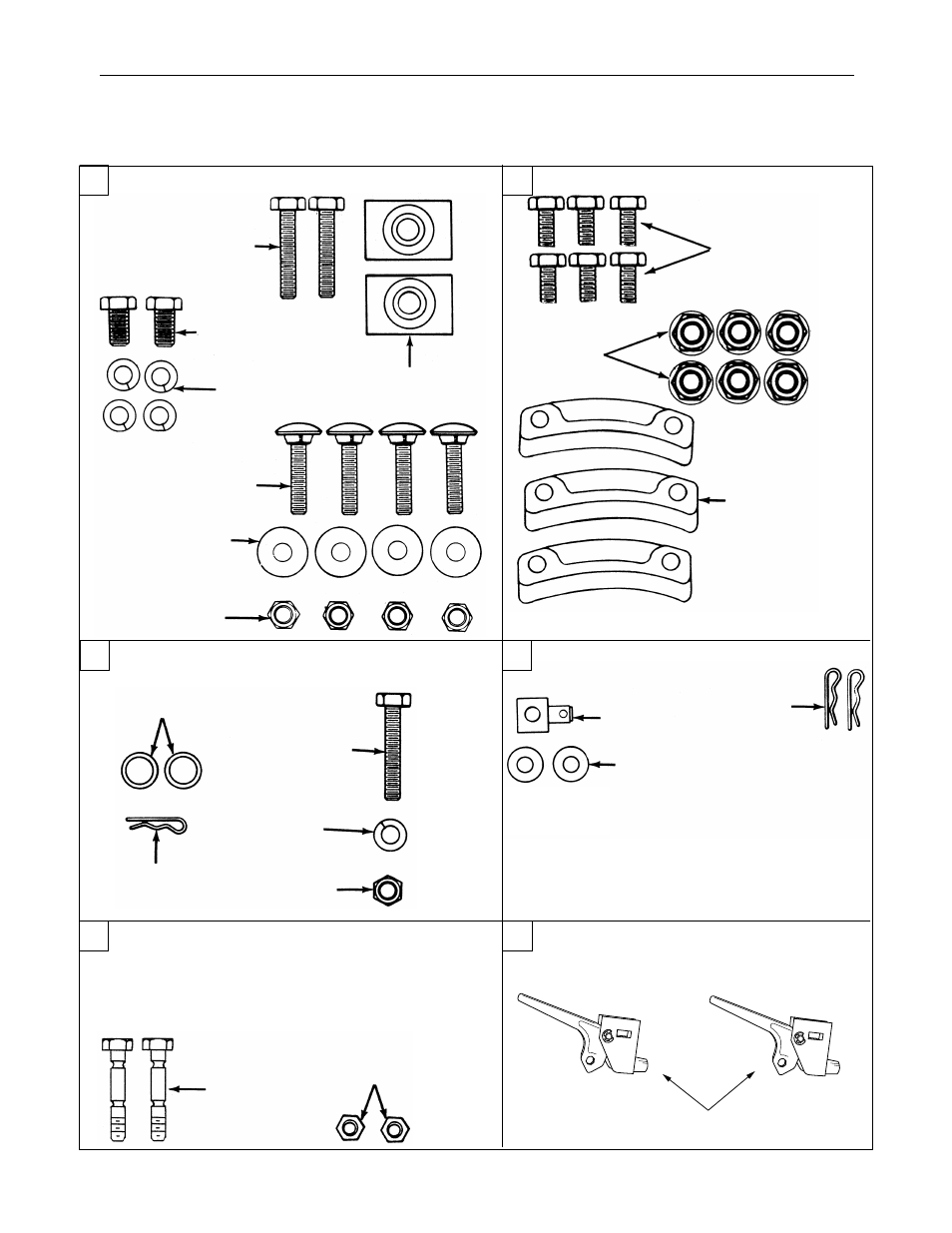

SECTION 4: CONTENTS OF HARDWARE PACK
Lay out the hardware according to the illustration for identification purposes. Parts are illustrated approximately
one-half size. Part numbers are shown in parentheses.
(Hardware pack may contain extra items which are not used on your unit.)
Hex Bolts
5/16-18 x 1-3/4" Long
(710-3180)
Hex Bolts
5/16-18 x 3/4" Long
(710-3008)
Handle Tabs
(784-5599)
Lock Washers
5/16" I.D.
(736-0119)
Carriage Bolts
5/16-18 x 1-1/2" Long
(710-0262)
Cupped Washers
5/16" I.D.
(736-0242)
Hex Nuts
5/16-18 Thread
(712-3010)
Chute Flange
Keepers
(731-0851A)
Hex Bolts
1/4-20 x 3/4" Long
(710-3015)
Hex Lock Nuts
1/4-20 Thread
(712-3027)
A
ATTACHING THE HANDLE ASSEMBLY
B
ATTACHING THE CHUTE ASSEMBLY
C
ATTACHING THE CHUTE CRANK
Flat Washers
3/8" I.D. x 5/8" O.D.
(736-0185)
Hairpin Clip
(714-0104)
Hex Bolt
5/16-18 x 1-1/2"
Long
(710-0442)
Lock Washer
5/16" I.D.
(736-0119)
Hex Nut
5/16-18 Thread
(712-3010)
Ferrule
(711-0677)
Hairpin Clips
(714-0104)
Flat Washers
5/16" I.D. x 5/8" O.D.
(736-0264)
D ATTACHING THE SHIFT ROD
AND CLUTCH CABLES
Hex Lock Nuts
5/16-18 Thread
(712-0429)
F
AUGER SHEAR BOLTS
Shear Bolts
5/16-18 x
1-1/2" Long
(710-0890A)
The augers are secured to the spiral shaft with two shear bolts
and hex lock nuts. If you hit a foreign object or ice jam, the snow
thrower is designed so that the bolts will shear. Two replace-
ment shear bolts and nuts are provided for your convenience.
Store in a safe place until needed.
G ATTACHING THE TRACK CONTROLS
Track Control Triggers
