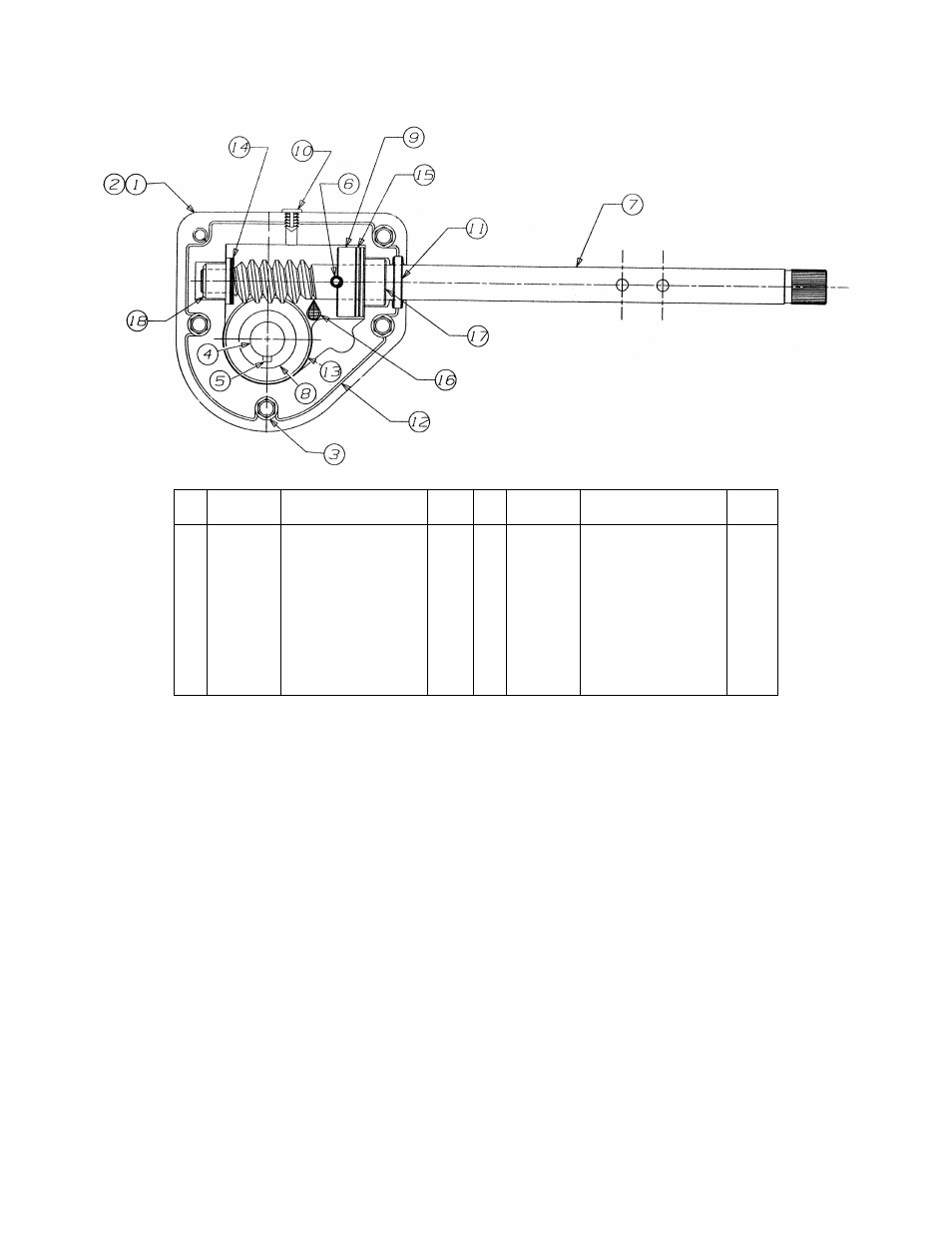

Gear Assembly

Ref.

No.

Part No.

Description

Qty.

Ref.

No.

Part No.

Description

Qty.

1

618-0123

Housing-L.H.

1

11

721-0327

Seal-Oil

1

2

618-0124

Housing-R.H.

1

12

721-0328

Locktite 5699

3

710-0642

Screw

5

13

736-0351

Washer-Flat

2

4

711-0909

Spiral Axle 26"

1

14

736-0369

Washer-Flat

4

5

714-0161

Key

1

15

736-0445

Washer-Flat

1

6

715-0143

Pin-Spiral

1

16

737-0168

Grease

1.5 oz.

7

717-0526

Shaft-Worm

1

17

741-0662

Bearing-Flange

1

8

717-0528

Gear-Worm

1

18

741-0663

Bearing-Flange

1

9

718-0186

Collar-Thrust

1

618-0121

Ass’y. Complete 26"

10 721-0325

Plug

1
