Page 52
MODEL 624504x4C
REPAIR PARTS
52
F-03101 1L

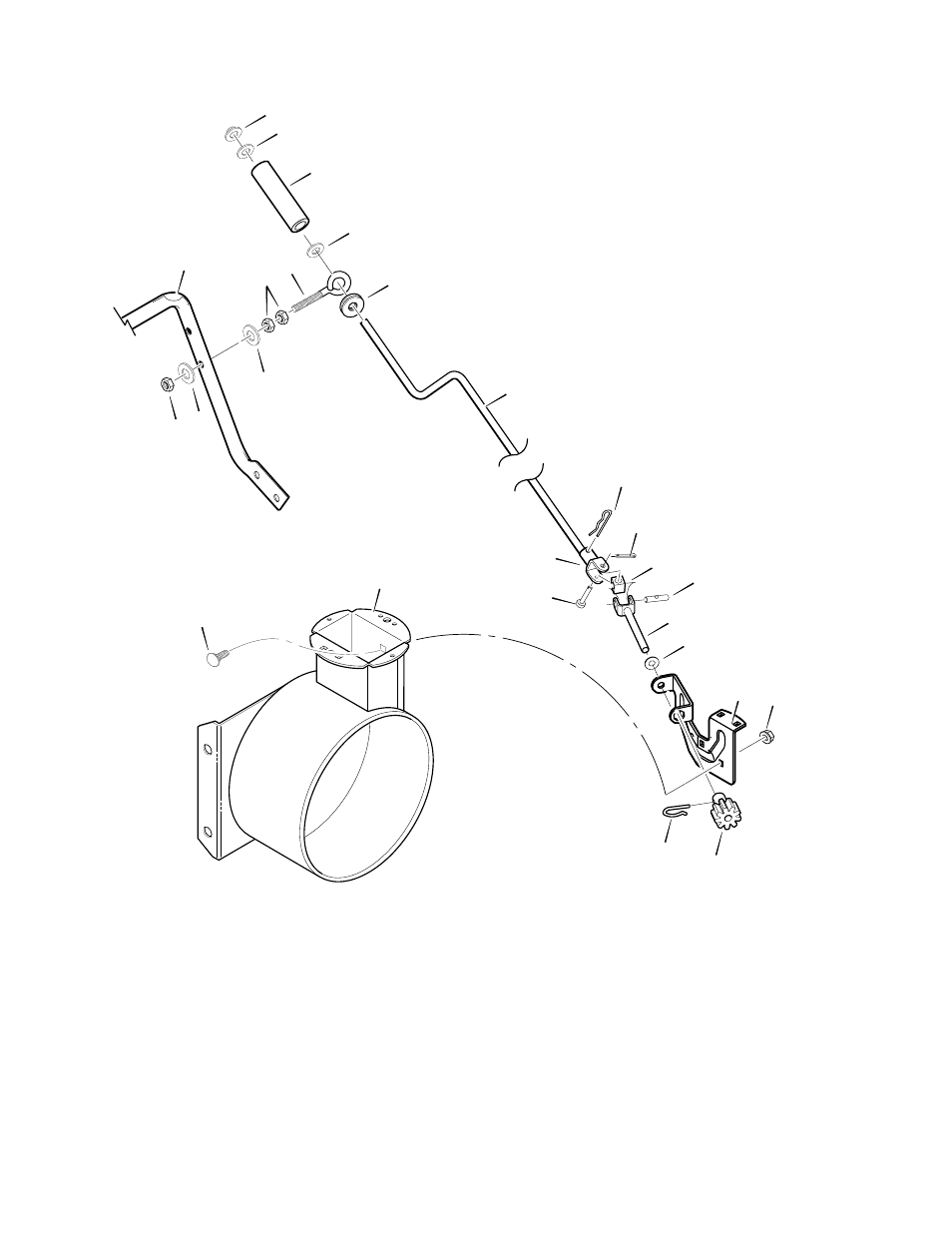

CHUTE ROD
CROD105B
856
855
854
855
861
860
863
864
864
867
Ref. Handle Assy
870
852-5
852-1 1
852-9
852-8
852-3
868
852-13
852-10
852-1
852-2
852-6
869
Ref. Auger Housing Assy
852-7
Key No.
Part No.
Description
Key No.
Part No.
Description
852-1
1501309 YZ
ASSEMBLY, YOKE & ROD
852-2
313431
WASHER, CURVED SPRING
852-3
1501067
GEAR, CHUTE ROTATION 9T
852-5
579493
PIN, COTTER
852-6
1501306E701
BRACKET, GEAR MOUNT
852-7
1501293
PIN, HAIR
852-8
1501075 YZ
ASSEMBLY, YOKE ADAPTER YZ
852-9
711682
PIN, HAIR
852-10
578060
PIN, UNIVERSAL JOINT
852-1 1
578309
PIN, CLEVIS
852-13
578063
HOUSING, UNIVERSAL
854
51443
KNOB, SLEEVE
855
309312
FLATWASHER
856
73664
NUT, PUSH ON 3/8”
860
581618
EYE BOLT 3/8-16X6.00
861
148
GROMMET, EYE BOLT
863
71045
NUT, 3/8-16 HEXJAM
864
71072
FLATWASHER .406X.81X.066
867
71046
NUT, 3/8-16 HEXNYL
868
002X98
BOLT, CARRIAGE 1/4-20 X 1.00
869
15X145
NUT
870
1501074 YZ
CRANK, ASSY CHUTE
