Engine – Murray 624504x4C User Manual
Page 41
MODEL 624504x4C
REPAIR PARTS
41
F-03101 1L

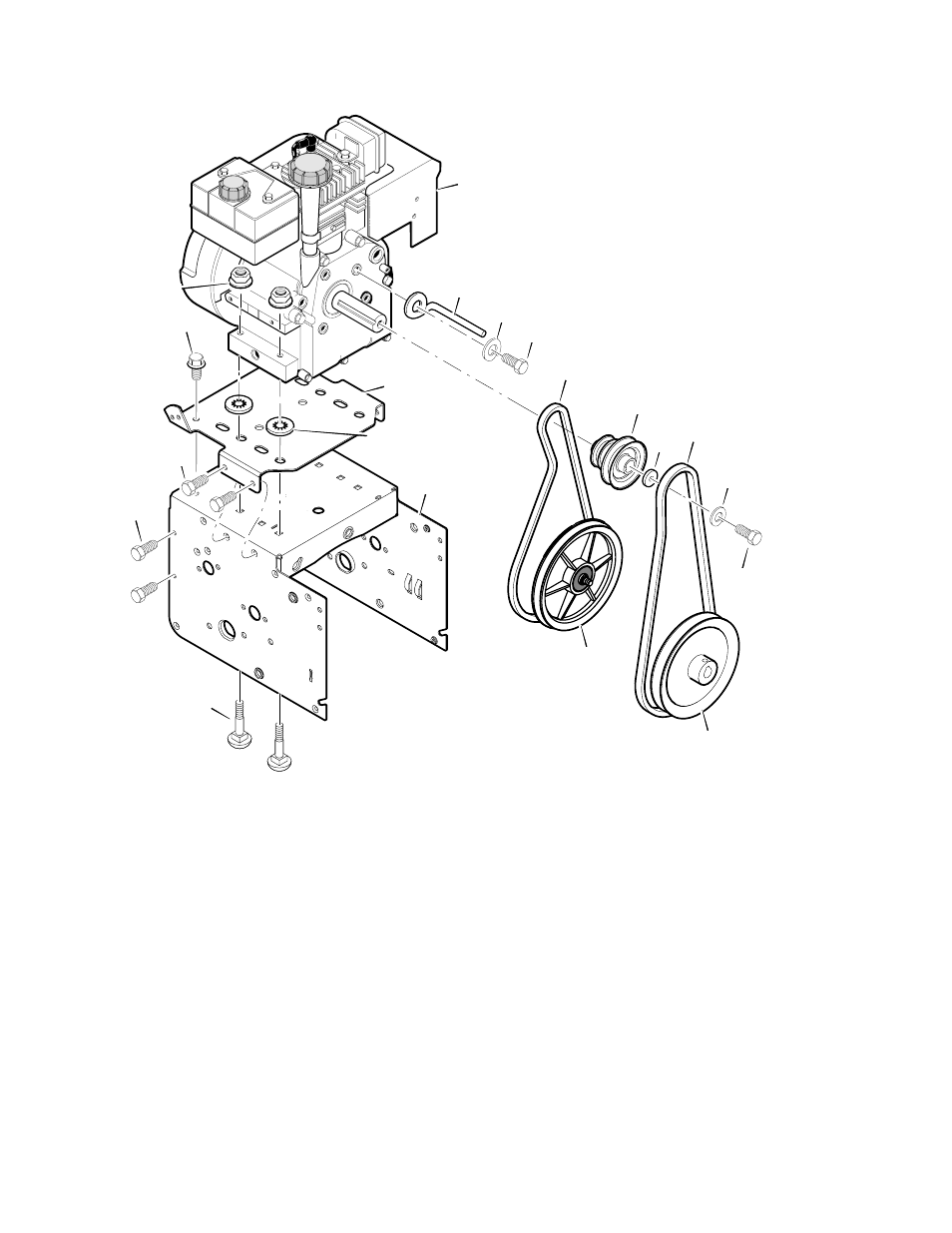

ENGINE
Б
ББ
ББ
25-1
2
3
25-4
25-2
25-3
6
5
20
22
24
18
8
10
12
16
Ref.Drive Page
Ref. Auger Housing Page
14
25-2
Key No.
Part No.
Description
2
------
ENGINE
3
002x97
BOLT, CARRIAGE 5/16-18
5
028x76
RETAINER, PUSH
6
710026
NUT 5/16-18
8
1501109
PULLEY, ENGINE
10
710247
WASHER
12
71063
WASHER .38ID
14
71015
SCREW, 3/8-24X1.00
16
579932
BELT, V
18
585416
BELT, V 4L
20
1501201
GUIDE, BELT
22
71060
WASHER .31X.58X.08
24
710097
SCREW, 5/16-24X .75
25
------
FRAME, MOTORBOX (5-11HP)
25-1
1501062E245
PLATE, ENGINE MOUNT
25-2
310169
SCREW, TAP 1/4-20 X .63
25-3
25x020
SCREW, TAP 5/16-18 X .50
25-4
1501049E245
FRAME, MOTOR BOX
--
F-03101 1L
OWNER’S MANUAL
