7

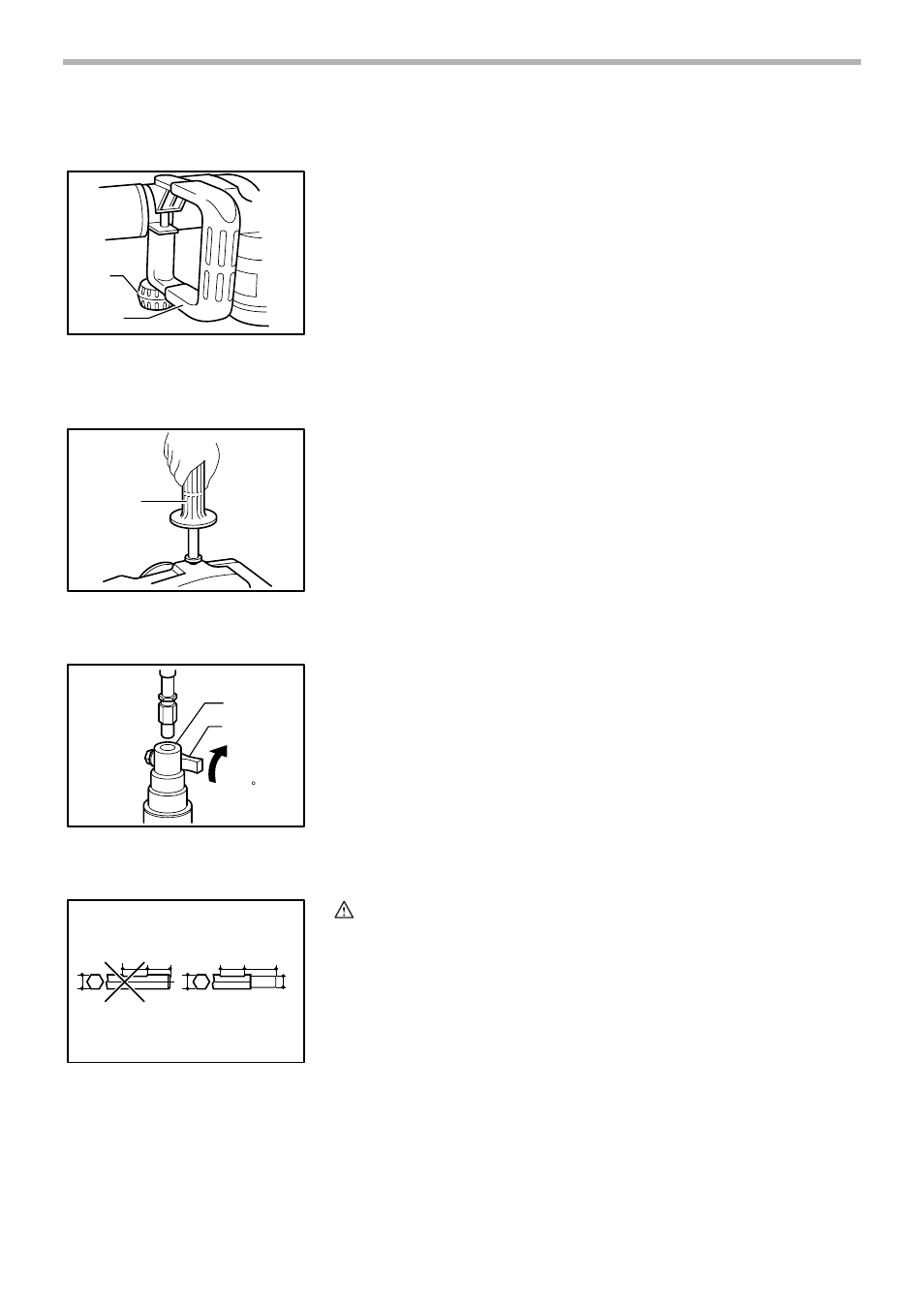

Side handle

Raise the side handle. The side handle can be secured in
four position (right, left, up and down). To secure the side
handle, tighten the clamp nut securely. Never secure the side
handle in other than the above four positions.

Side grip

The side grip is convenient for downward drilling or chipping
operations. Screw the side grip on the tool securely. The side
grip can be installed on either side of the tool for right or left
hand operation.

Installing or removing the bit

Insert the bit into the tool holder as far as it will go. Pull out
and turn the tool retainer 180 degrees. Then release it to
secure the bit.

CAUTION:

Never use A-type shank bits. They can cause damage to
the tool.

To remove the bit, follow the installation procedure in reverse.

1. Clamp nut

2. Side handle

1

2

003140

1. Side grip

1

003148

1. Tool holder

2. Tool retainer

1

2

180

003152

19

37

38.5

37

27

16ø

19

A

B

003155
