Step 3 Place the assembled freestanding screen in front of the fi replace
in a close proximity to the glass door assembly.
Step 4 Hook the chain to the unit by dropping the free end of chain in the
slot provided on the left side of modesty panel. Check to be sure
that the chain is attached securely. See Figure 3.
Slot on Left Side
of Fireplace
Chain
Screen Assembly
Fireplace

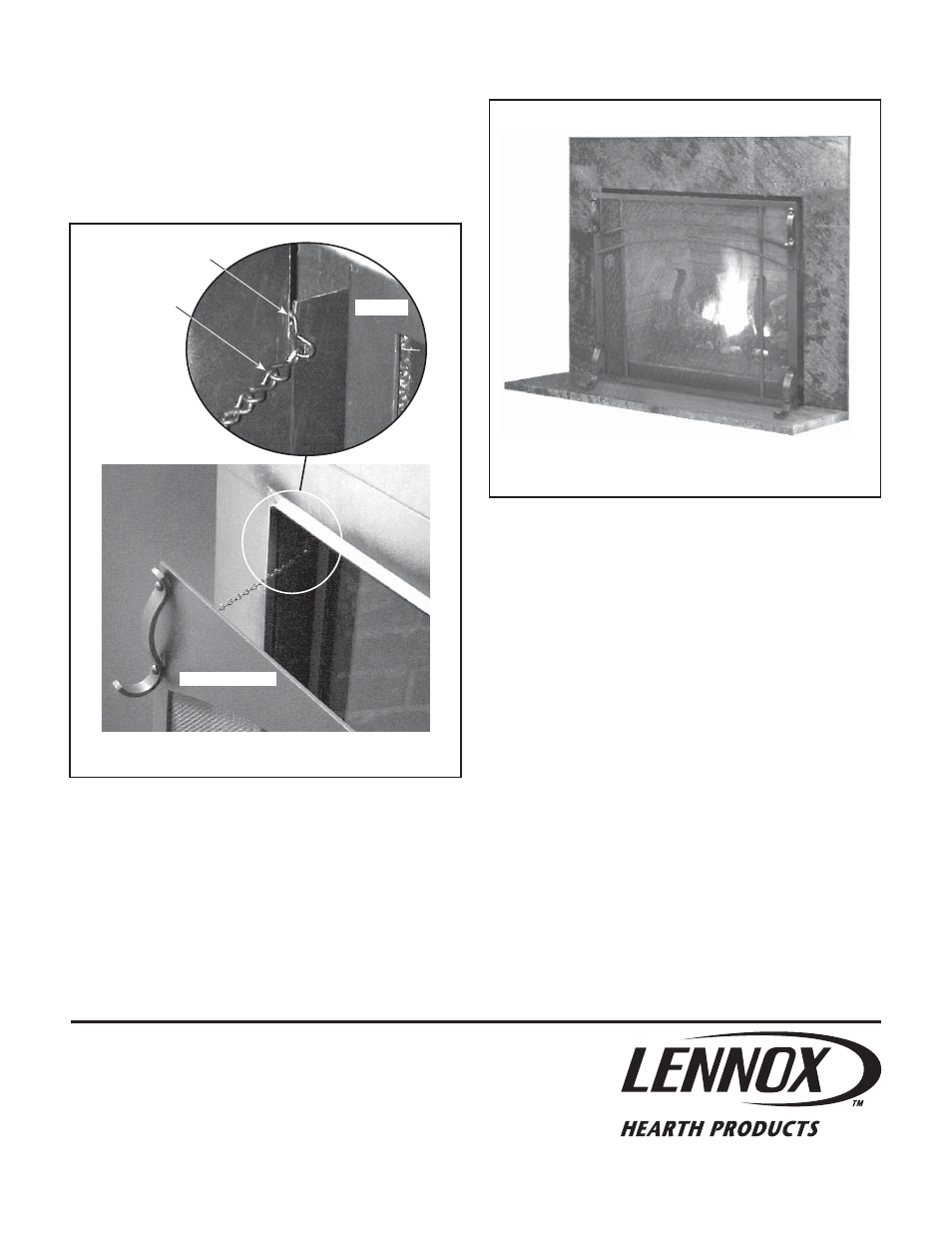

Figure 3 - Attach Chain
Figure 4 - Completed Installation
Note: The “no-tip” chain feature provided with this screen is designed
to work with the following Montebello™ models:
H4793 LSM40MN-2
H4794 LSM40MP-2
H4797 LSM40EN-2
H4795 LSM45MN-2
H4796 LSM45MP-2
H4798 LSM45EN-2
If you have a previously released model of the Montebello™, there will
not be a slot on the fi replace for the chain to attach to.
