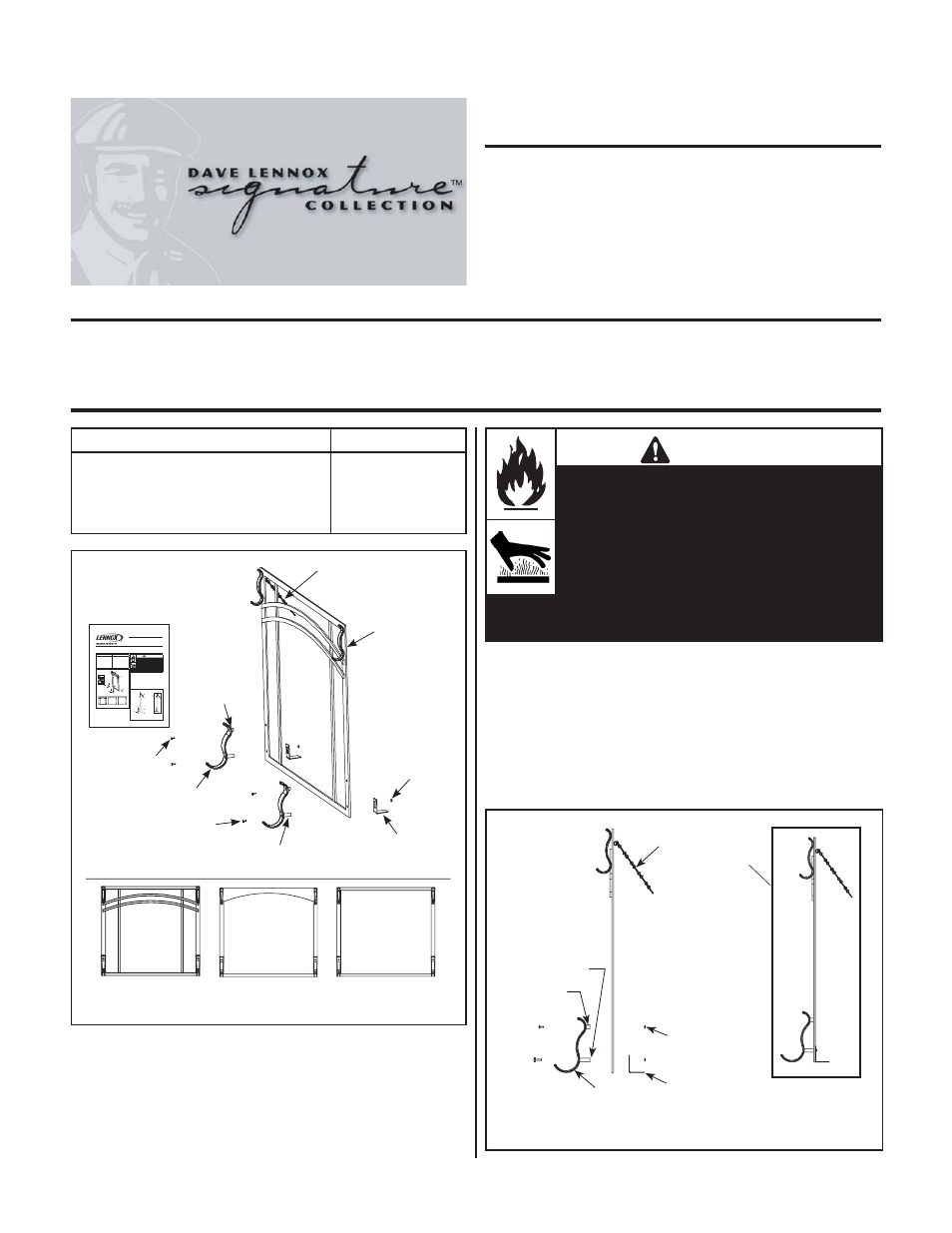

GENERAL INFORMATION

INSTALLATION INSTRUCTIONS FOR DECORATIVE SCREEN KITS FOR USE WITH MONTEBELLO

®

DAVE LENNOX SIGNATURE COLLECTION MODELS LSM40-2 & LSM45-2 DIRECT VENT GAS FIREPLACES

INSTALLATION INSTRUCTIONS

Step 1 Using a 7/32” allen wrench and 7/16” nut driver, loosely assemble

the parts as shown in Figure 1 and Figure 2 (do not tighten yet).

Step 2 Adjust the L-bracket to the height needed for this installation (slot

allows up to 1 inch vertical adjustment). When you are satisfi ed
that the screen will stand stable in front of the fi replace, then
tighten the nuts on both sides.

750,184M REV. B
05/2006

LENNOX HEARTH PRODUCTS

KITS AND ACCESSORIES

Figure 1

Kit Contents:

Tools Required:

1 Ea. Screen Assembly
2 Ea. Bottom Legs
2 Ea. Long Screws
2 Ea. Short Screws
2 Ea. Long Spacers

7/32” Allen Wrench
7/16” Nut Driver

H5051

DASK-LSM40-2 Dual Arch Screen Kit, LSM40-2

H5052

SK-LSM40-2

Classic Screen Kit, LSM40-2

H5053

ASK-LSM40-2 Arch Screen Kit, LSM40-2

H5054

DASK-LSM45-2 Dual Arch Screen Kit, LSM45-2

H5055

SK-LSM45-2

Classic Screen Kit, LSM45-2

H5056

ASK-LSM45-2 Arch Screen Kit, LSM45-2

These optional decorative freestanding fi rescreen panels are designed
to enhance the beauty of the fi replace and helps prevent direct human
contact with the hot glass surface.

A chain is also provided for additional safety. When attached to the
fi replace, it helps prevent the screen from tipping.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Long Screws

Short Screws

Long Spacers

Short
Spacers

Nuts

L- Brackets

Contoured Legs

Dual Arch Screen

Arch Screen

Screen

L- Bracket

Nut

Screen
Assembly

Short Spacer

Long Spacer

Contoured Leg

Figure 2 - Assemble Legs & L-Brackets to Screen

Side View

Fireplace Side

Front Side

Assembly
Completed

1

WARNINGS

Hot! Do not touch! These decorative screen
panels are NOT heat guards. The glass behind the
screens will be hot during operation and will retain
heat for a while after shutting off the appliance.
Severe burns may result. Carefully supervise
children in the same room as appliance.

• As with any similar heating appliance, surfaces of the

frame, the door and appliance can become very hot.

Kit Contents
(dual arch screen shown)

Screen
Assembly

Chain

Instruction Sheet

Chain

GENERAL INFORMATION

INSTALLATION INSTRUCTIONS FOR DECORATIVE SCREEN KITS FOR USE WITH MONTEBELLO®

DAVE LENNOX SIGNATURE SERIES MODELS LSM40-2 & LSM45-2 DIRECT VENT GAS FIREPLACES

INSTALLATION INSTRUCTIONS

Step 1 Using a 7/32” allen wrench and 7/16” nut driver, loosely assemble

the parts as shown in Figure 1 and Figure 2 (do not tighten yet).

Step 2 Adjust the L-bracket to the height needed for this installation (slot

allows up to 1 inch vertical adjustment). When you are satisfi ed
that the screen will stand stable in front of the fi replace, then
tighten the nuts on both sides.

750,184M REV. A

04/2006

LENNOX HEARTH PRODUCTS

KITS AND ACCESSORIES

Figure 1

Kit Contents:

Tools Required:

1 Ea. Screen Assembly
2 Ea. Bottom Legs
2 Ea. Long Screws
2 Ea. Short Screws
2 Ea. Long Spacers
2 Ea. Short Spacers
4 Ea. Nuts
2 Ea. L- Brackets
1 Ea. Instruction Sheet

7/32” Allen Wrench
7/16” Nut Driver

H2229

DASK-LSM40

Dual Arch Screen Kit, LSM40-2

H2230

SK-LSM40

Screen Kit, LSM40-2

H2231

ASK-LSM40

Arch Screen Kit, LSM40-2

H2232

DASK-LSM45

Dual Arch Screen Kit, LSM45-2

H2233

SK-LSM45

Screen Kit, LSM45-2

H2234

ASK-LSM45

Arch Screen Kit, LSM45-2

These optional decorative freestanding fi rescreen panels are designed
to enhance the beauty of the fi replace and helps prevent direct human
contact with the hot glass surface.

A chain is also provided for additional safety. When attached to the
fi replace, it helps prevent the screen from tipping.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Long Screws

Short Screws

Long Spacers

Short
Spacers

Nuts

L- Brackets

Contoured Legs

Dual Arch Screen

Arch Screen

Screen

L- Bracket

Nut

Screen
Assembly

Short Spacer

Long Spacer

Contoured Leg

Figure 2 - Assemble Legs & L-Brackets to Screen

Side View

Fireplace Side

Front Side

Assembly
Completed

1

WARNINGS

Hot! Do not touch! These decorative screen
panels are NOT heat guards. The glass behind the
screens will be hot during operation and will retain
heat for a while after shutting off the appliance.
Severe burns may result. Carefully supervise
children in the same room as appliance.

• As with any similar heating appliance, surfaces of the

frame, the door and appliance can become very hot.

Kit Contents
(dual arch screen shown)

Screen
Assembly

Chain

Instruction Sheet

GENERAL INFORMATION

INSTALLATION INSTRUCTIONS FOR DECORATIVE SCREEN KITS FOR USE WITH MONTEBELLO
DAVE LENNOX SIGNATURE SERIES MODELS LSM40 & LSM45 DIRECT VENT GAS FIREPLACES

INSTALLATION INSTRUCTIONS

Step 1 Using an 7/32” Allen Wrench and 7/16” Nut Driver, loosely as-
semble the parts as shown in Figure 1 and Figure 2 (do not
tighten yet).
Step 2 Adjust the L-Bracket to height needed for this installation (slot
allows up to 1 inch vertical adjustment). When you are satisfi ed
that the screen will stand stable in front of the fi replace, then
tighten the nuts on both sides (snug only - do not over tighten).
Step 3 Place the assembled freestanding screen in front of the fi replace
when in use, in a close proximity to the glass door assembly.

750,184M REV. NC

3/2005

LENNOX HEARTH PRODUCTS
KITS AND ACCESSORIES

Figure 1 - Kit Contents (dual arch screen shown)

Kit Contents:

Tools Required:

1 ea. Screen Assembly
2 ea. long screws
2 ea. short screws
2 ea. long spacers
2 ea. short spacers
4 ea. nuts
2 ea. L- brackets
1 ea. Instruction Sheet

7/32” Allen Wrench
7/16” Nut Driver

Printed in U.S.A. © LENNOX HEARTH PRODUCTS 2005

P/N 750,184M REV. NC 3/2005

Page 1 of 1

Instruction Sheet

H2229

DASK-LSM40

Dual Arch Screen Kit, LSM40

H2230 SK-LSM40

Screen

Kit,

LSM40

H2231

ASK-LSM40

Arch Screen Kit, LSM40

H2232

DASK-LSM45

Dual Arch Screen Kit, LSM45

H2233 SK-LSM45

Screen

Kit,

LSM45

H2234

ASK-LSM45

Arch Screen Kit, LSM45

These optional decorative freestanding fi rescreen panels are designed to
enhance the beauty of the fi rpleplace and to provide some protection from
any accidental contact with the hot glass surface.

Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifi cations, prices and the discontinuance of colors, styles and products.
Consult your local distributor for fi replace code information.

LENNOX HEARTH PRODUCTS
1110 West Taft Avenue
Orange, CA 92865

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Screen
Assembly

Long Screws

short screws

Long Spacers

short spacers

Nuts

L- Brackets

Contoured Legs

Dual Arch Screen

Arch Screen

Screen

Figure 3 - Screen Styles

L- Bracket

Nuts

Screen
Assembly

Short Spacers

Long Spacers

Contoured Leg

Figure 2 - Assemble Legs & L-Brackets to Screen

Side View

Fireplace Side

Front Side

Assembly
Completed

Chain

LENNOX HEARTH PRODUCTS

2 Ea. Short Spacers
4 Ea. Nuts
2 Ea. L- Brackets
1 Ea. Instruction Sheet
