Basic connections
This projector can be connected with various devices such as a VCR, video camera, videodisc player, and personal
computer that have analog RGB output connectors.
Important:
• Make sure that the connected device is turned off before starting connection.
• Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the
plug. Do not pull the cord.
• When the projector and the connected devices are located too close to each other, the projected image may be
affected by their interference.
• See the owner’s guide of each device for details about its connections.

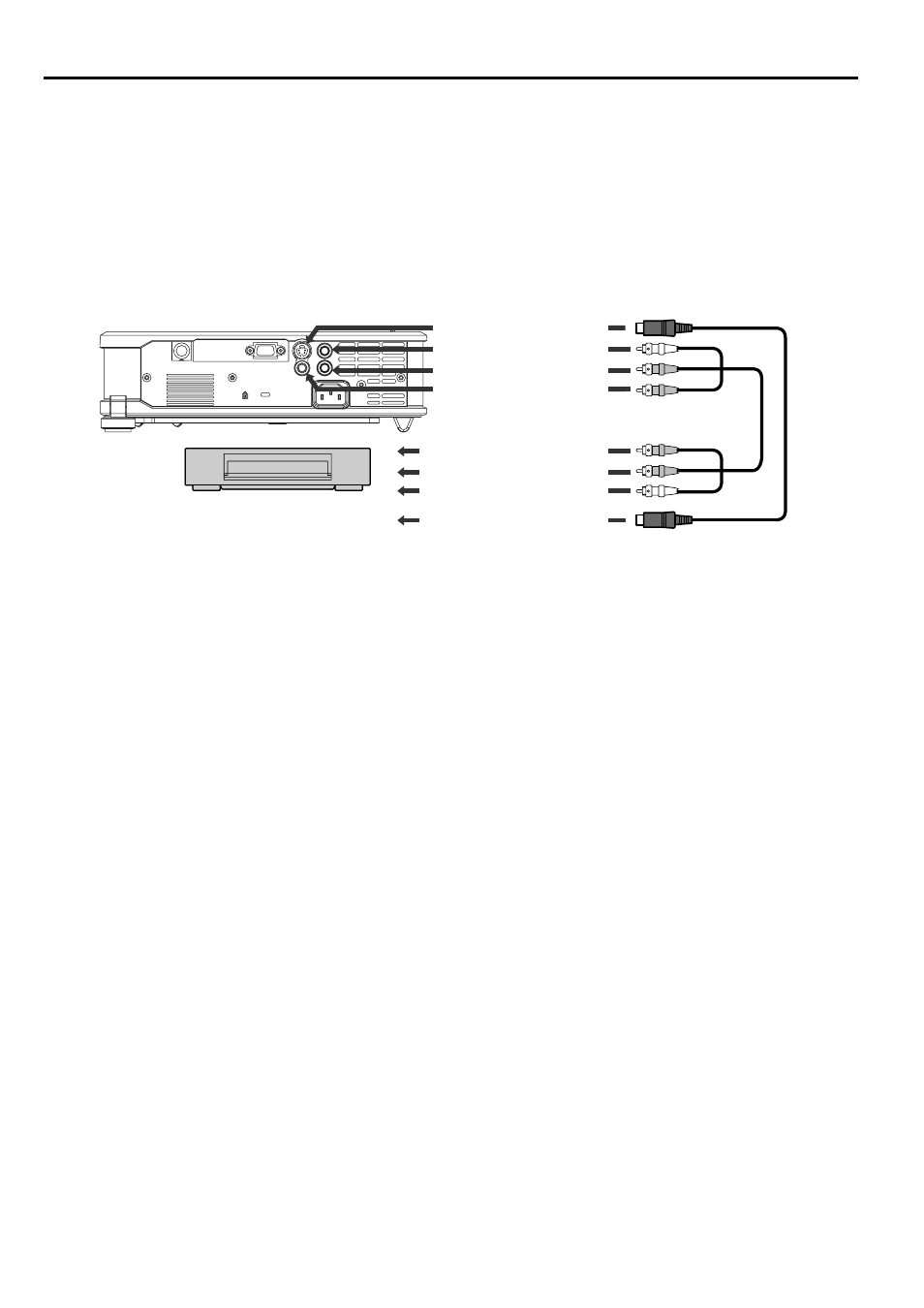

Projector + AV device
Important:
• Match the colors of the video and audio plugs on the AV cable with those of the terminals.
• Speaker output is mono.
• Set AUDIO MODE in the FEATURE menu to VIDEO to hear the audio only when the input source is VIDEO.
(See page 18.)
S-VIDEO IN
VIDEO IN
AUDIO IN
VCR, etc
to video output
to audio output
to S-video ontput
