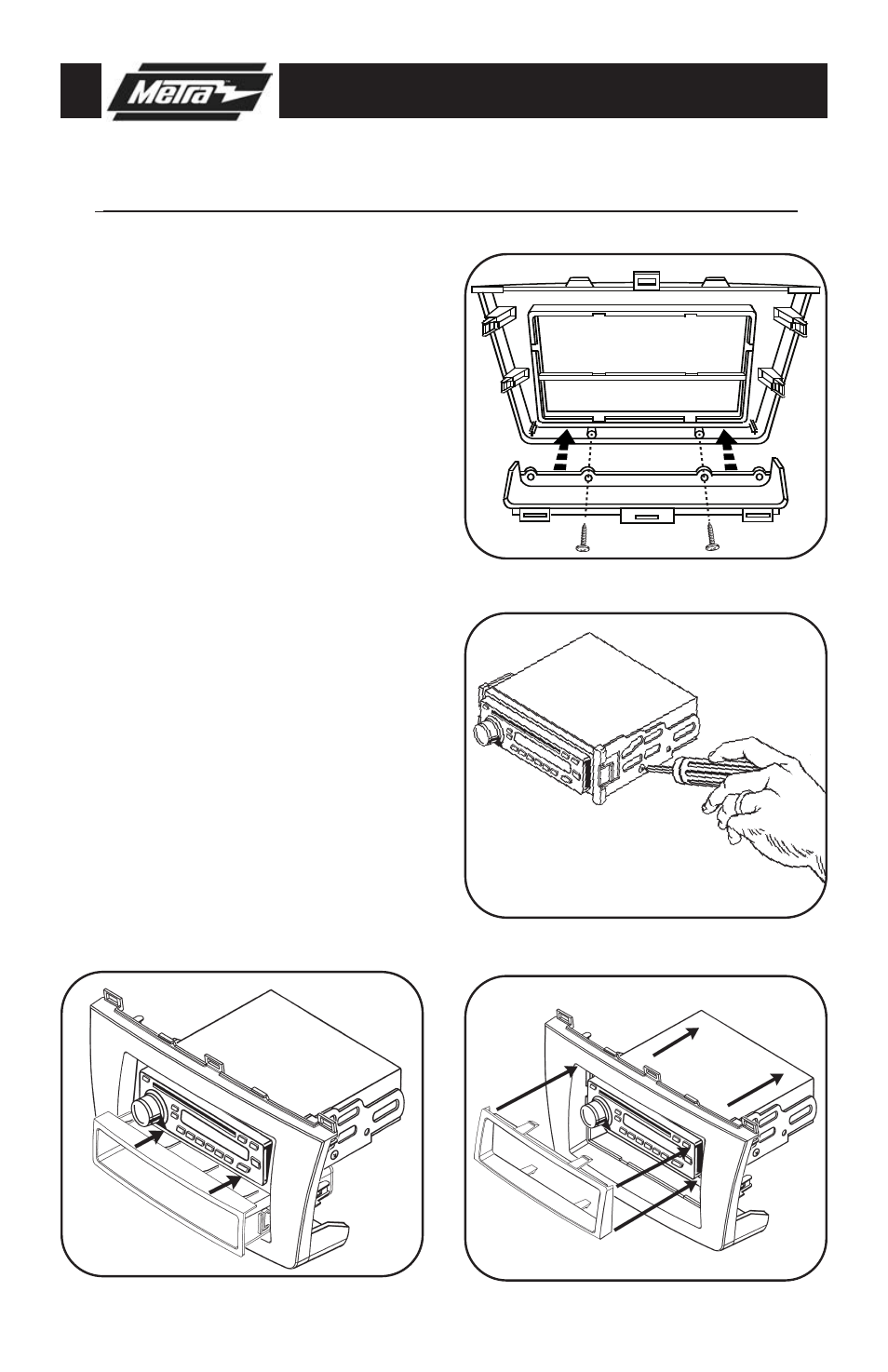

99-7511S KIT ASSEMBLY
3
B
A
REAR OF RADIO HOUSING
FILLER TRIM PANEL
C
D
ISO MOUNT RADIO PROVISION
Mount the ISO Brackets to the radio
using the screws supplied with the
radio. (Figure B) 2
Slide the radio into the radio housing
until it snaps into place. (Figure C) 3
Snap the Trim Plate onto the front of
the Radio Housing. (Figure C) 4
Snap the pocket into the bottom open-
ing of the radio housing. (Figure D) 5
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.
Attach the filler trim panel to the back
of the radio housing at the bottom
edge. (Figure A) 1
