N/B Maintenance
N/B Maintenance

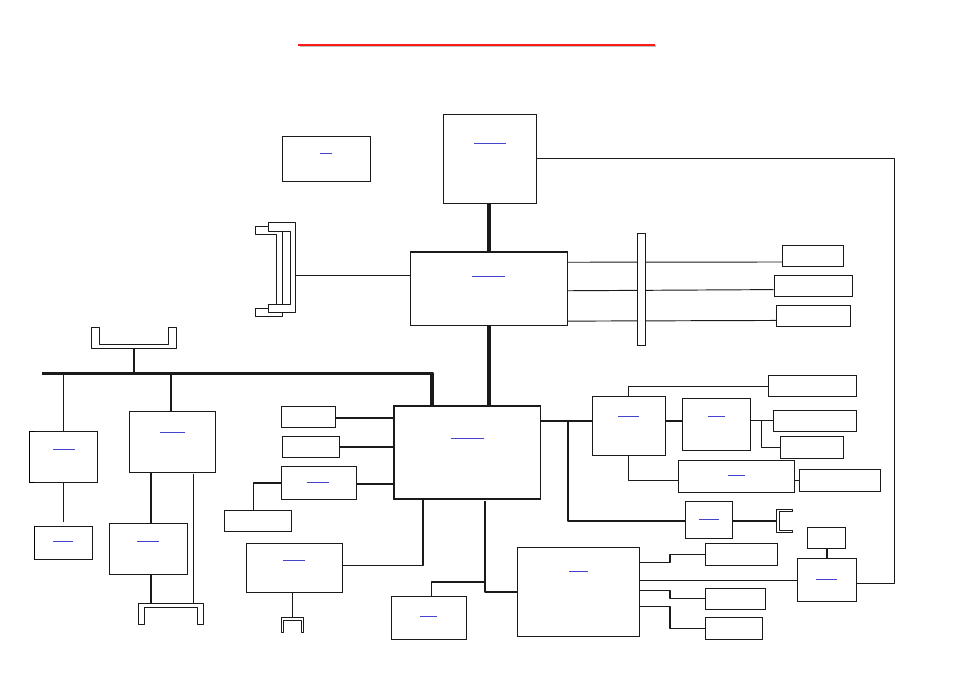

6. System Block Diagram
DVI Connector
RGB Signal
Flat Panel
LVDS Signal
200 Pins DDR2 SO-DIMM Socket * 2
USB * 4
FSB
U711
Intel CPU
Dothan
U710
North Bridge
915PM
U715
Card Bus
CB712
U509
Power Switch
CP2211A
U19
Amplifier
TPA0212
J507
M.D.C
RJ-11 Jack
U517
Audio Codec
ALC655
Mic-in Connector
Internal Speaker
Headphone
CD-ROM
U724
SATA Bridge
U709
South Bridge
ICH6-M
U717
LAN Controller
RTL8110SBL
RJ-45 Jack
DMI
PCMCIA
Slot
U722
IEEE1394
VT6301T
PCI Bus
FAN
Power Button
Keyboard
Touch Pad
U13
Keyboard BIOS
Winbond
W83L950D
LPC BUS
IDE
U7
Clock Generator
ICS954226
U14
System BIOS
MINI PCI Slot
PCI-E_LAN
FWH BUS
U505
ADT7460
SMBUS
THRMDA/THRMDC
TV Connector
TV Signal
PATA HDD
MXM_Connector
U18
SUBWOOFER AMP
Subwoofer Jack
J719
1394 port
