Flown Vertically
Flown Horizontally
Flown Horizontally with
Mackie HD1801 subwoofer
Important Rigging Reminder:
To reiterate, Mackie is not in the business of providing
complete rigging systems, either as designers,
manufacturers, or installers. It is the responsibility of
the installer to provide a properly engineered, load-
certified rigging system for supporting the loudspeaker
from structure.

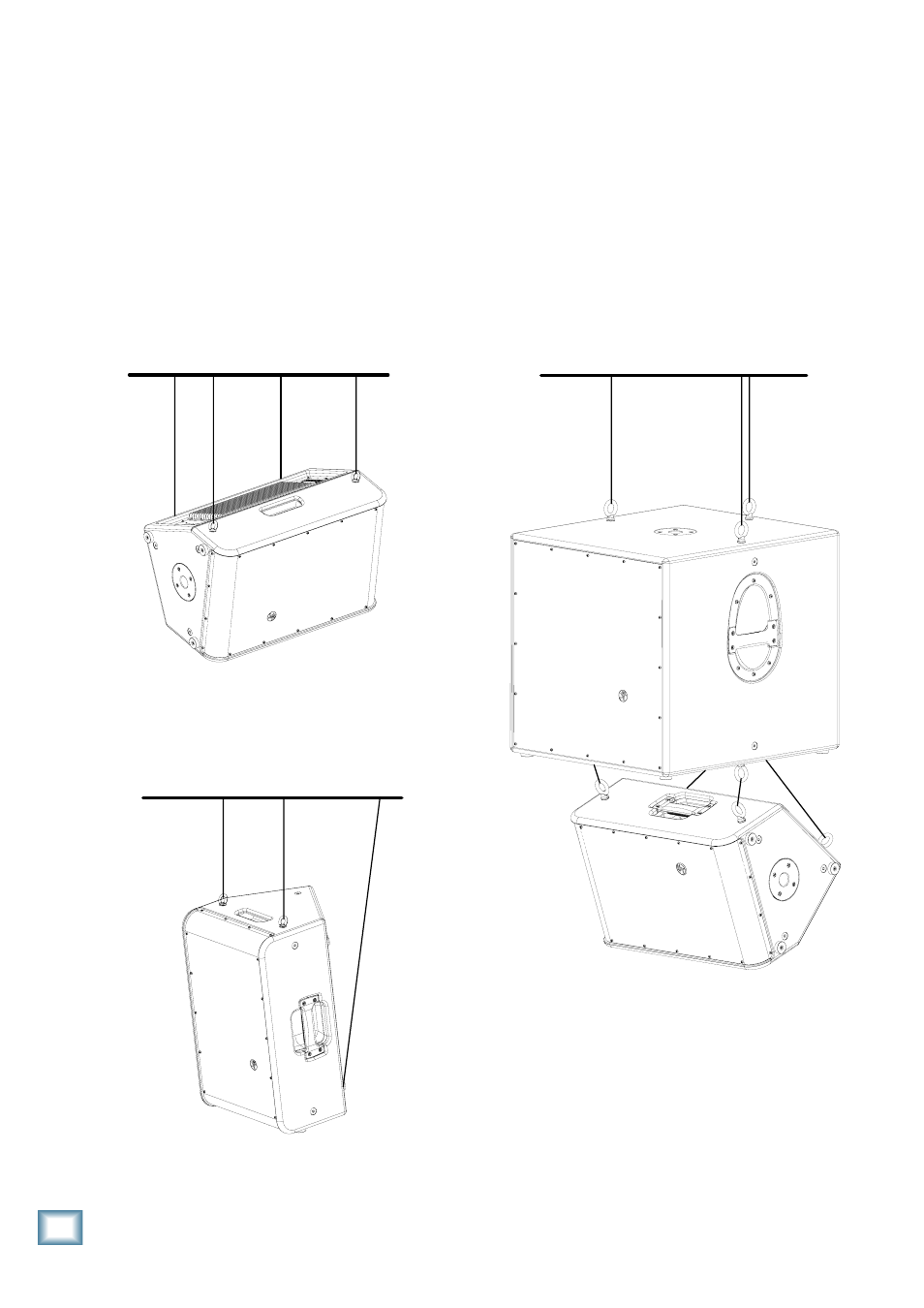

The illustrations provided below are just a couple of
rigging possibilities.
12
HD1221
HD1221
Top Fly
Points
Top Fly
Points
Side Fly Points
Side Fly Points
Rear Fly Points
(adjust angle)
Rear Fly Points
(adjust angle)
Lower Rear
Fly Point
(adjusts angle)
