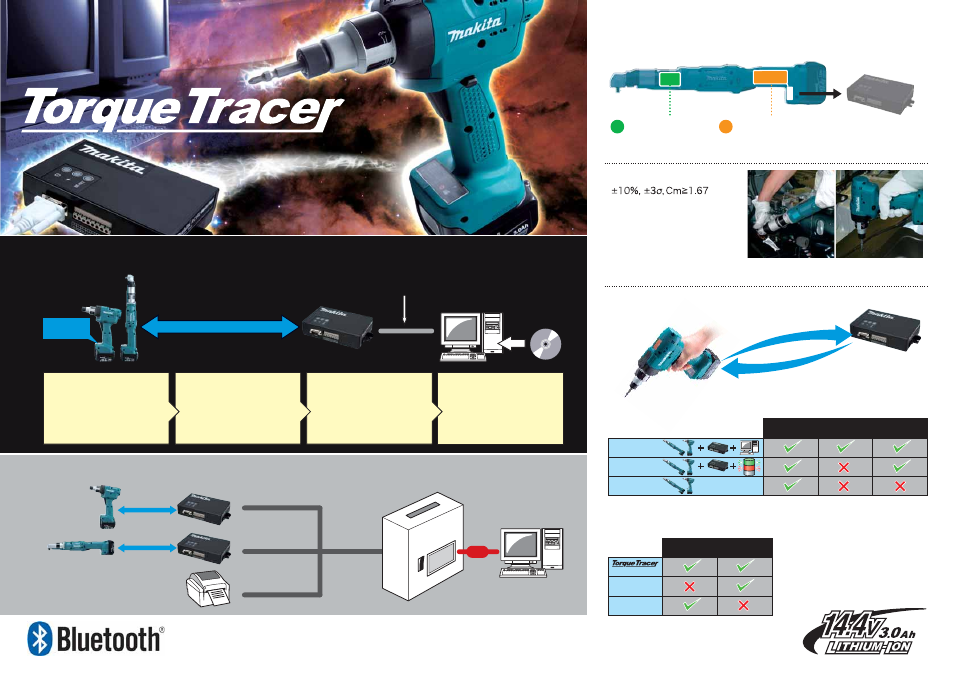

Makita Wireless Fastening Data Capture System Makita Wireless Fastening Data Capture System
Tool + Receiver + Your PC (Fastening Data Saving)
Comparison of function
by combination of Tool and other Devices
Can be extended to your peripheral devices by your PLC (Programmable logic controller)
Receiver
RCV02 (option)
Receiver
RCV02 (option)
Receiver
RCV02 (option)
Your printer or
bar-code reader
Your PC
Your PLC
Your PC Software
CD-ROM SRCV02
(Option)
RS-232C Cable (option)
USB Serial Adapter Set (option) if necessary
The system uses one-to-one connection
between the tool and Receiver
Equipped with :
*Output terminal for OK/NOK judgment of
each fastening and Batch count (Counting
of the number of OK fastening processes)
*Input terminal for resetting fastening
process
This system enables to transmit various fastening data from the tool and to save them in your PC via Receiver RCV02
By installing the software in CD-ROM SRCV02
on your PC, interface can be established
between users and the tool, enabling to
program and monitor the tool from the PC.
*The software is available in English and Italian
*Programmed settings can be protected by
setting a password
Built-in
Transmitter
LAN
Preventing
human error Saving
torque data Outputting signal
from receiver to light
Tool + Receiver
+ Your PC
Tool + Receiver
Tool only
(exc. BFT041R)
Your beacon light
(exc. BFT041R)
Comparison of function by combination
of Tool and other Devices
Cordless Saving
Torque Data
BFT/BFL series
Competitor "A"
Competitor "B"
(exc. BFT041R)
Highly Reliable Communication System by Bluetooth
/// Self Torque Check System by two independent devices
interactive communication and a strong resistance against radio interference
Torque Calculator
monitoring electric current and rotation
Mechanical Clutch
Setting fastening torque
Tool can be operated freely within
about 10m (33 feet) range from Receiver
/// Easy to operate thanks to wireless
/// High Torque Accuracy
1 2
Receiver
The followings are main data that can be
transmitted:
Batch count
(Counting of the number of OK fastening processes)
Torque value *
Turning angle *
Tool ID
Error code
*Model BFT041R cannot transmit these data
Fastening data can be temporarily saved in
the tool when transmission is shut up ; up
to nine data can be temporarily saved.
OK
NOK
Bluetooth unit
Bluetooth wir Bluetooth wireless connection eless connection Bluetooth wireless connection
10m (33feet) 10m (33feet) 10m (33feet)
