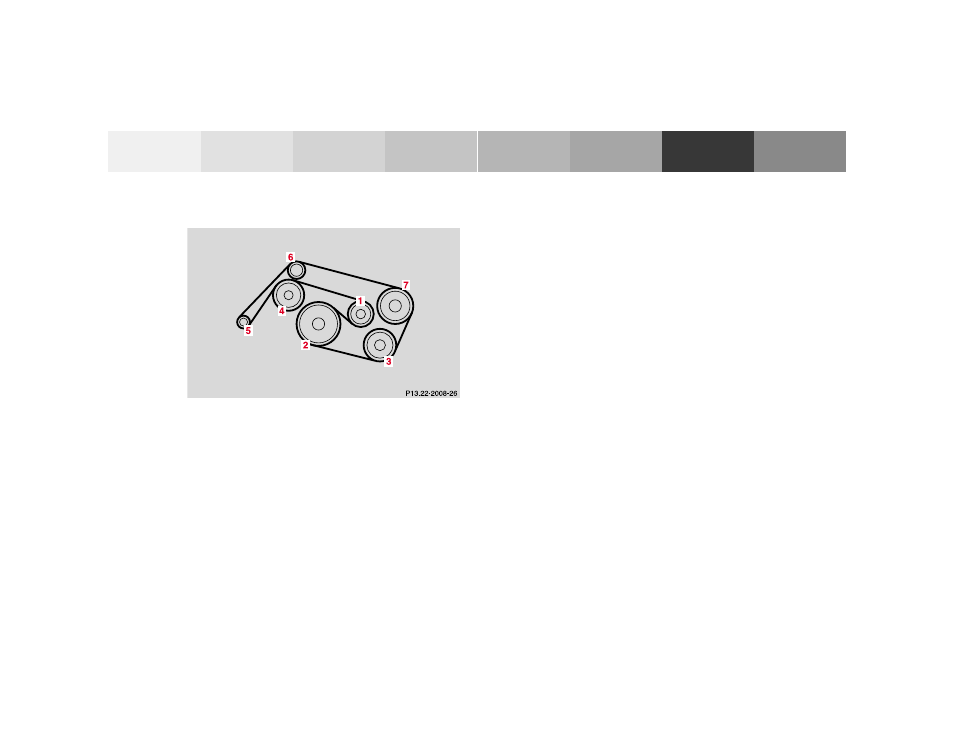

Layout of poly-V-belt drive
1
Automatic belt tensioner
2
Crankshaft
3
Air conditioner compressor
4
Coolant pump
5
Generator (alternator)
6
Idler pulley
7
Power steering pump
For dimensions of the poly-V-belt, see technical data.
