Emergency operation of Skyview Top
The Skyview Top can be opened or closed manually
should an electrical malfunction occur.

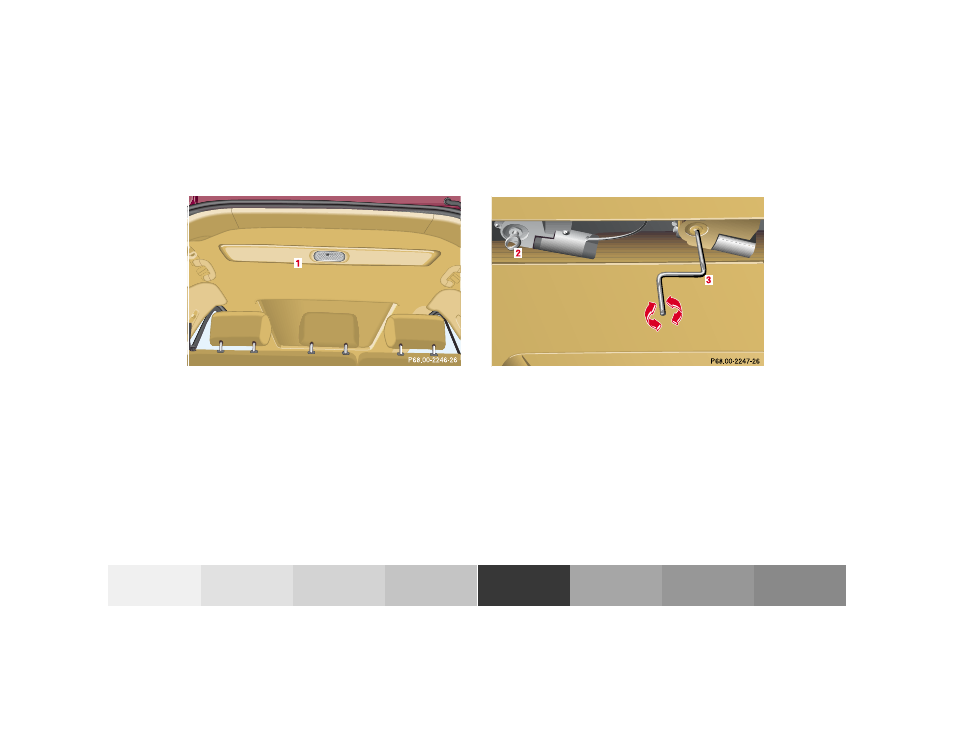

The drive for the Skyview Top is located behind a
cover (1) in the rear compartment headliner.
Remove cover to gain access to the drive motors.
Obtain crank (3) (located at left side motor).
Remove plug (2) from holder, located next to the motors,
and insert into left side drive motor to declutch the
motor.
Insert crank (3) into right side motor.
Note:
Push crank upward while turning it, to disengage the
electric motor.
To close the Skyview Top: turn crank clockwise.
To open the Skyview Top: turn crank counterclockwise.
