Chapter 3

INSTALLATION

This chapter explains how to unpack, configure, mount, and connect the

Maxtor Quickview 300 80/100/120/160/200/250/300GB PATA hard

disk drive prior to operation. It also explains how to start up and operate

the drive.

3.1

SPACE REQUIREMENTS

The Quickview 300 hard disk drives are shipped without a faceplate.

Figure 3-1 shows the external dimensions of the Quickview 300 PATA

drives.

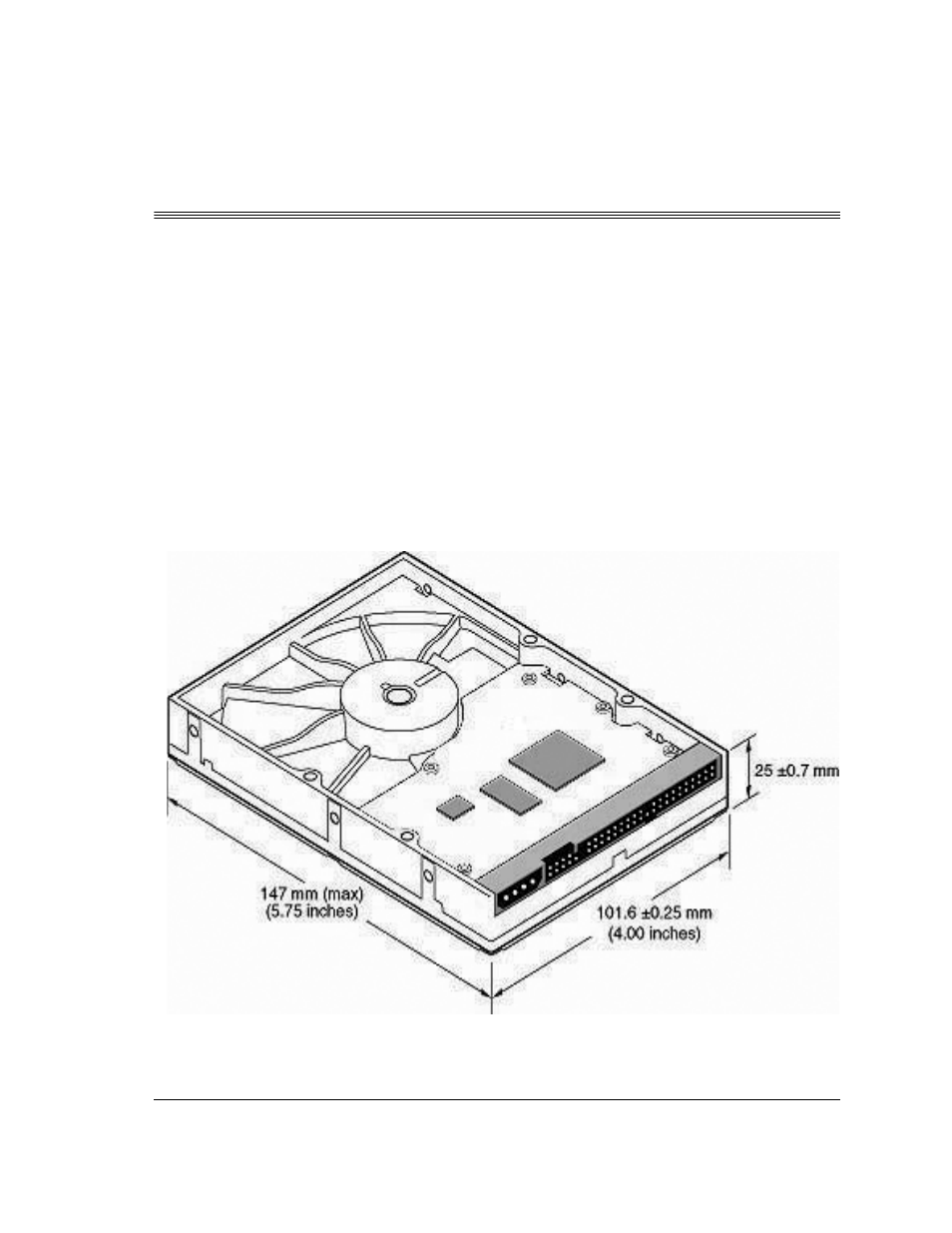

Figure 3-1

Mechanical Dimensions of Quickview 300 Hard Disk Drive
