Connecting the Box
Please follow the instructions here to place the AV box:
To attach the AV box to the unit
1. Precisely place the two chocks at the
lower surface of the AV box into the
lower slots in the correspondent position
in the projector.
2. Slowly push the box to fit the unit and,
meanwhile, insert the box plug into the
A/V connector closely.
3. Plug in the correct cord into the
correspondent jack or port to perform A/
V function.
4. Select inputs by pressing "Source"
key.

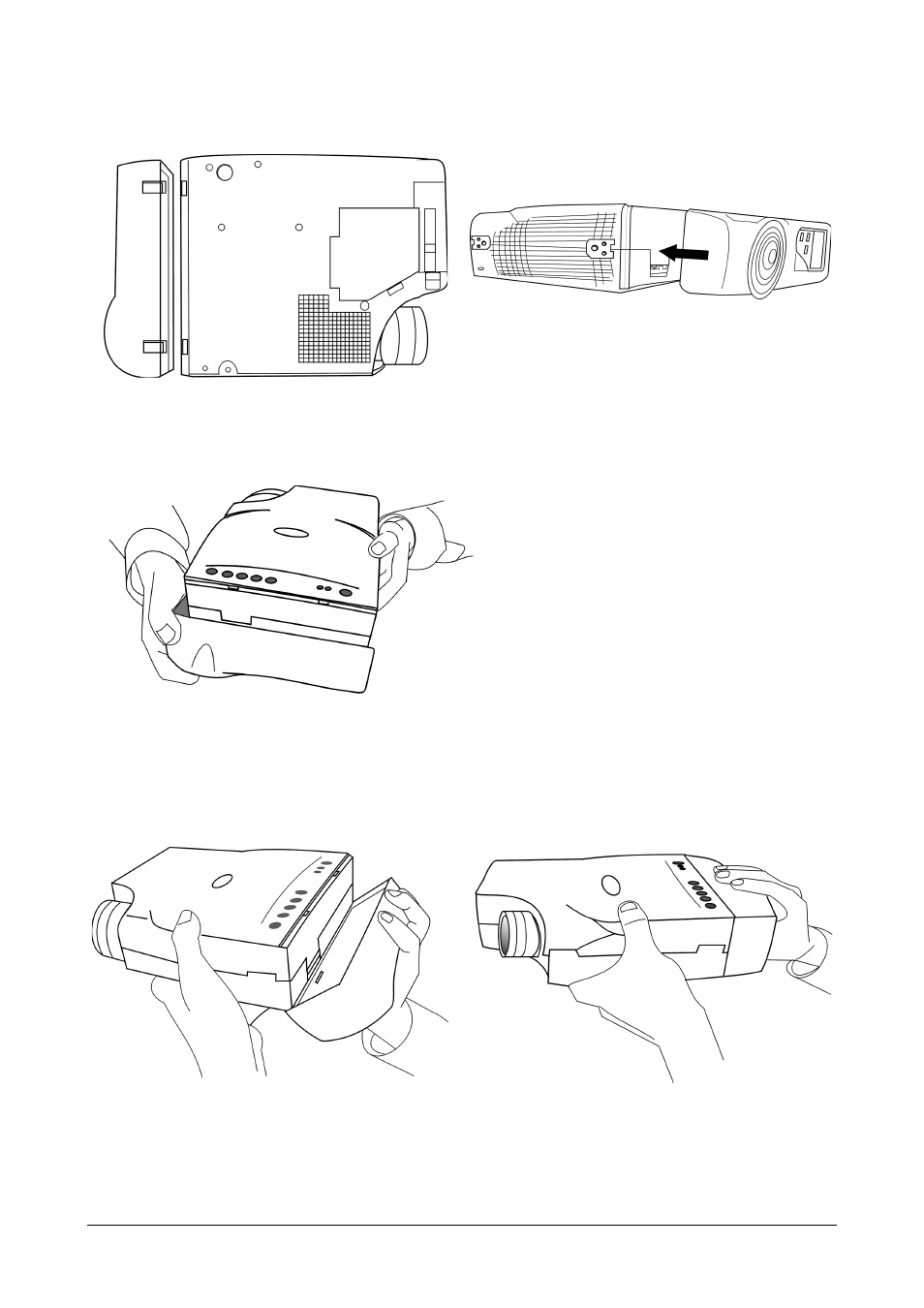

Figure 29 Connecting the Box
Figure 27 Bottom View of AV box
Figure 28 Side View of AV box
