Product Overview
The V-R563P-SDI has three independently controlled 5.6” active matrix LCD monitors. Each of the 5.6” panels
produces high-resolution images with 960 x 234 pixels. The V-R563P-SDI also has a unique feature that allows the
unit to tilt up or down for optimum viewing angle and installs into an EIA standard 19” rack. Each screen has one
composite video with active loop through and one SDI (SMTPE 259M) input with active loop through, active clock
recovery and automatic 75
Ω termination. There is also a money saving Digital to Analog conversion of each SDI
signal. Every display has a built-in color bar generator, 3 Tally indicators, individual front mounted selector buttons
with LED indicators and color, tint, brightness and contrast controls. The unit includes a universal voltage power
supply and features auto recognition for NTSC or PAL signals.
Features
Electrical Specifications
Display (Viewing Area) 5.6” diagonal (4.46” x 3.33”) (113.3 mm x 84.7mm)
Screen Aspect 4:3
Resolution (Dots) 960 pixel (320dot) W x 234H × 234V (225,000 pixels)
Dot Pitch 0.118mm(W) × 0.362mm (H)
Pixel Response Time 35ms typical
Brightness (in cd/m²) 300 cd/m²
Contrast Ratio 150:1
System PAL or NTSC with automatic detection. NTSC signal complies to SMPTE RS-170M
Inputs per display Composite BNC 75 Ω self terminating 0.7V to 1.3 V P-P.
SDI BNC 75 Ω self terminating with 500ft equalization.
3 Color Tally (15 pin D-Sub connection)
Outputs per display Active Composite loop through BNC.
Reclocked SDI loop through BNC.
10 bit Analog composite conversion of SDI signal BNC
Color Bar Signal Full field SMPTE
Power required 12 V D.C. from external power supply (included) max 3.0 AMP
Operating temperature 320 F to 1100 F (00 C to 450 C)
Mechanical Specification
Dimensions 19.125”W x 2.5”D x 5.25”H (120cm x 93cm x 25cm)
V-R682P Weight 5.0 lbs (2.27kg)
V-PS12-3.3A Power Supply Weight 1 lbs (0.454kg)
V-PS12-3.3A • Small Footprint – occupies only 3RU of a standard EIA 19 inch rack
• Ready to mount – all brackets are factory installed
• Lightweight - Save over 30 pounds when compared to similar CRT models
• All adjustments and selections are readily available. No menus!
• Easy to use front panel selection of inputs
• NTSC or Pal operation with automatic signal format detection
• Switched A/B Composite inputs with active loop out
• All inputs automatically terminate
• Built in color bar generator for each display
• Includes V-PS12-3.3A Universal power supply (U.L. class 2)
• Unique 180 degree tilt adjustment
• Dry erase label for each screen
Operational Setup
1. Unpack the V-R563P-SDI and accompanying V-PS12-3.3A power supply. Physically inspect for any dam-
age that may have occurred during shipping. Should there be any damage, immediately contact Marshall
Electronics at 800-800-6608. If you are not located within the continental united states call +1 310-333-0606.
2. After inspection, install in your desired location of a standard EIA 19-inch equipment rack. Adequate ventila-
tion is required when installed to prevent possible damage to the V-R563P-SDI internal components.
3. Connect required cables for signal input and output.
Please note that power must be applied to the V-R563P-SDI for all outputs to be activated.
All BNC connectors should be rated for 75 Ω.
4. Plug the V-PS12-3.3A power supply into the A.C. source
5. Attach twist lock power connection from V-PS12-3.3A power supply to the back of the unit.
6. Turn on the V-R563P-SDI by depressing the power switch located on the front of the unit.

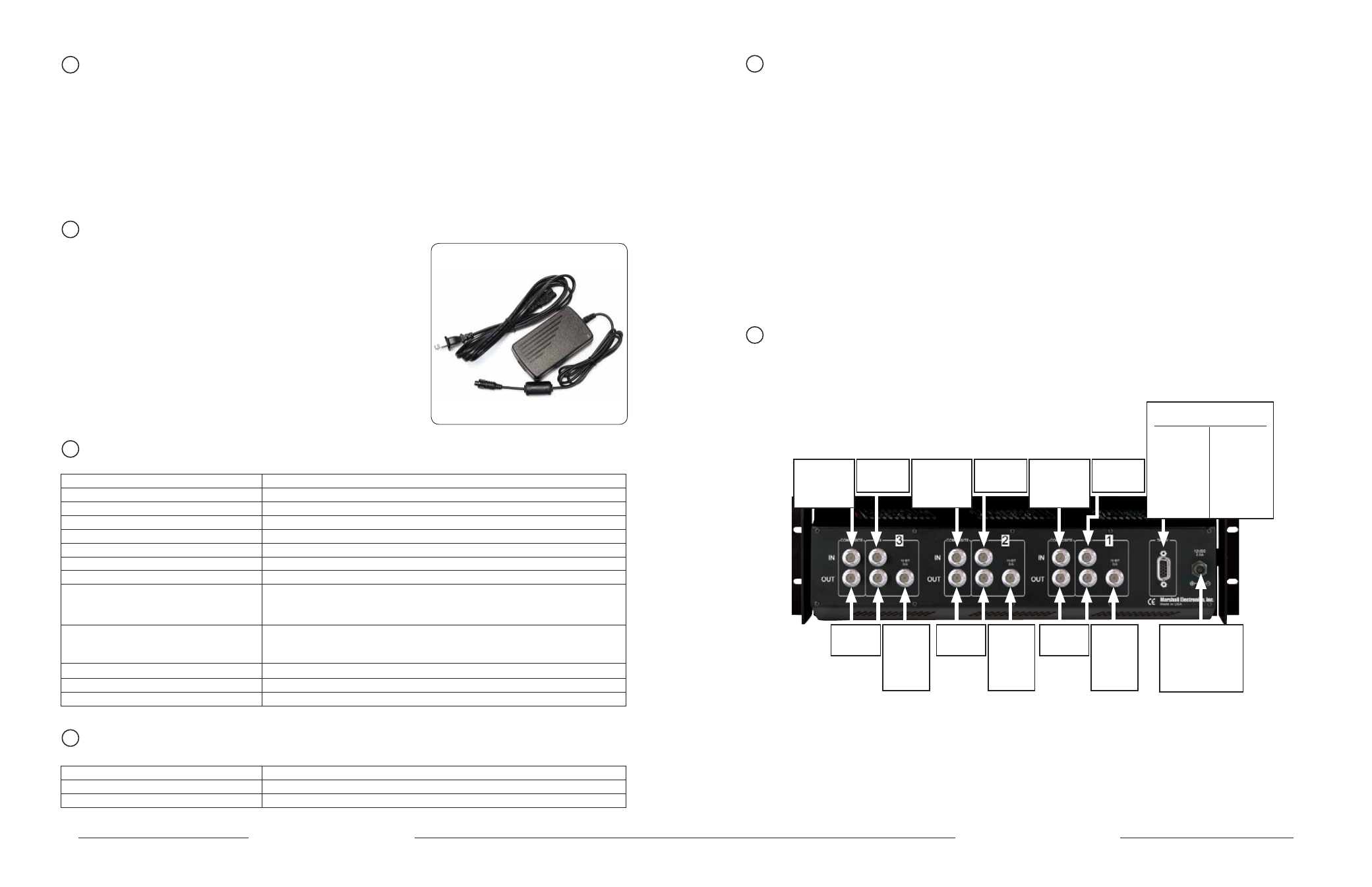

Connectors
* Composite Video Inputs comply to SMPTE-170M
* SDI inputs comply to SMPTE259M / ITU-R BT601
* Composite Video and SDI Outputs Require Power to be applied for activation
Monitor 3
Composite
Video In
Monitor 3
SDI In
2 3 V-R563P-SDI Users Guide Marshall Electronics
1
2
3
4
5
6
Monitor 2
Composite
Video In
Monitor 2
SDI In
Monitor 1
Composite
Video In
Monitor 1
SDI In
12 VDC from
V-PS12-3.3A
power supply
Left Pin - Pos
Right Pin- Neg
Tally IN
DB-15 Female
Pin1-M3Grn
Pin2-M3Red
Pin3-M3Yel
Pin4-Gnd
Pin5-Gnd
Pin6-M2Grn
Pin7-M2Red
Pin8-M2Yel Pin9-Gnd
Pin10-Gnd
Pin11-M1Grn
Pin12-M2Red
Pin13-M3Yel
Pin14-Gnd-
Pin15-Gnd
Analog
Output
converted
from SDI
Input
Active
Output
Analog
Output
converted
from SDI
Input
Active
Output
Analog
Output
converted
from SDI
Input
Active
Output
* Tally lamps active when connected to ground
