2 Model 6935FDWAE

Item

Part

No.

N o .

No.

Used

Description

Item

Part

No.

N o .

No.

Used

Description

1

183773-1

1

Housing Set (Includes Item 45)

3

266130-9

8

Tapping Screw Bind PT 3X16

4

266007-8

1

Tapping Screw Bind PT 3X10

5

416079-5

1

F/R Change Lever

6

638326-6

1

Switch Unit

7

263024-9

1

Rubber Pin 4

8

687085-9

1

Holder

9

654253-9

1

Spring Terminal (Plus)

10

654254-7

1

Spring Terminal (Minus)

11

231951-8

1

Ring Spring 11

12

267085-1

1

Flat Washer 12

13

233005-7

1

Compression Spring 13

14

324420-7

1

Sleeve

15

421847-3

1

Bumper

16

153808-2

1

Hammer Case Com

17

261108-7

1

Nylon Washer 14

18

216001-0

2

Steel Ball 3.5

19

324432-0

1

Anvil M

20

324359-4

1

Hammer

21

216001-0

24

Steel Ball 3.5

22

267175-0

1

Flat Washer 24

23

233381-9

1

Compression Spring 25

24

267766-7

1

Cup Washer 14

25

216011-7

2

Steel Ball 5.6

26

226336-1

2

Spur Gear 22

27

324220-5

1

Spindle

28

256253-1

2

Pin 5

29

267212-0

1

Flat Washer 12

30

257254-2

1

Ring 41

31

227112-6

1

Internal Gear 51

32

211150-8

1

Ball Bearing 6901ZZ

33

213620-3

1

O Ring 46

34

911516-9

4

P.H. Screw M4x12

35

317597-5

1

Internal Gear Case

36

638155-7

1

Yoke Unit

37

619134-4

1

Armature

38

638156-5

1

Endbell Com

39

193466-2

2

Carbon Brush CB-434 (2pcs/Set)

40

643933-2

2

Brush Holder Cap

41

689096-0

1

FET Spacer

42

266170-7

1

Tapping Screw ST3X8

43

266130-9

1

Tapping Screw Bind PT 3X16

44

313118-1

1

Stopper

45

819720-3

1

Makita Label

47

263024-9

1

Rubber Pin 4

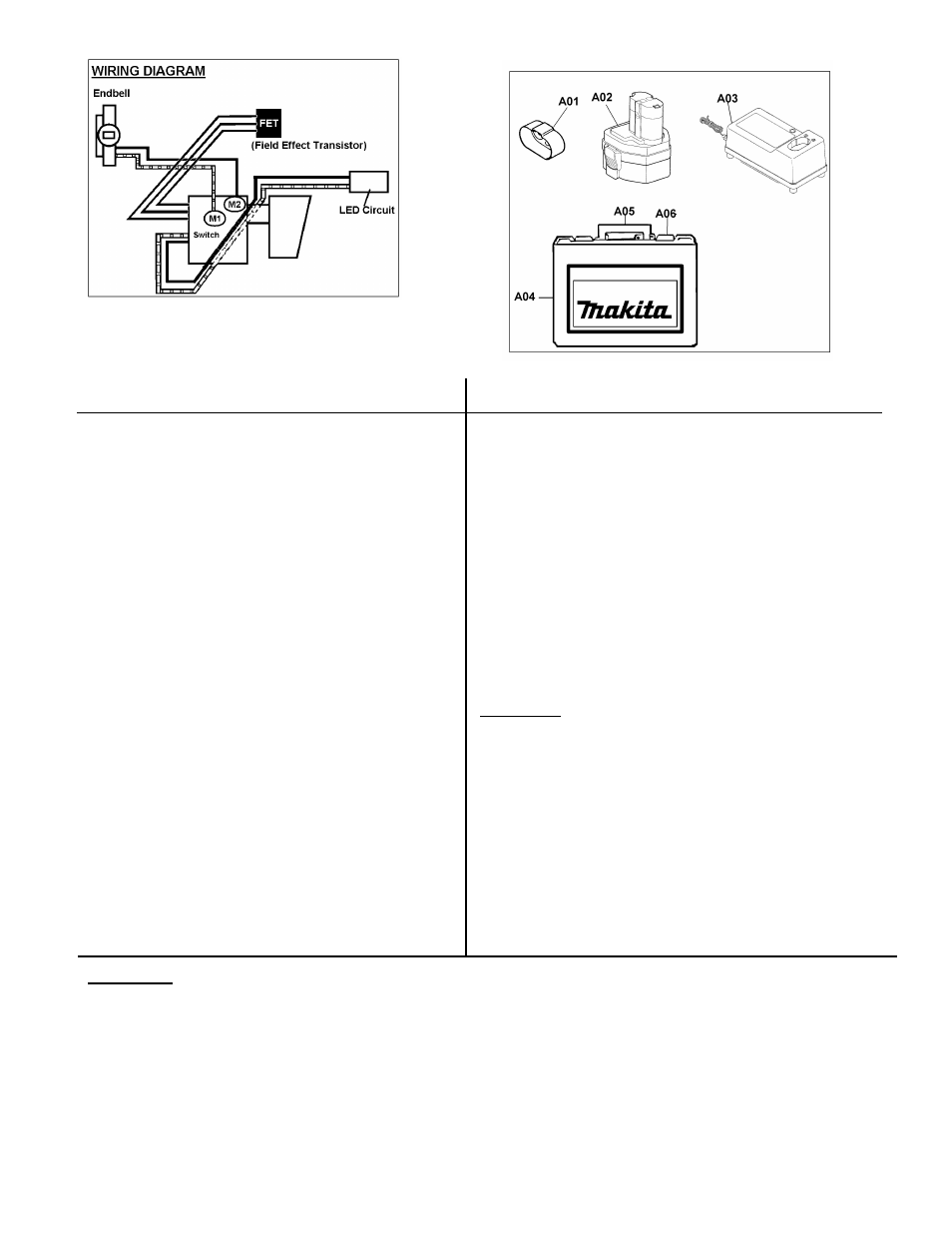

Accessories

A01

414938-7

1

Battery Cover

A02

192600-1

1

14.4V Ni-Cad Battery 1422 W/Clip
(2.0Ah) (For other Batteries,
See Catalogue)

A03

DC1414

1

Charger DC1414 for Ni-Cad &
Ni-MH 7.2V ~ 14.4V 1.3 ~ 3.0Ah
Batteries

A04

183763-4

1

Plastic Carrying Case
(Includes 324207-7 - Shaft &
Items A05 & A06)

A05

417723-7

1

Handle

A06

417724-5

2

Latch

Service Tools

042017-7A - Makita Grease N No. 2 100g (3.5oz)
1R045 - Gear Extractor, Large
