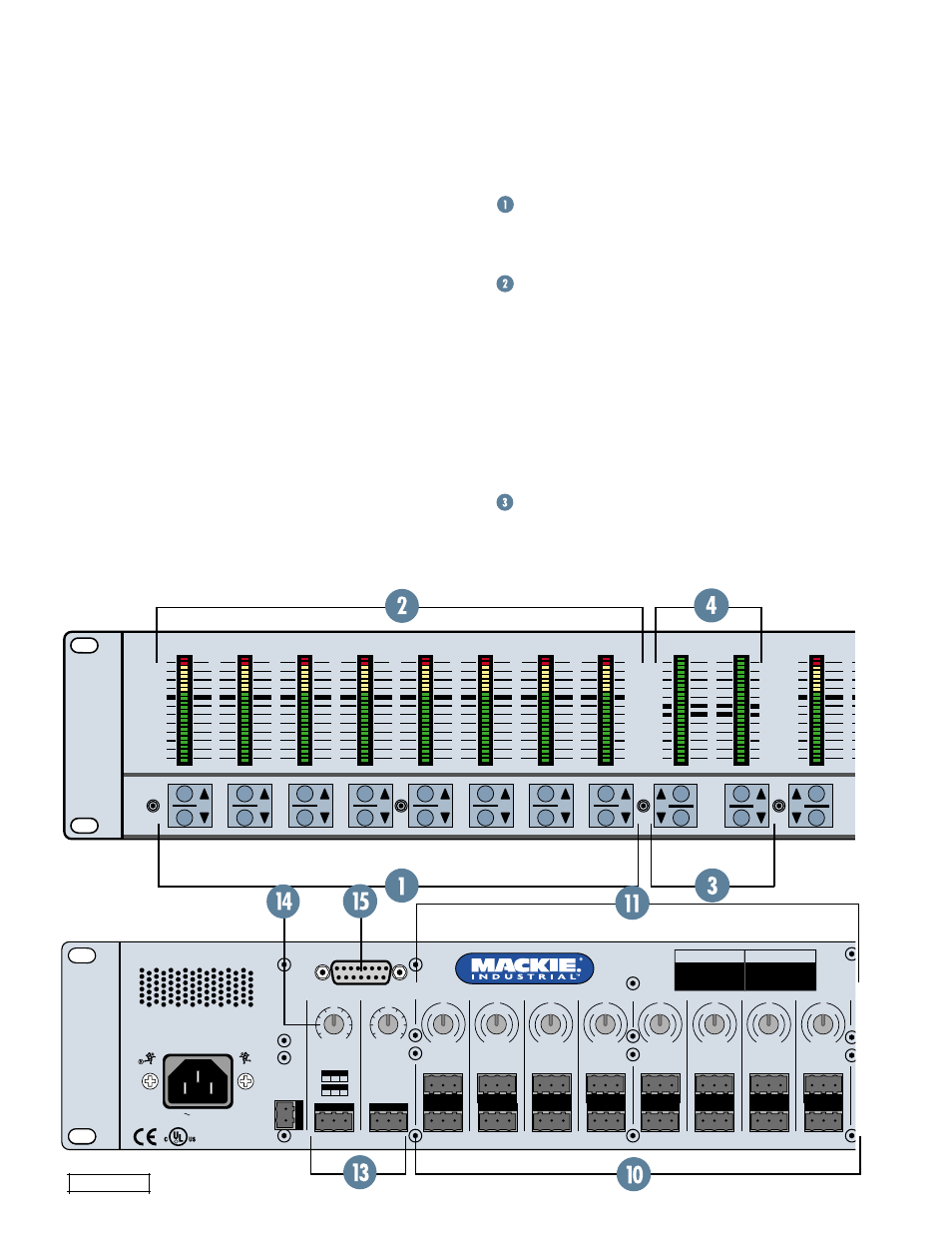

FRONT PANEL FEATURES
Note: The front panel controls only apply to the A
and B outputs. Outputs C through J are controlled
with the DX-10E-PC software interface.
INPUT UP/DOWN BUTTONS
Use these buttons to adjust the mix level for each
input channel.
INPUT LED DISPLAY
This indicates the signal level after the mic preamp
stage, just after the A/D converter, but prior to any
digital signal processing. When any input UP/
DOWN button is pressed, all the meters (except
EQ) switch from level metering to level setting
indication. After five seconds, the meters switch
back to normal peak program metering (PPM).
When the 10 and 7 LEDs are both lit, the gain is set
to unity (0 dB).
EQ LO/HI UP/DOWN BUTTONS
These buttons are disabled in the DX810 (they are
for DX8 use only).
•
2-band sweepable shelving EQ with a parametric
mid on each Input
•
Gating on each Input
•
31-band Graphic EQ on each Output
•
5-band Parametric EQ on each Output
•
Fully variable Compressor on each Input and
Output
•
Variable delay on each Output
•
Configurable crossover for up to five bands
•
10 Programmable Logic Inputs
•
10 Programmable Logic Outputs
•
2 independent RS-232 interface ports
•
48 VDC Phantom Power switch per input
•
24 VDC Backup Power input
•
Hardware Expansion Port accepts optional
modules
•
PC Software application included
