Item Part No.
No. No. Used Description
Item Part No.
No. No. Used Description
113 * 1 Table
115 664463-0 1 Cord W/Plug 2P-14-2.5M
116 682504-0 1 Cord Guard 10-85
117 265995-6 2 Tapping Screw 4x18
118 687052-4 1 Strain Relief
119 286202-4 4 Cap 20
120 150824-5 1 Base Com. (Includes 810917-7 -
Caution Label & 816776-7 - Bevel
Scale Label)
121 911344-2 4 P.H. Screw M6x25
122 253052-2 1 Flat Washer 12
123 654020-2 2 Garter Spring
124 654502-4 2 Connector Par Splice (Old 654553-7)
125 163024-8 1 Guide Plate
126 271401-1 1 Knob 32
127 253047-5 1 Flat Washer 6
129 257060-5 1 Ring 15.8
130 192693-8 1 Dado Flange Set (Includes Items
A, B, C & D shown in diagram below)
131 224333-1 1 Inner flange 53
132 224347-0 1 Outer Flange 53
133 252155-9 1 Hex Nut M12-19
134 344530-4 1 Hook Plate
135 266175-7 1 C.H. Square Neck Bolt M5x590
136 416342-6 1 Ruler Top
137 165205-0 1 Ruler
138 265391-8 2 Hex Bolt M6X16
139 316936-6 1 Rule Holder
140 251308-7 1 P.H. Screw M4X10
141 232175-9 1 Leaf Spring
142 344531-2 1 Pressure Plate
143 256258-1 1 Pin 6
144 256259-9 1 Pin 8
145 323739-1 1 Adjust Nut
146 344580-9 1 Cam
147 152490-4 1 Grip 36
148 233228-7 1 Compression Spring 10
200 654558-7 6 Insulated Connector
201 654180-0 5 Receptacle
Accessories
A01 122556-4 1 Ruler Assy (Rip Fence)(Includes
Items 134 - 148)
A02 781027-6 1 Wrench 19
A03 782021-1 1 Wrench 13-22
A04 783009-4 1 Holder Cap Opener
A05 - - - - - 1 8-1/4" C.T. Saw Blade
(See Catalogue for Details)
- - - - - 1 10" C.T. Saw Blade
(See Catalogue for Details)
A06 122555-6 1 Angle Rule Assy (Mitre Gauge)
(Includes Items 125 - 127)
A07 191686-A 1 Makita Safety Glasses
A08 STEX122275 1 Joint (For 406)
A09 191543-4 1 Dado Head Set (2702)
191794-9 1 Dado Head Set (2703)
A10 192680-7 1 Table Saw Stand (Old 122558-0)
A11 192797-6 1 Sub Table (R)
A12 192798-4 1 Sub Table (L)
A13 122731-A 1 Porta Table (Picture Not Available)
A14 224263-6 1 Dado Outer Flange (2702) (For
Dadoing 5/16”, 3/8”, 7/16” or ½”)
A15 257137-6 1-3 Ring 15 (2703) (For Dadoing) (For
Cutting groove ¼”, 5/16”, 3/8”, 7/16”,
Or ½”)
A16 317061-6 1 Dado Table Insert (Use with curttng
grooves 5/16”, 3/8”, 7/16” or ½”)
A17 192800-3 1 Joint 55 Set (For 410)
A18 416772-1 1 Push Stick
4 Model 2702
4 Model 2703
SERVICE NOTE

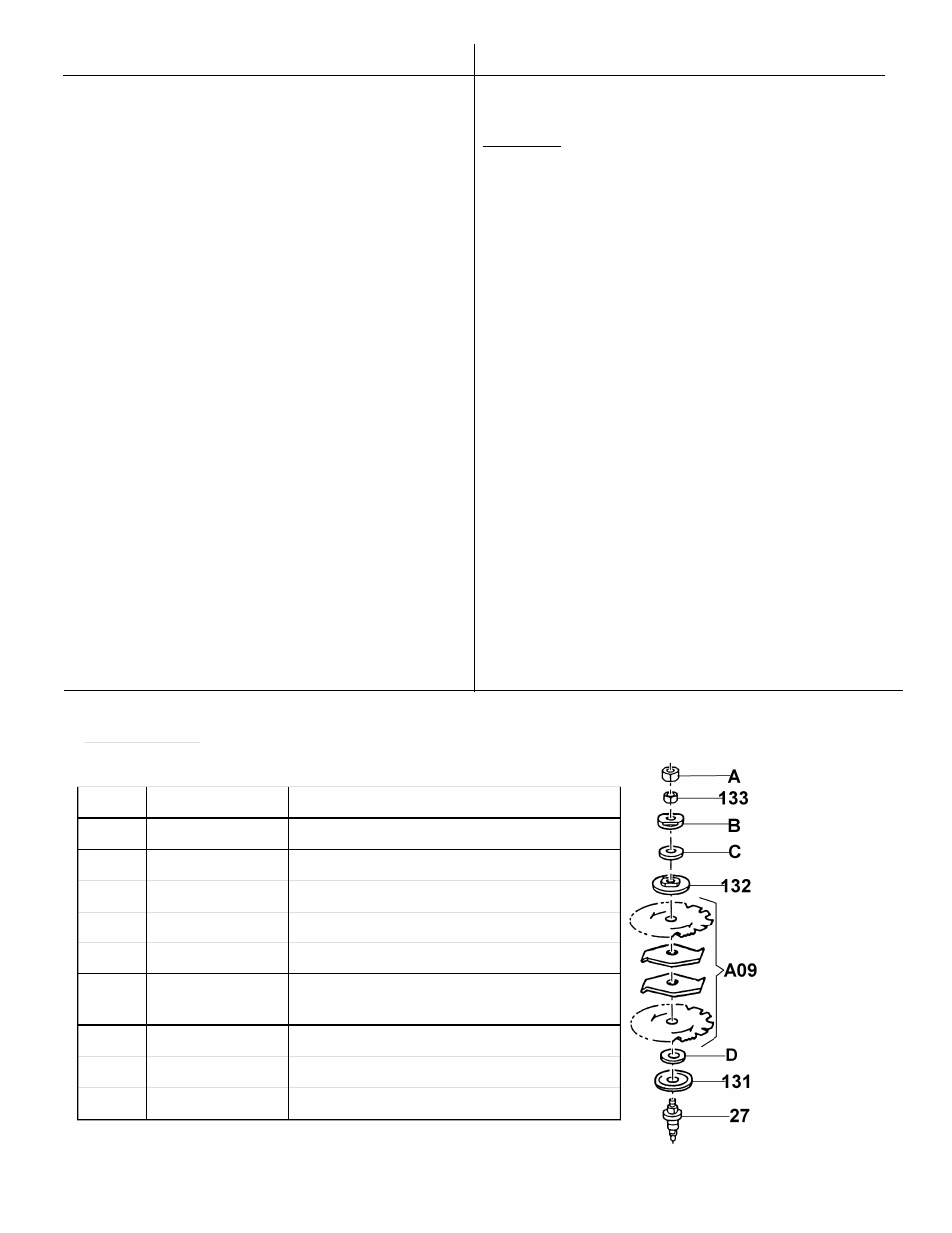

Instructions for installing the Dado Head Set please refer to the Instruction
Manual for this Tool.
Item No. Part No. Description
A 931603-8 Dado Hex Nut M12
133 252155-9 Hex Nut M12-19
B 224356-9 Dado Outer Flange 30
C 267183-1 Flat Washer 16
132 224347-0 Outer Flange 53
A09 191543-4 (2702)
191794-9 (2703) Dado Head Set
D 253723-1 Washer 16
131 224333-1 Inner Flange 53
27 153264-6 Spindle Com.
To receive Items A, B, C & D order Item 130 on the Breakdown.
* SEE SERVICE CHANGES
