Middleby Marshall PS740 Series Gas Ovens P/N 60250 - Manual (Page 17)

13 P/N 60250 September 28, 2012
IV. ASSEMBLY
A. Top Panel and Base Pad Assembly
1. Install the four leg extensions onto the base pad using
the 3/8″-16 × 1″ screws, 3/8″ flat washers, and
3/8″ lockwashers supplied in the Base Pad Kit. See
Figure 2-6. Check that the finished sides of each leg exten-
sion face OUTWARDS. One rear leg should be attached
using three 3/8″-16 × 1″ screws and the 3/4″ eyebolt, as
shown in Figure 2-6. This eyebolt acts as the anchor point
for the restraint cable assembly (see Part C, Restraint
Cable Installation).
2. If your oven is equipped with the lower shelf, position it
in place as shown in Figure 2-6. Check that the lip on the
shelf faces DOWN. Seal joint between leg and shelf with
NSF listed silicone.
3. Install one caster onto each leg extension, as shown in
Figure 2-7. Use the 3/8″-16 × 1″ screws, 3/8″ flat wash-
ers, and 3/8″ lockwashers supplied in the Installation Kit.
The locking casters should be installed at the FRONT of
the oven. The non-locking casters should be installed at
the REAR of the oven.
4. Install the lower oven cavity onto the base pad.
See Fig 2-7.
5. For single ovens ONLY:
Install the top panel using the screws included in the base
pad kit, as shown in Figure 2-8. Then, skip ahead to Part
C, Restraint Cable Installation.
For double or triple ovens:
Continue on to Part B, Stacking. Note that the top panel
should NOT be installed for double and triple ovens until
after stacking the oven cavities.

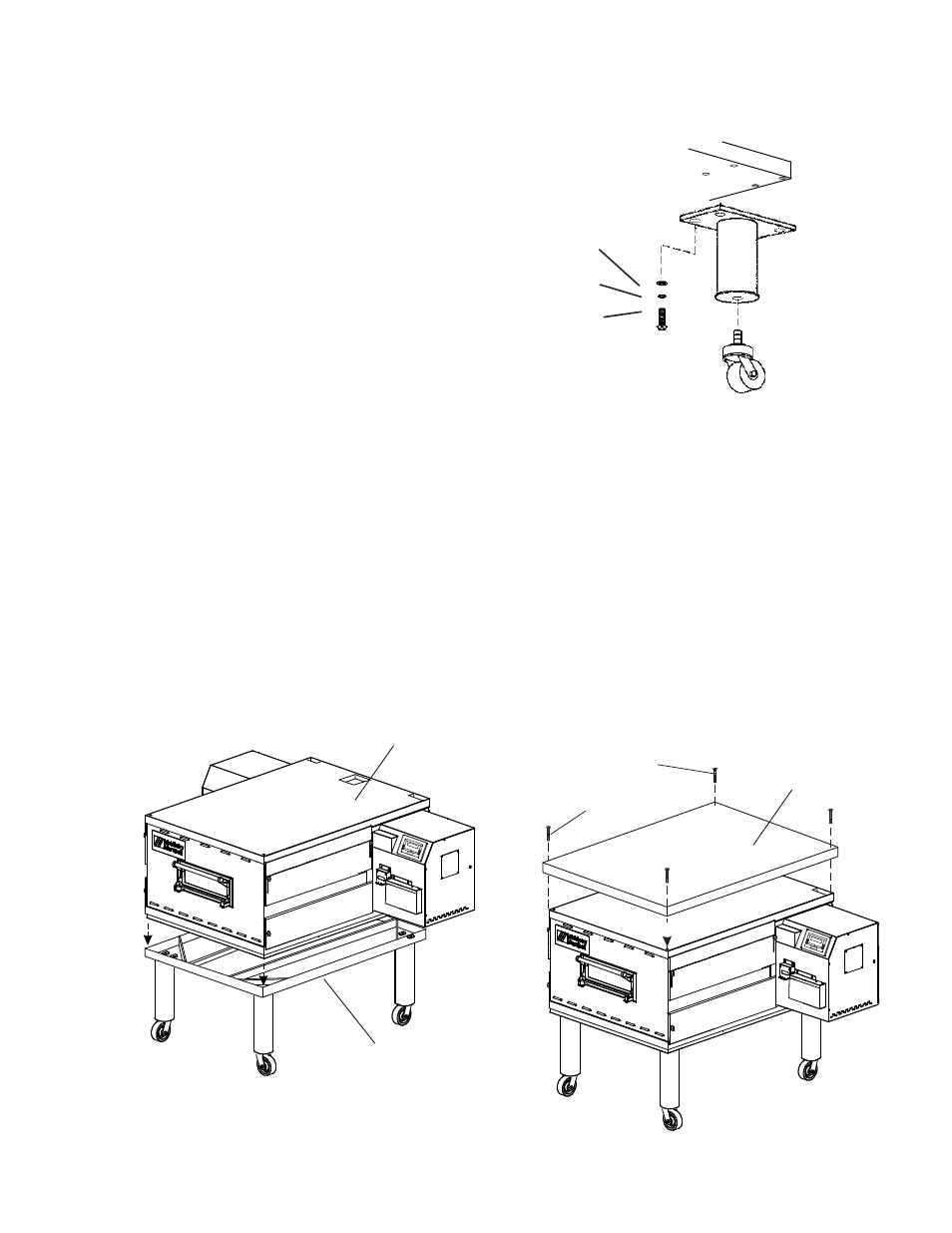

Figure 2-6. Leg extension and casters installation
Figure 2-7. Base pad Installation
Assembled�
base pad
Bottom oven�
cavity
#10-32 × 3/4″
screw length
Top
panel
Figure 2-8. Top panel installation
1/2″ flat
washer
1/2″ lock
washer
1/2″-13 × 1-1/4″
hex screw
#10-32 × 2-1/2″
screw length
