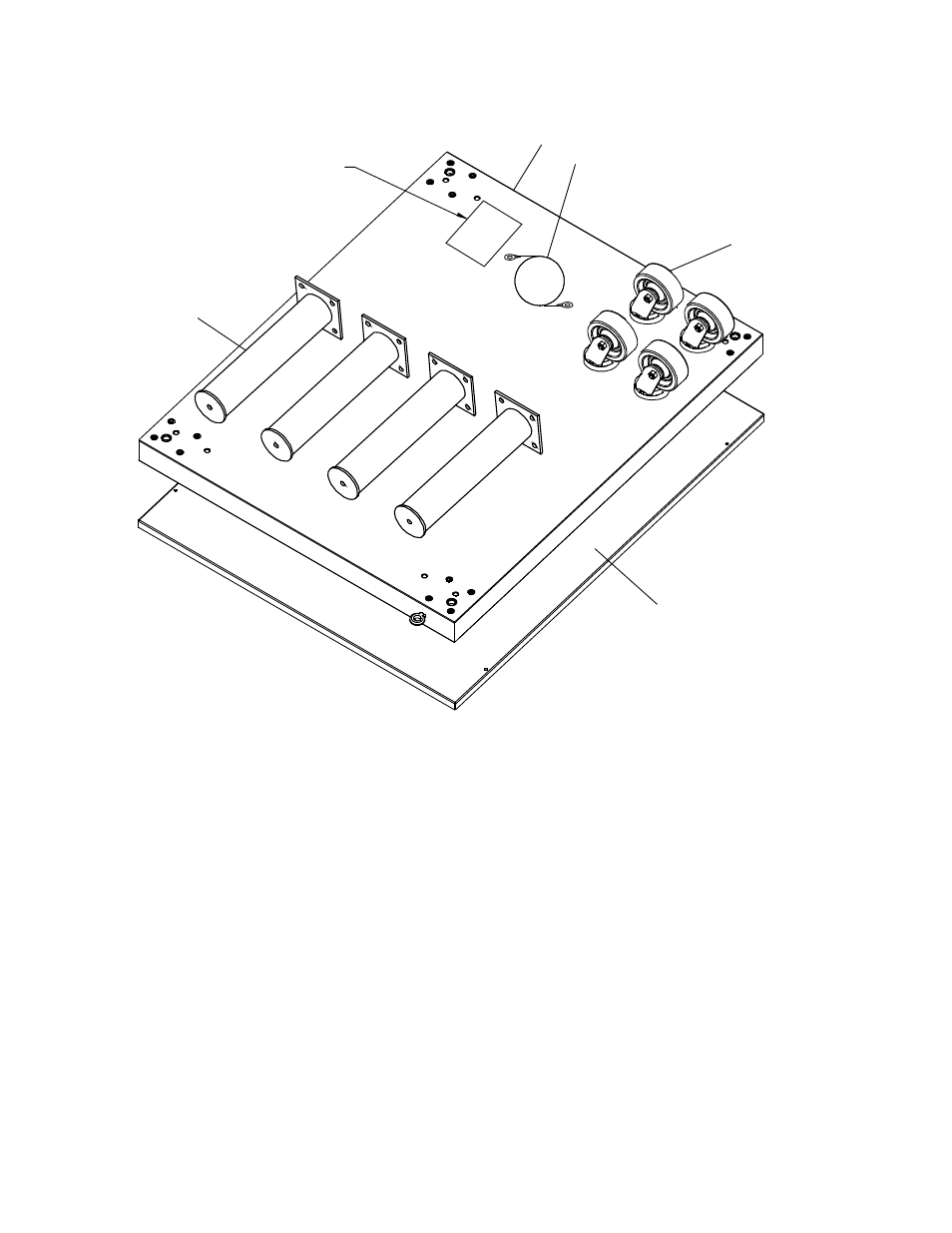

Figure 2-2A. Model PS740 24″ Single Oven
Option Base with Legs and Top
PARTS LIST FOR PS740 SERIES 24″ SINGLE OVEN OPTION - BASE w/15″ LEGS & TOP
P/N 67027
HARDWARE BAG
5, 6, 7, 10 & 11
1
2
4
9
8
ITEM NO. QTY PART NO. DESCRIPTION
1 1 64943 COMPLETE BASE WELDMENT
2 4 66851 TOP PLATE, LEG WELDMENT
4 4 58930 SWIVEL CASTER FLAT PLATE
5 32 2000531 3/8″-16 × 1″ HEX SCREW, SST
6 32 21416-0001 3/8″ FLAT WASHER, SS
7 32 21422-0001 3/8″ SPLIT LOCK WASHER, ZP
8 1 22450-0228 RESTRAINT CABLE ASSEMBLY
9 1 61125 TOP COVER
10 2 59677 SCR, MS SL TR HD 10-32 × 2-1/2″
11 2 7A2S15 SCR, MS STR TRSHD 10-32 Ч 3/4″
