CABLING
SUPPLIED INSTALLATION CABLE:
30’ 9-conductor 22 AWG control cable
30’ RG6 coaxial signal cable
MOUNT CABLING:
Mount comes pre-wired for two line
outputs
ENVIRONMENT
ON SATELLITE WIND OPERATIVE RANGE:
45 mph
STOWED WIND SURVIVABILITY:
140 mph
OPERATIONAL TEMPERATURE RANGE:
-40 Fº to 150 Fº
MAINTENANCE PORT
PROGRAM I/0:
Serial Interface for software upgrades
Optional program module available
upon request
MOTORS
MOVEMENT FUNCTION:
Elevation, Azimuth
MOTOR VOLTAGE:
12 volt 1.2 amp DC maximum draw at
search
REFLECTOR SPECIFICATIONS
MOVEMENT:
2 axis motor drive [elevation,
azimuth]
ANTENNA DIMENSIONS:
18” x 20” or
24” x 26.5” effective area (elliptical)
DIMENSIONS

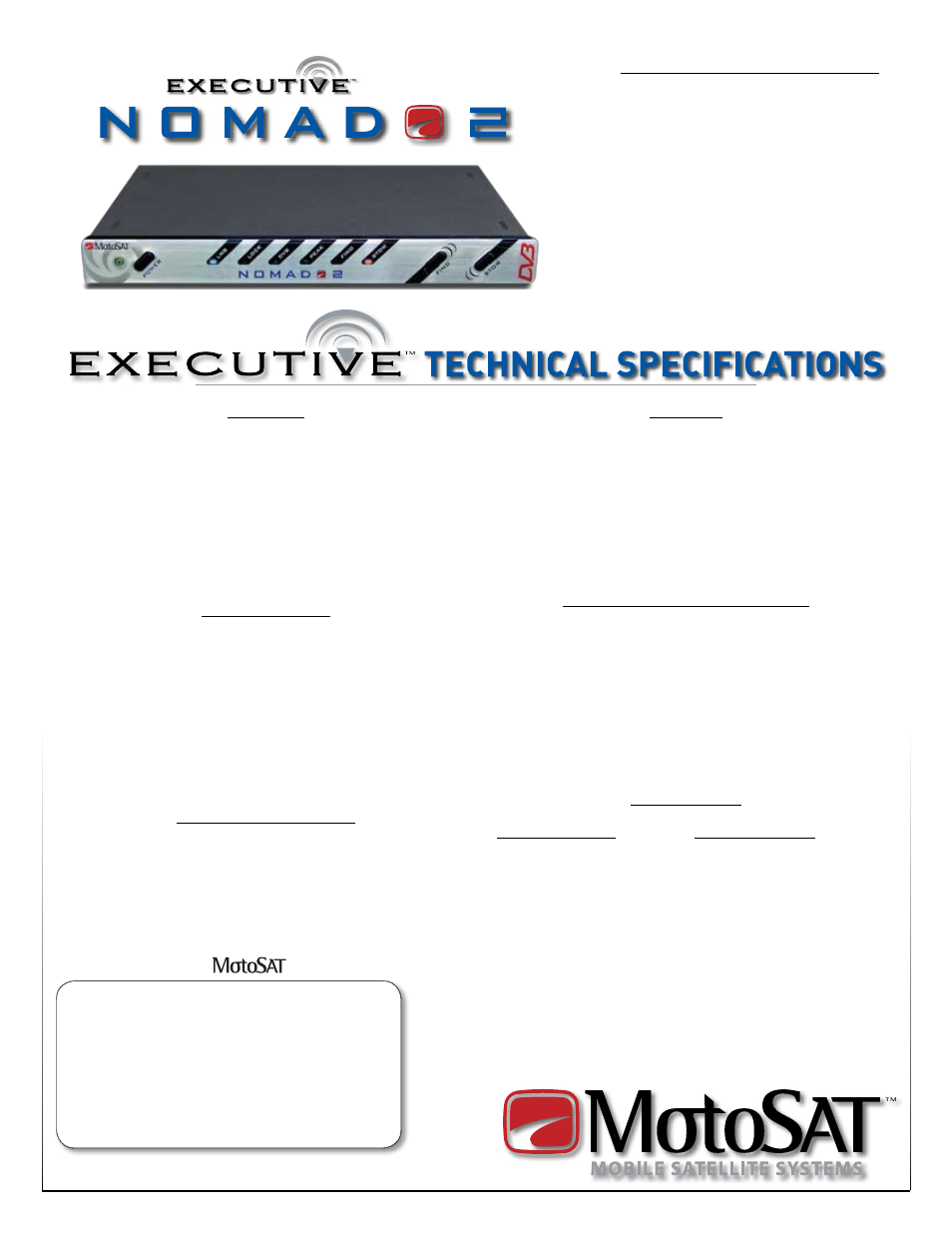

UNIVERSAL DVB CONTROLLER
INTERFACE:
Two-button “Find and Stow”
TUNER:
DVB [Digital Video Broadcast] Tuner
DIMENSIONS:
10” long, 7” wide, 1.25” tall
WEIGHT:
2.5 lbs.
CONTROLLER VOLTAGE:
12 volt 4 amp DC
Ask Your Local
Dealer:
THE
IS POWERED BY
18” DIMENSIONS
STOWED
10” tall, 19” wide, 35” long
WEIGHT
35 lbs.
24” DIMENSIONS
STOWED
10” tall, 25” wide, 38” long
WEIGHT
35 lbs
