Miller Electric DWF3 User Manual
Page 12
SECTION 2
INSTALLATION
OM-179 078
2-4

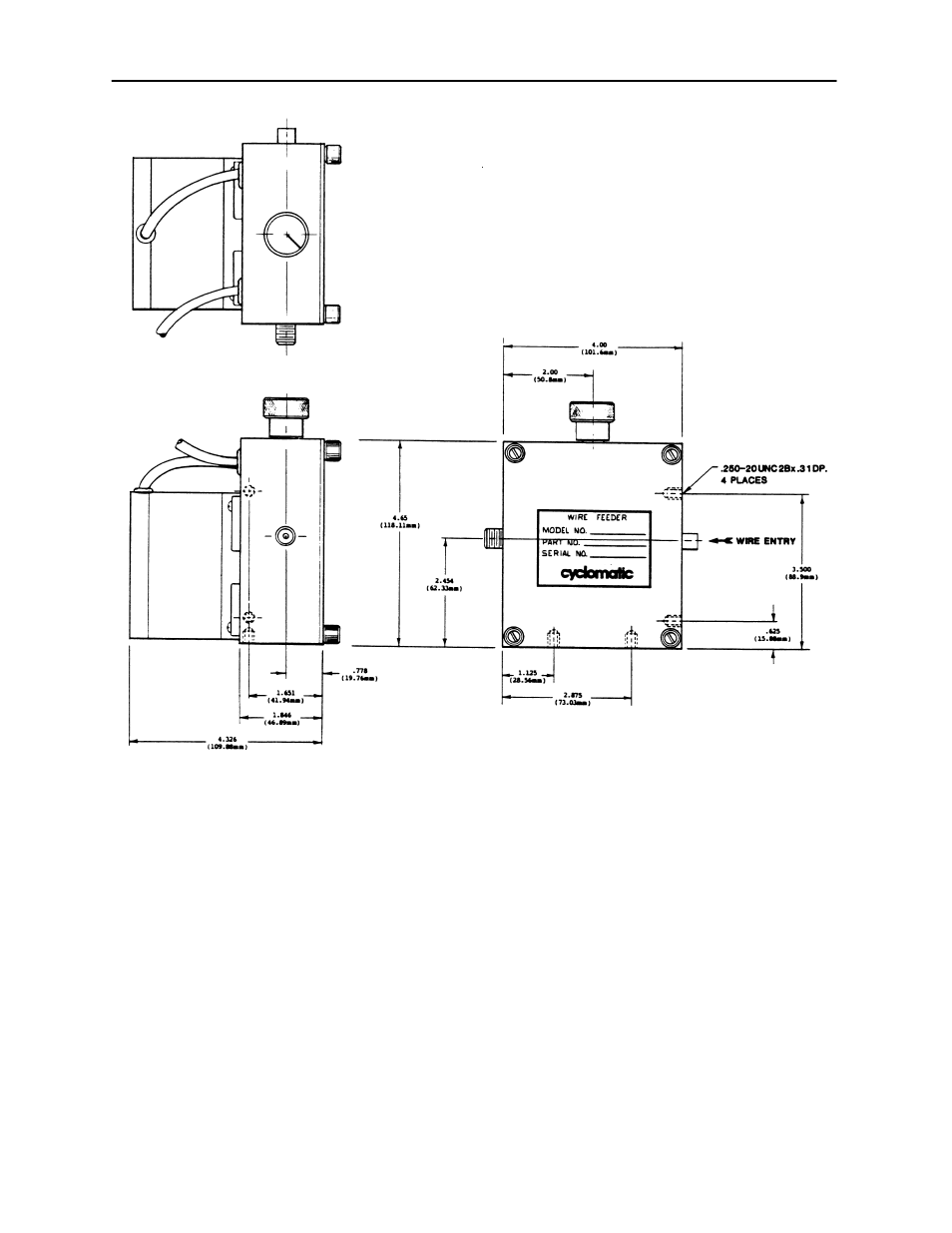

Figure 2.3, DRIVE UNIT OUTLINE
2.4
WIRE GUIDE MOUNTING
The guide mechanism portion of the wire guide assembly is made to accommodate a standard 1–3/8 in (34.9
mm) diameter machine torch barrel (see Figure 2.4). Guide tips are available for specific wire sizes from .020
in to .094 in diameter. The conduit, with proper liner is attached to both the wire drive exit guide and the wire
guide mechanism (see Table 1.1 for proper selection of these parts). Sharp bends in the conduit must be
avoided. If shorter conduit lengths are required, see Section 2.5.
