Appendix C. Setting Sync Mode
The XR2000 has the capability for fixed and agile sync. The default sync mode setting
is for agile sync which replicates the source sync polarity signals. However some
displays require a fixed sync polarity that is not possible to change at the video source.
The following details jumper settings to change the sync polarity of the horizontal and
vertical sync signals (Note that jumpers JP11 and JP12 have no affect in agile mode):

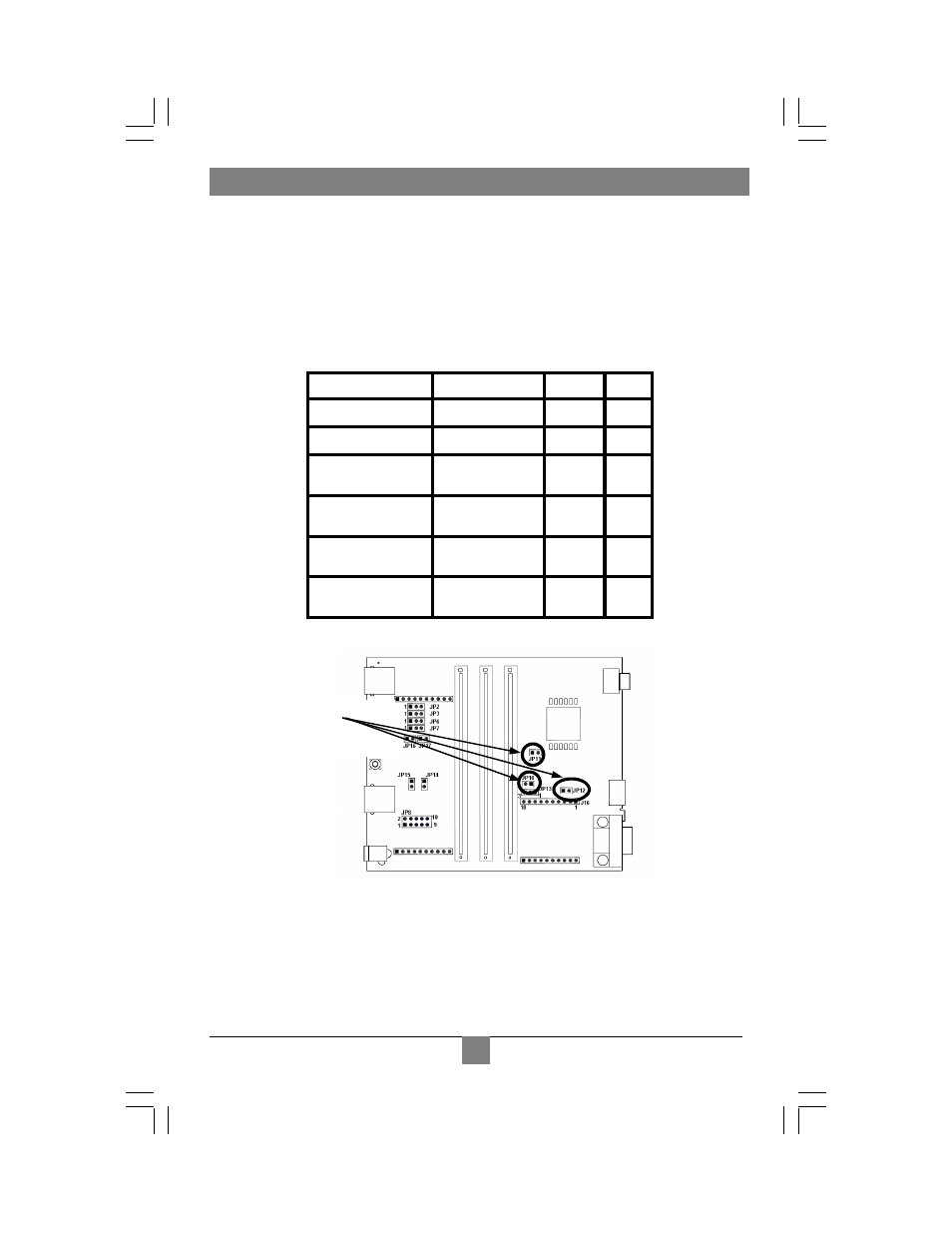

Sync Mode jumpers
JP10, JP11, JP12
Jumper Setting JP10 JP11 JP12
Fixed Sync IN - -
Agile Sync (default) OUT - -
Horizontal Sync
Positive
- IN -
Horizontal Sync
Negative
- OUT -
Vertical Sync
Negative
- - IN
Vertical Sync
Negative
- - OUT
